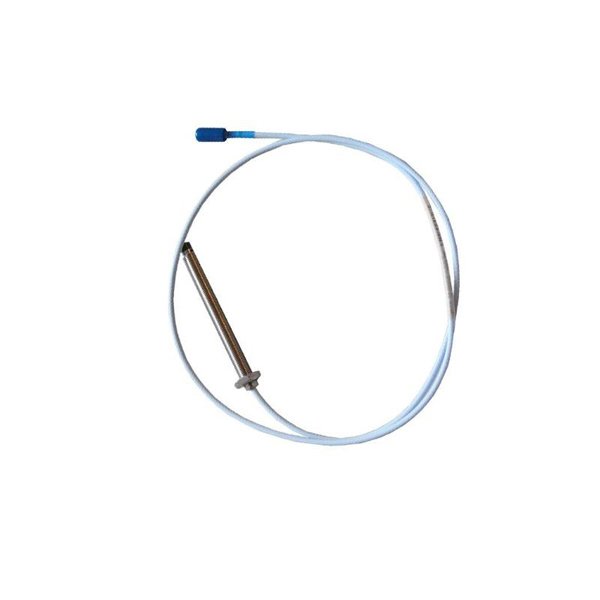

Bently Nevada 330103-00-04-50-01-00 3300 XL 8 mm Proximity Probe

The Bently Nevada 330103-00-04-50-01-00 is an 8 mm proximity probe in the 3300 XL series, engineered for high-precision, non-contact shaft vibration and displacement measurement in rotating machinery. Its extended 5-meter cable and miniature coaxial ClickLoc™ connector facilitate flexible installation in expansive or complex machine layouts. The probe combines a PPS tip with a stainless steel housing to deliver reliable performance in challenging industrial environments.

Product Specifications

Applications

• Vibration Monitoring: Enables early detection of radial and axial shaft vibrations to prevent mechanical failures.

• Shaft Position Measurement: Provides precise displacement data for alignment and balance optimization.

• Keyphasor® Pulse Output: Supplies accurate synchronization signals for control and protection systems.

• Harsh Environment Use: Designed for use in high-temperature, high-humidity, or contaminated industrial settings.

Product Advantages

• Exceptional Accuracy: Delivers reliable, repeatable non-contact vibration measurements.

• Robust Construction: Built for durability using high-grade materials.

• Seamless Integration: Fully compatible with Bently Nevada 3300 XL monitoring platforms.

• Industry Standard Compliance: Meets API 670 machinery protection requirements.

• Installation Flexibility: The 5 m cable allows for adaptable installation across varied machinery layouts.

FAQ

Q1: How do I set the correct probe-to-shaft gap?

A1: Use a standardized feeler gauge set to establish the recommended clearance between the tip and shaft during setup.

Q2: Can the probe handle rapid rotational changes?

A2: Yes, the probe maintains accuracy across the rated speed range for 3300 XL series systems.

Q3: Any tips for avoiding signal interference during installation?

A3: Route the cable away from electrical noise sources, ensure proper shielding and grounding, and maintain firm cable connections.

Q4: How do I test probe function after installation?

A4: Use the system’s self-test and verify Keyphasor® pulse and vibration signals for correctness.

Q5: Is the PPS tip compatible with different shaft materials?

A5: Yes, PPS is compatible with all standard target alloys used in the 3300 XL system.

Q6: Is there a quick way to confirm Keyphasor® output accuracy?

A6: Monitor signal timing under stable conditions and compare against known reference pulses.

Q7: Can the cable be extended beyond 5 m if needed?

A7: Longer cables may cause signal attenuation.

Q8: What error patterns suggest probe wear or failure?

A8: Irregular pulses, signal dropouts, or noise spikes typically indicate probe or cable degradation.

Q9: Does replacing the probe require system recalibration?

A9: No—3300 XL probes are designed for plug-and-play replacement without recalibration.

Q10: How do I deal with probe signal issues once installed?

A10: Check the mounting gap, cable integrity, grounding, and avoid route near electromagnetic interference.
