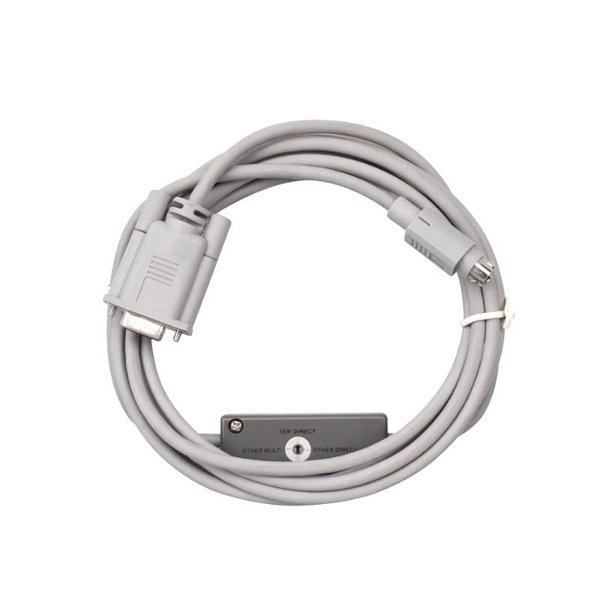

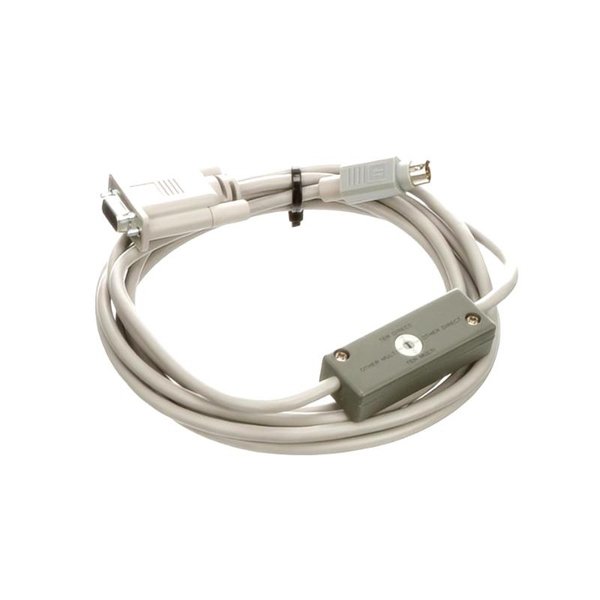

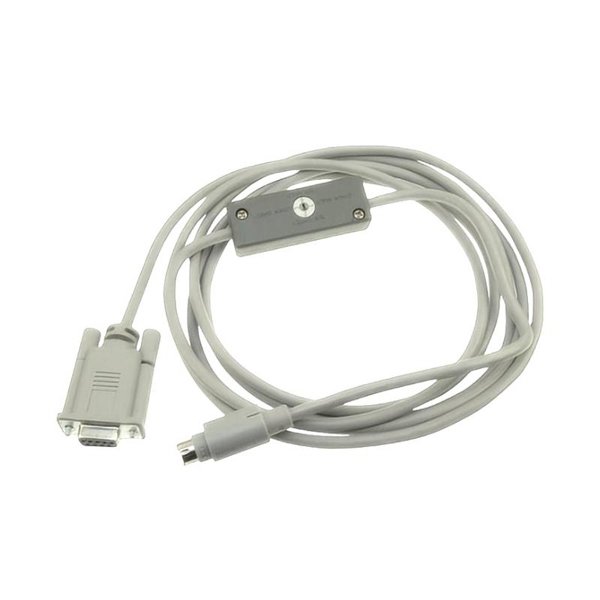

Schneider TSXPCX1031-C RS232 Connecting Cable For DTE Terminal Port

The Schneider TSXPCX1031-C is a dedicated RS232 connecting cable specifically designed for interfacing between a computer (DTE — Data Terminal Equipment) and Schneider Electric PLC terminals. This high-quality cable ensures reliable communication between automation devices and programming stations, enabling engineers to easily program, configure, and monitor Schneider PLC systems.

Optimized for use with Schneider’s Modicon TSX Micro, TSX Nano, and Twido series PLCs, the TSXPCX1031-C provides a robust and interference-resistant connection for field maintenance or on-site programming. The cable is constructed with durable materials and designed to withstand harsh industrial environments, offering flexibility, long service life, and superior signal integrity.

Product Specifications

Applications

The Schneider TSXPCX1031-C RS232 cable is widely used in the following applications:

• PLC Programming and Configuration: Connects a PC to Schneider PLC terminals for uploading/downloading programs and setting system parameters.

• System Diagnostics: Enables real-time monitoring, troubleshooting, and maintenance.

• Field Commissioning: Allows engineers to program or adjust PLCs on-site during installation and commissioning.

• Testing and Simulation: Useful for laboratory and development environments to test control logic.

• Data Logging: Facilitates connection of the PLC to third-party data acquisition software for historical data analysis.

• Maintenance Operations: Provides a reliable interface for periodic system checks and upgrades.

Advantages and Key Features

• Reliable Communication: Provides high-quality RS232 signal transmission with excellent noise immunity.

• Industrial Durability: Designed for tough factory environments with flexible and durable PVC insulation.

• Ease of Use: Plug-and-play interface with Schneider PLCs—no external power supply required.

• Wide Compatibility: Supports Schneider TSX Nano, Micro, and Twido PLC families.

• Optimized Length: 2.5 meters cable length ideal for both field use and workstation connections.

• Stable Connection: Double-shielded design ensures stable and secure data transmission.

• Certifications: CE and RoHS compliant, ensuring adherence to international safety standards.

• Compact and Portable: Lightweight and easy to transport for field engineers.

• Supports High Baud Rates: Communication speeds up to 115.2 Kbps.

• Cost-Effective: Affordable solution for reliable RS232-PLC connectivity.

Frequently Asked Questions (FAQ)

1. What PLC models is the TSXPCX1031-C compatible with?

   It supports Schneider TSX Nano, TSX Micro, and Twido series PLCs.

2. What is the length of the cable?

   The TSXPCX1031-C cable is 2.5 meters long.

3. Does this cable support high-speed data transmission?

   Yes, it supports speeds up to 115.2 Kbps.

4. Is the cable plug-and-play?

   Yes, no external power is required. It connects directly between the PC and the PLC.

5. Can this cable be used in industrial environments?

   Yes, it is built with industrial-grade PVC insulation and shielding for factory conditions.

6. What connectors are used on this cable?

   DB9 (PC side) to Mini-DIN 8-pin (PLC side).

7. Does this cable require special drivers?

   No special drivers are required beyond standard serial port configuration.

8. Can the cable be used with Windows-based programming software?

   Yes, it is compatible with Schneider programming tools like PL7, TwidoSuite, and Unity Pro.

9. What certifications does this cable have?

   It is CE marked and RoHS compliant.

10. What is the weight of the cable?

    It weighs 0.17 kg.
