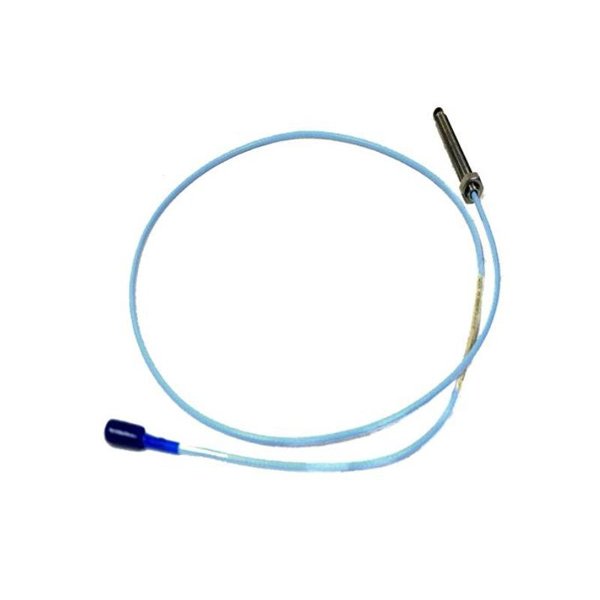

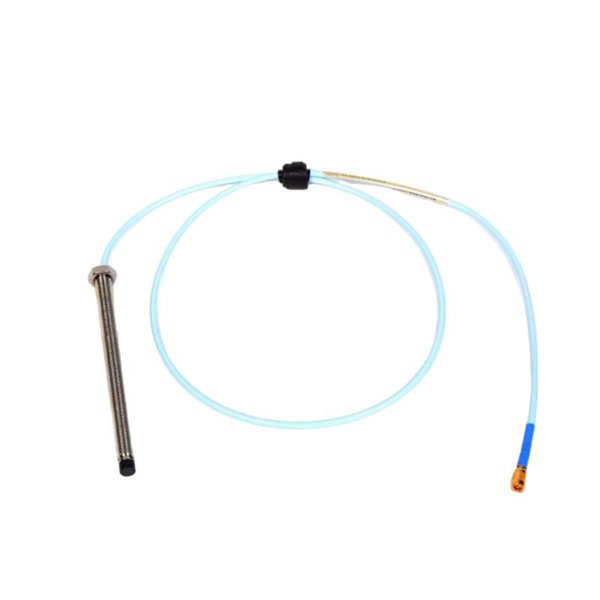

Bently Nevada 330103-17-22-10-12-05 3300 XL 8mm Proximity Probes

The Bently Nevada 330103-17-22-10-12-05 3300 XL 8mm Proximity Probe is a robust and precise sensor designed to monitor the vibration and displacement of rotating shafts in critical industrial machinery. Belonging to the trusted 3300 XL family, this probe is engineered for dependable performance in the most demanding environments. Its 8mm probe tip length provides an optimal sensing distance for accurate detection of shaft position and vibration, essential for machinery health monitoring and early fault detection.

Constructed with high-grade stainless steel and using eddy current sensing technology, the probe ensures long-term reliability and stability. Its design supports easy integration with Bently Nevada’s 3300 XL monitoring systems, enabling seamless condition monitoring across various industries.

Product Specifications

Applications

This proximity probe is widely used across industries that require precise shaft vibration and position monitoring, such as:

• Power Generation: Monitoring turbine and generator shafts to prevent catastrophic failures.

• Oil & Gas: Tracking shaft conditions in pumps, compressors, and drilling machinery.

• Aerospace: Monitoring rotary components in engines and critical systems.

• Manufacturing: Ensuring the health of high-speed spindles, gearboxes, and conveyors.

• Mining and Metals: Protecting crushers, mills, and conveyor belts in harsh environments.

• Chemical Processing: Safeguarding pumps and agitators used in continuous process plants.

Advantages

• High Precision: Advanced eddy current sensing offers accurate displacement and vibration measurements.

• Durability: Stainless steel housing resists corrosion and mechanical damage.

• Wide Temperature Range: Functions reliably in environments from -40°C to 120°C.

• System Compatibility: Fully compatible with Bently Nevada 3300 XL monitoring equipment.

• Easy to Install: Compact design and standardized connectors reduce installation time.

• Consistent Signal Output: Provides a stable AC voltage output for precise monitoring.

• Shock and Vibration Resistant: Designed to withstand harsh mechanical conditions.

• Flexible Cabling: Custom cable lengths available for tailored installation needs.

Frequently Asked Questions (FAQ)

1. What is the main function of the 330103-17-22-10-12-05 probe?

   It measures shaft vibration and displacement to help detect machinery issues early.

2. Is this probe compatible with Bently Nevada’s 3300 XL system?

   Yes, it integrates seamlessly with the 3300 XL system modules.

3. What type of signal output does the probe provide?

   It outputs an AC voltage signal proportional to shaft movement.

4. Can the total length be customized?

   Yes, the standard total length is 1 meter, but custom lengths can be ordered.

5. What temperature range does the probe operate in?

   It operates effectively between -40°C and 120°C.

6. Does the probe require external power?

   No external power is needed as the probe uses eddy current technology.

7. How often should the probe be inspected or calibrated?

   Routine inspections and annual calibration are recommended for optimal performance.

8. Is the probe suitable for high-speed shafts?

   Yes, it is designed for high-speed rotating machinery.

9. What happens if the cable is damaged?

   Damaged cables should be replaced immediately to maintain signal accuracy.

10. Can this probe help detect shaft misalignment?

    Yes, by monitoring displacement and vibration patterns, it can identify misalignment.
