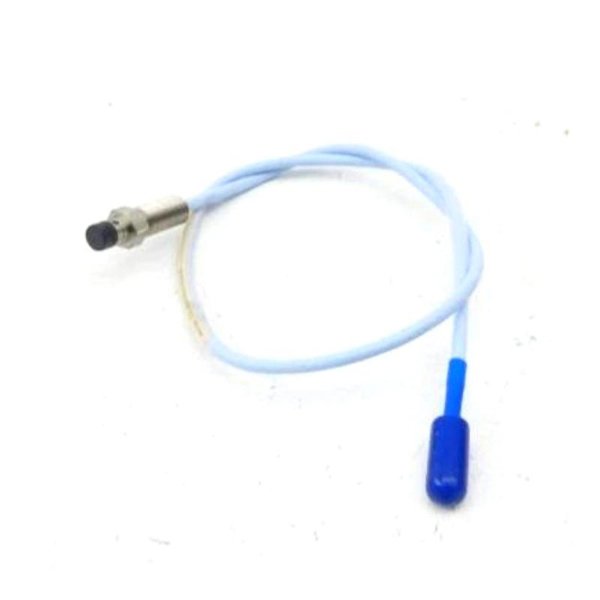

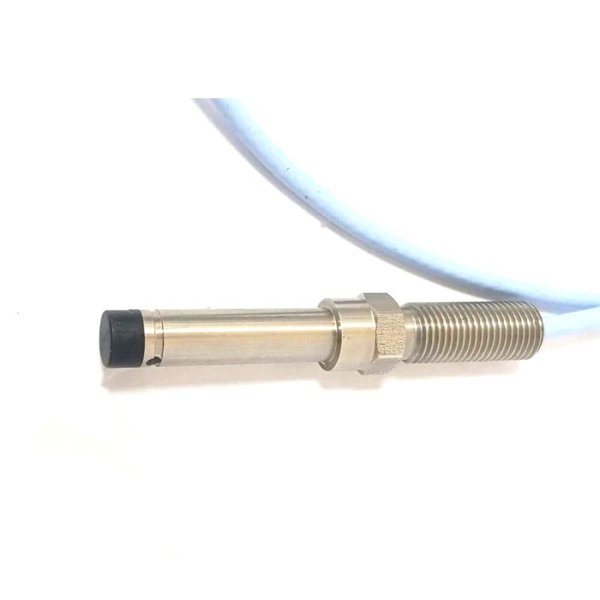

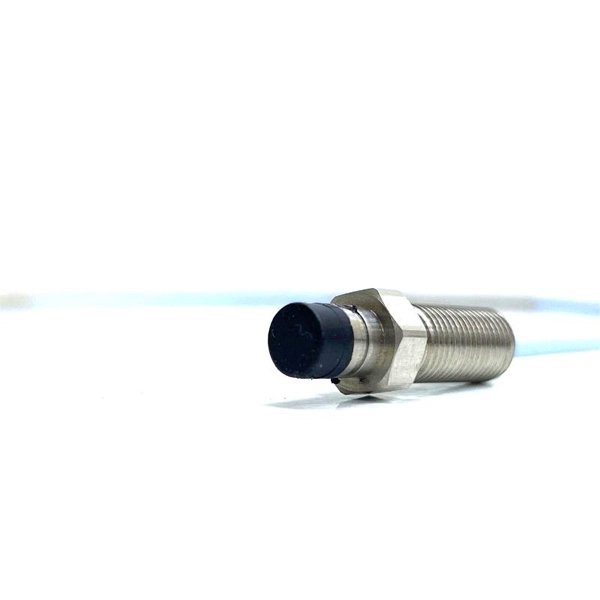

Bently Nevada 330105-XX-XX-05-02-CN 179607-01 3300 XL 8 mm Reverse Mount Probe
Manufacturer:Bently Nevada
Product Number:330105-XX-XX-05-02-CN 179607-01
Product Type:3300 XL 8 mm Reverse Mount Probe
Origin:USA
Total Length:0.5 meter
Weight:0.162 kg
Views:38
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330105 3300 XL 8 mm Reverse Mount Probe is designed for non-contact vibration and position measurements in critical machinery. It is a key component of the 3300 XL proximity transducer system and ensures precise monitoring in harsh industrial environments. Its reverse-mount design enhances installation flexibility in constrained spaces.
Key Applications
-
Keyphasor™ reference and speed detection
-
Turbomachinery with fluid-film bearings
Product Advantages
-
Reverse mount design simplifies tight-space installations
-
Robust TipLoc® and CableLoc® technologies ensure mechanical durability
-
Compatible with standard 3300 XL Proximitor Sensor
-
ClickLoc® connectors offer secure, tool-free installation
-
Available with optional FluidLoc® cable to prevent fluid leakage
-
Extended temperature range option up to 218°C (425°F)
Technical Specifications
| Parameter | Specification |
|---|---|
| Probe Type | 3300 XL 8 mm Reverse Mount |
| Part Number | 330105-XX-XX-05-02-CN |
| Sensing Principle | Eddy current, non-contact |
| Total Length | 0.5 meter |
| Weight | 0.162 kg |
| Tip Material | PPS (Polyphenylene Sulfide) |
| Case Material | Stainless Steel (AISI 303/304) |
| Cable Type | Triaxial, 75Ω FEP insulated |
| Mounting Thread | 3/8-24 UNF (Standard) |
| Connector Type | Miniature coaxial ClickLoc |
| Operating Temperature | -52°C to +177°C (Standard) |
| Extended Temp Range | Up to +218°C (Probe tip), +260°C (Cable) |
| Pressure Sealing | Viton O-ring (not pre-pressure tested) |
| Minimum Target Diameter | 15.2 mm (0.6 in) |
| Minimum Shaft Diameter | 50.8 mm (2 in), recommended 76.2 mm |
Frequently Asked Questions (FAQ)
Q1: What is the main function of the 330105 Reverse Mount Probe?
A1: It measures shaft vibration and position in rotating machinery using non-contact eddy current technology.
Q2: Can the 330105 be used in high-temperature environments?
A2: Yes, it supports temperatures up to 218°C with the extended temperature option.
Q3: What is the advantage of the reverse mount design?
A3: It allows installation from the back of the mounting surface, useful in space-limited areas.
Q4: Is the probe interchangeable with non-XL 3300 series components?
A4: Yes, it is electrically and physically compatible with non-XL 5 mm and 8 mm systems.
Q5: Does the probe require special tools for installation?
A5: No, ClickLoc connectors enable tool-free finger-tight installation.
Q6: What is the total system length supported?
A6: Probe lengths range from 0.5 m to 9 m, matched with extension cables and Proximitor sensors.
Q7: Is the probe fluid-sealed?
A7: Yes, a Viton O-ring seals pressure; FluidLoc cable is also available to prevent fluid leakage.
Q8: Can this probe be used in hazardous environments?
A8: Yes, it has CSA, ATEX, and IECEx approvals for use in classified hazardous areas.
Q9: What are the compatible shaft size requirements?
A9: Minimum 50.8 mm (2 in), but ≥76.2 mm is recommended for optimal accuracy.
Q10: Is the 330105 probe compatible with both panel and DIN-rail mounted Proximitor sensors?
A10: Yes, the 330105 probe is fully compatible with 3300 XL Proximitor Sensors in both panel-mount and DIN-rail configurations, ensuring flexible installation.
