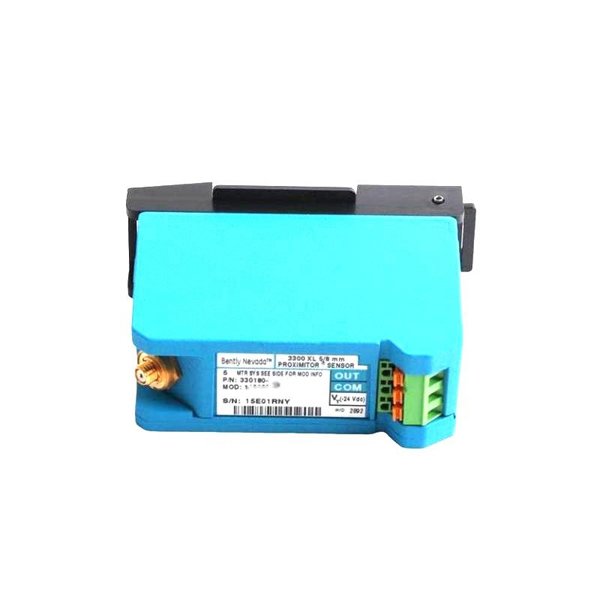

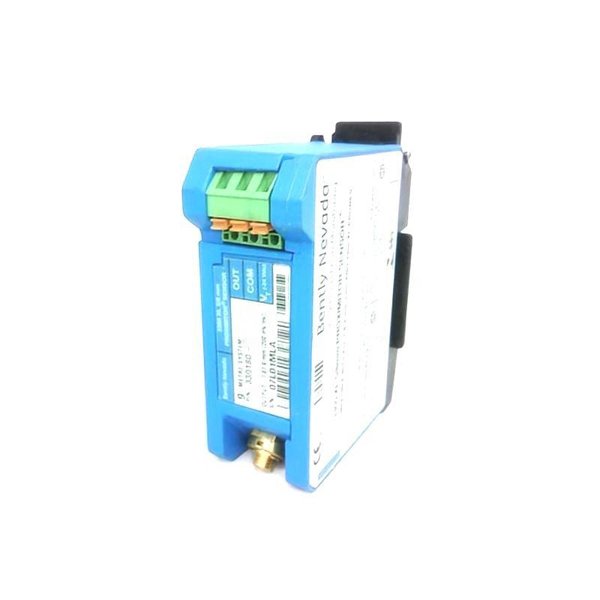

Bently Nevada 330180-X1-05 145004-67 3300 XL Proximitor Sensor
Manufacturer:Bently Nevada
Product Number:330180-X1-05 145004-67
Product Type:3300 XL Proximitor Sensor
Origin:USA
Dimensions:81.3 x 35.1 x 63.5 mm
Weight:0.246 kg
Views:41
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330180-X1-05 145004-67 3300 XL Proximitor Sensor is part of the 3300 XL 8 mm Proximity Transducer System, designed for precise measurement of shaft vibration and position in fluid-film bearing machines. It offers high linearity, compliance with API 670 standards, and excellent immunity to RFI/EMI interference, making it suitable for industrial and hazardous environments. Its modular design ensures full interchangeability with other 3300 XL 8 mm system components.
Technical Specifications
| Parameter | Value |
|---|---|
| System Type | 3300 XL 8 mm Proximitor Sensor |
| Model Number | 330180-X1-05 |
| Compliance | API 670, CE, SIL 2/3 |
| Input | One non-contacting 3300 series 5 mm or 8 mm probe and extension cable |
| Power Supply | -17.5 Vdc to -26 Vdc |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap | 1.27 mm (50 mils), -9 Vdc |
| Scale Factor | 7.87 V/mm (200 mV/mil) ±5% |
| Frequency Response | 0 to 10 kHz, +0/-3 dB |
| Operating Temperature | -52°C to +100°C (Sensor) |
| Storage Temperature | -52°C to +105°C |
| Dimensions (L x W x H) | 81.3 x 35.1 x 63.5 mm |
| Weight | 0.246 kg |
| Mounting | Panel mount or DIN rail mount |
| Material | A308 aluminum housing, gold-plated connectors |
| Hazardous Area Approval | CSA, ATEX, IECEx |
Applications
-
Monitoring shaft vibration and position in turbines, compressors, pumps, and motors
-
Keyphasor® reference and speed measurements
-
Condition monitoring in power generation, oil & gas, and process industries
-
Use in hazardous and high-EMI environments
-
API 670-compliant protection systems
Advantages
-
High immunity to RFI/EMI, ensuring signal stability
-
Full compliance with API 670 mechanical and electrical requirements
-
SpringLoc terminal strips for quick, tool-free wiring
-
Backward compatibility with older 3300 series probes and cables
-
Rugged design with improved environmental protection
-
Flexible mounting options (DIN rail or panel mount)
FAQ
Q1: What is the primary function of the 330180-X1-05 Proximitor Sensor?
A1: It measures shaft position and vibration for machinery protection and condition monitoring.
Q2: Is it compatible with older Bently Nevada probes?
A2: Yes, it is backward compatible with non-XL 3300 series 5 mm and 8 mm probes and cables.
Q3: Can it be used in hazardous environments?
A3: Yes, it has CSA, ATEX, and IECEx approvals for hazardous area applications.
Q4: Does it comply with API 670?
A4: Yes, it meets API 670 standards for mechanical configuration, linear range, and accuracy.
Q5: What is the recommended probe gap setting?
A5: 1.27 mm (50 mils) corresponding to -9 Vdc.
Q6: What is its scale factor?
A6: 7.87 V/mm (200 mV/mil) ±5% for standard systems.
Q7: What are its operating temperature limits?
A7: -52°C to +100°C for the sensor body.
Q8: Does it require special tools for wiring?
A8: No, it uses SpringLoc terminal strips that allow tool-free installation.
Q9: What materials are used in the housing?
A9: The sensor housing is made from A308 aluminum with gold-plated connectors.
Q10: Can it be DIN-rail mounted?
A10: Yes, it supports both DIN-rail and panel mounting options.
