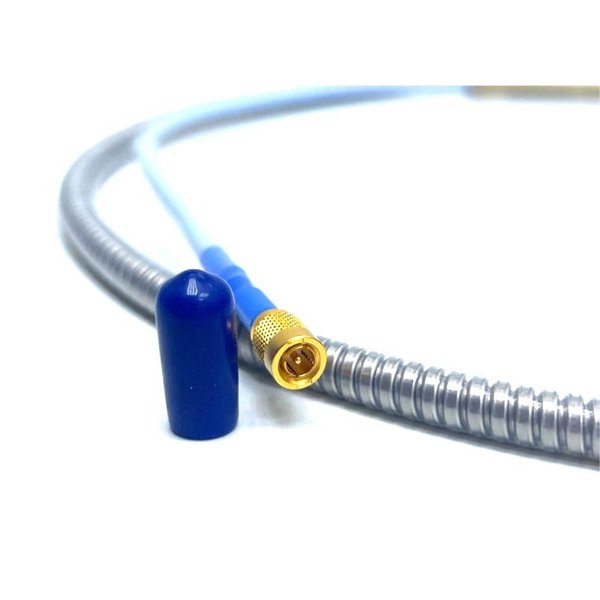

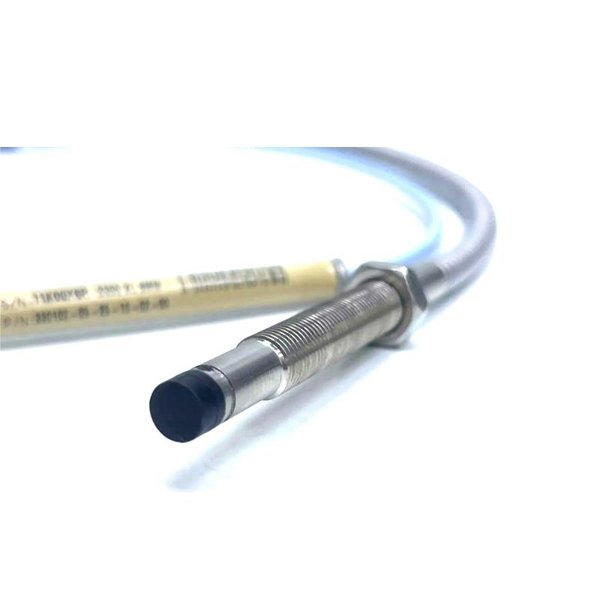

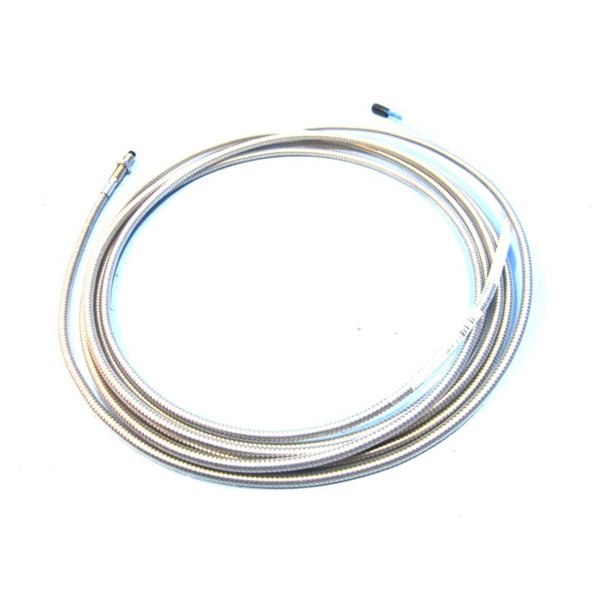

Bently Nevada 330102-00-20-50-02 3300 XL 8 mm Proximity Probe
Manufacturer:Bently Nevada
Product Number:330102-00-20-50-02
Product Type:3300 XL 8 mm Proximity Probe
Origin:USA
Total Length:5.0 meters
Weight:1.615 kg
Views:44
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330102-00-20-50-02 is part of the 3300 XL 8 mm Proximity Transducer System, designed to measure both static (position) and dynamic (vibration) parameters on fluid-film bearing machines. It delivers high accuracy and reliability, fully compliant with API 670 standards. The armored construction enhances durability in harsh environments, while ClickLoc connectors ensure secure, tool-free installation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 330102-00-20-50-02 |
| System Type | 3300 XL 8 mm Proximity Transducer |
| Application | Vibration, position, speed, Keyphasor reference |
| Linear Range | 2.0 mm (80 mils) |
| Frequency Response | 0–10 kHz (+0, -3 dB) |
| Probe Tip Material | PPS (Polyphenylene sulfide) |
| Probe Case Material | Stainless Steel (AISI 303/304) |
| Cable Length | 5.0 meters |
| Total Length | 5.0 meters |
| Weight | 1.615 kg |
| Temperature Range | -52°C to +177°C (standard) |
| Connector Type | Miniature coaxial ClickLoc |
| Certification | API 670, CE, RoHS, SIL 2/3, ATEX, IECEx |
Applications
-
Vibration and position monitoring of rotating machinery
-
Speed and Keyphasor reference measurements
-
Overspeed protection systems
-
Harsh industrial and marine environments
Advantages
-
Full compliance with API 670 mechanical and performance standards
-
Robust armored design for high durability
-
Fully interchangeable system components
-
Extended temperature and environmental capability
-
Quick and reliable installation with ClickLoc connectors
-
High immunity to RFI/EMI for reliable operation
FAQ
Q1: What is the linear measurement range?
A1: The probe offers a linear range of 2.0 mm (80 mils).
Q2: Is the probe compatible with previous non-XL systems?
A2: Yes, it is electrically and mechanically interchangeable with non-XL 3300 5 mm and 8 mm components.
Q3: Does it comply with API 670?
A3: Yes, the system fully meets API 670 requirements.
Q4: What is the maximum operating temperature?
A4: The standard probe operates up to +177°C; extended temperature versions are available.
Q5: Is calibration required before use?
A5: The system components are factory calibrated and interchangeable, no field calibration required.
Q6: What type of connectors are used?
A6: The probe uses gold-plated ClickLoc connectors for secure, tool-free connections.
Q7: Can it be used in hazardous environments?
A7: Yes, it has ATEX, IECEx, CSA, and SIL approvals for use in hazardous areas.
Q8: Does it resist electromagnetic interference?
A8: Yes, the system is highly immune to RFI/EMI and meets CE mark requirements.
Q9: What is the minimum shaft diameter for measurement?
A9: The recommended minimum shaft diameter is 76.2 mm (3 inches).
Q10: How robust is the armored cable?
A10: The armor provides up to 330 N (75 lbf) tensile strength and excellent protection in harsh conditions.
