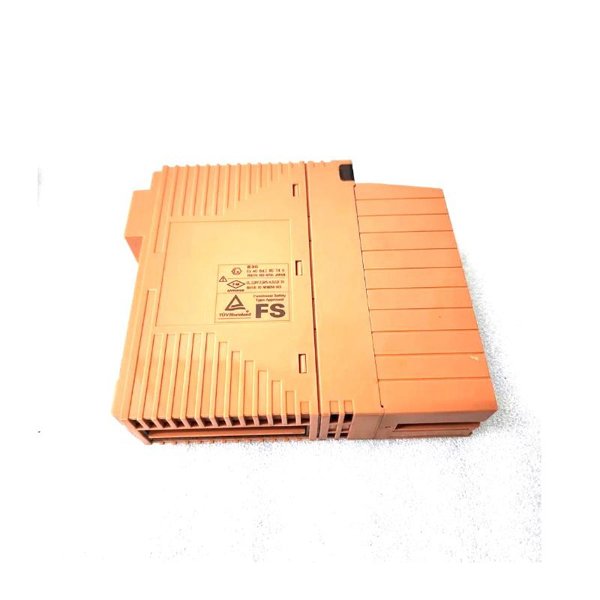

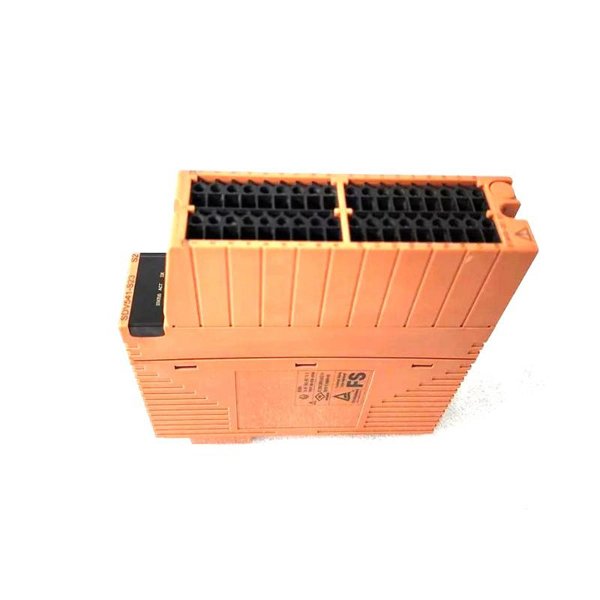

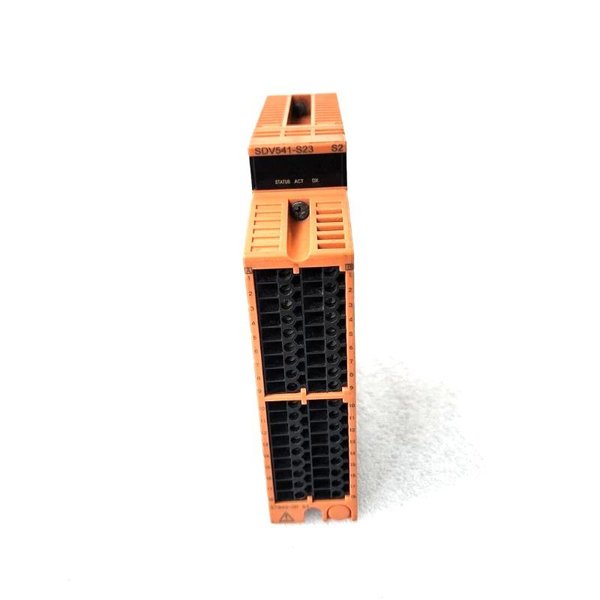

Yokogawa SDV541-S13 Digital Output Modules

The Yokogawa SDV541-S13 is a highly reliable and compact digital output module designed for use in distributed control systems (DCS), particularly within the Yokogawa CENTUM VP and CENTUM CS 3000 platforms. This module provides multiple isolated digital outputs suitable for controlling solenoids, relays, and other binary actuators in industrial automation environments. With built-in diagnostics and robust design, the SDV541-S13 ensures safe and consistent operation under challenging conditions, making it ideal for critical process control applications.

Product Specifications

Product Applications

The SDV541-S13 is purpose-built for use in process industries that demand precise and secure output signaling. Typical applications include:

• Chemical Plants – Managing binary output control of valves and alarms.

• Oil & Gas Refineries – Control of solenoids, interlocks, and shutdown systems.

• Power Generation – Used in turbine control and relay logic outputs.

• Pharmaceutical Manufacturing – Precise equipment control in batch processes.

• Water and Wastewater Plants – Remote activation of pumps and actuators.

• Pulp & Paper Industry – Control of feeders and conveyors in production lines.

Product Advantages

• High Channel Density: 16 outputs in a compact form factor save space in control cabinets.

• Reliable Isolation: Each output is galvanically isolated, reducing risk of cross-talk or failure propagation.

• Fast Switching: Sub-millisecond response supports rapid output cycles.

• Diagnostic Features: Intelligent diagnostics ensure easy troubleshooting and improved safety.

• Flexible Mounting: Can be integrated into various DCS backplanes or mounted on DIN rails.

• Industrial Compliance: Certified for use in hazardous environments with optional barriers or isolators.

• Long Service Life: Engineered with industrial-grade components for 24/7 operation over many years.

• Yokogawa System Integration: Seamless communication with CENTUM VP and ProSafe-RS systems.

FAQs

Q1: What type of outputs does the SDV541-S13 support?

A1: The module provides isolated digital voltage-type outputs, typically open collector. The exact output type depends on the terminal block configuration used.

Q2: How many output channels does this model have?

A2: The SDV541-S13 features 16 independent output channels.

Q3: Can it be used in safety instrumented systems (SIS)?

A3: Yes, when used in conjunction with ProSafe-RS or certified I/O barriers, it can be integrated into SIS environments.

Q4: Is the SDV541-S13 hot-swappable?

A4: No, it must be powered down and disconnected properly before replacement.

Q5: How does this module handle short-circuit protection?

A5: The module includes channel-level diagnostics to detect and report abnormal current levels such as short circuits.

Q6: Does the SDV541-S13 support redundancy?

A6: Redundancy is supported at the system level via the Vnet/IP architecture, not on a per-module basis.

Q7: What kind of terminal boards are compatible?

A7: The NFDV551 and NFDV561 terminal boards are commonly used with SDV541-S13 modules.

Q8: Can this module operate in harsh environments?

A8: Yes, it is built for industrial conditions and conforms to international certifications such as CE and ATEX.

Q9: What systems is this module compatible with?

A9: It is primarily designed for use with Yokogawa’s CENTUM VP and CS 3000 DCS platforms.

Q10: How do I update the firmware or check the diagnostics?

A10: Diagnostics and firmware updates are managed via the Yokogawa system interface tools within the control network.
