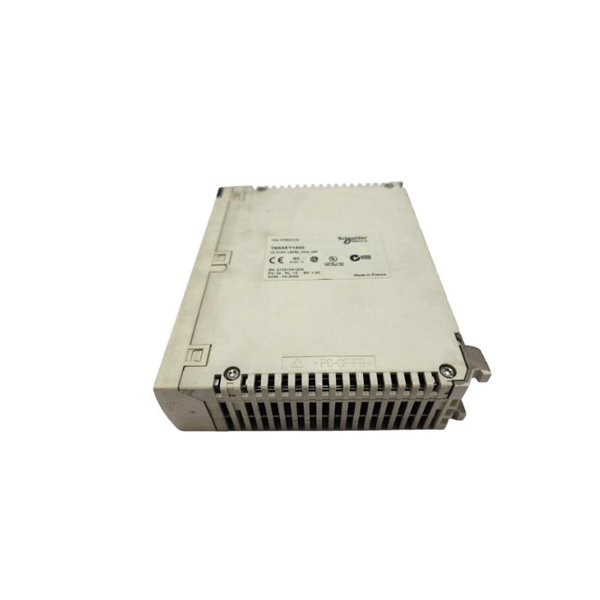

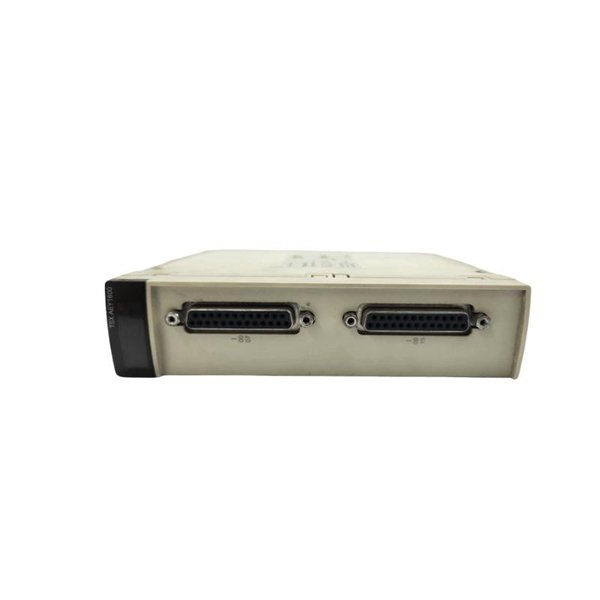

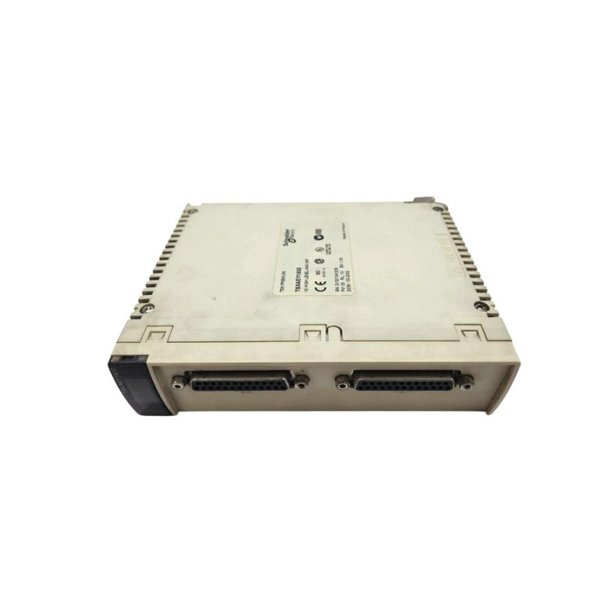

Schneider TSXAEY1614 Analog Input Module

The Schneider TSXAEY1614 is a versatile analog input module designed for the Modicon TSX Micro automation system. It serves as a critical component in industrial control applications, facilitating the acquisition and processing of various analog signals from external sensors and devices. Known for its reliability and precision, the TSXAEY1614 supports multiple signal types, including voltage, current, and temperature sensors.

This module offers 16 input channels, enabling extensive data gathering capabilities within compact automation racks. It is engineered for smooth integration with Schneider Electric’s TSX Micro programmable logic controllers (PLCs), making it a popular choice for process automation, manufacturing systems, and retrofit projects in legacy environments.

The TSXAEY1614 is favored in industries that demand precise measurement, high durability, and consistent operation under a range of environmental conditions.

Technical Specifications

Applications

The TSXAEY1614 Analog Input Module is employed in various sectors requiring reliable analog data acquisition and control, such as:

• Industrial Process Automation: Capturing analog data like temperature, pressure, and flow from sensors in chemical, pharmaceutical, and food processing plants.

• Energy and Utilities: Monitoring analog signals in power generation and distribution systems to ensure stable operations.

• Water and Wastewater Management: Measuring levels, turbidity, and chemical dosing through analog sensors.

• Building Automation: Managing HVAC systems by monitoring temperature and humidity signals.

• Manufacturing Automation: Supporting assembly lines with precise sensor data acquisition for quality control.

• OEM Equipment: Integration into custom machinery that requires multi-channel analog inputs.

Advantages

• High Channel Count: With 16 input channels, the TSXAEY1614 offers extensive analog data gathering within a single module.

• Multi-Signal Support: Compatible with voltage, current, thermocouples, and RTD inputs for versatile sensor integration.

• Accurate Measurements: 12-bit ADC ensures reliable and precise signal conversion.

• Robust Design: Suitable for industrial environments with wide temperature and humidity tolerances.

• Simple Integration: Seamlessly fits into the TSX Micro system using UNI-TELWAY communication.

• Legacy System Support: Ideal for existing TSX Micro installations and retrofit projects.

• Compact Form Factor: Allows efficient use of panel space despite high channel density.

Frequently Asked Questions (FAQ)

1. How many analog inputs does the TSXAEY1614 module support?

   It supports 16 individual analog input channels.

2. What types of sensors can be connected?

   The module supports voltage, current, RTDs, and thermocouple sensors.

3. What is the resolution of the analog inputs?

   The module uses a 12-bit analog-to-digital converter.

4. Can the module measure temperature directly?

   Yes, it can interface directly with RTDs and various types of thermocouples.

5. Is the TSXAEY1614 compatible with modern Schneider PLCs?

   It is designed for TSX Micro systems and may not be compatible with newer Modicon lines.

6. What is the power requirement for this module?

   The module receives power from the TSX Micro backplane, typically 5 VDC.

7. What communication protocol does the module use?

   It communicates via the UNI-TELWAY protocol over RS-485.

8. Is it possible to hot-swap the TSXAEY1614?

   No, the module should be installed or removed only when the system is powered down.

9. What are the environmental limits for operating this module?

   It operates within 0°C to 60°C and humidity levels of 5% to 95%, non-condensing.

10. Are there any certifications for this product?

    Yes, it holds CE, UL, CSA, and GOST certifications for safety and compliance.
