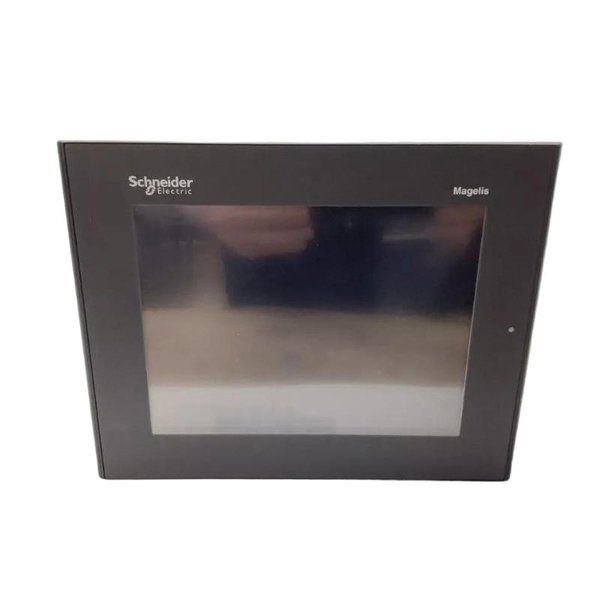

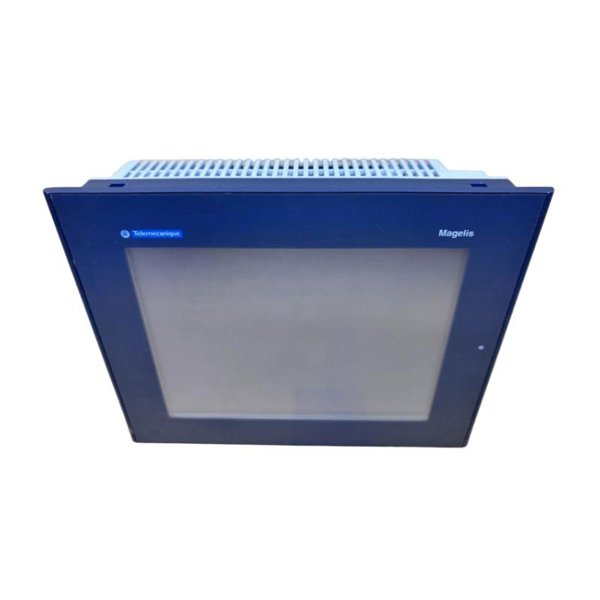

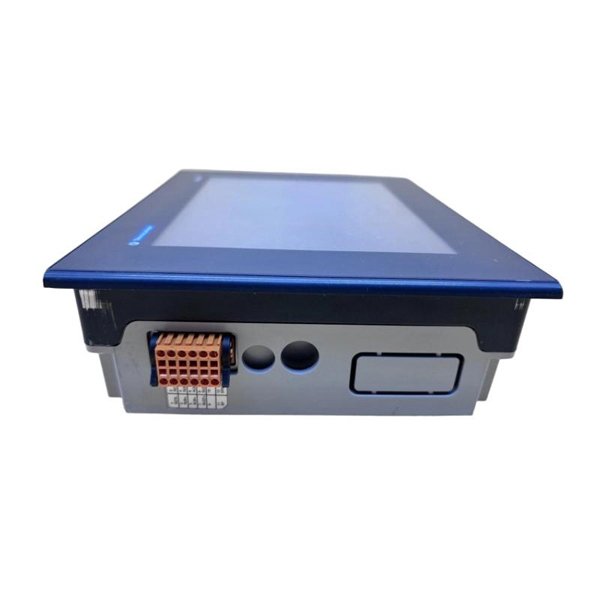

Schneider XBTGT4230 7.5-Inch Advanced Touchscreen Panel

The Schneider XBTGT4230 is a 7.5-inch advanced touchscreen panel designed to provide high-level performance and exceptional user experience in various industrial automation systems. Part of Schneider Electric’s Harmony XBTGT series, the XBTGT4230 integrates advanced touch technology with a high-resolution display and durable construction, making it ideal for demanding industrial applications.

This versatile panel allows for easy integration into manufacturing control systems, process monitoring, and energy management systems. With a high-definition TFT LCD display, the XBTGT4230 enables operators to interact with real-time data, improve productivity, and enhance operational efficiency. The device’s intuitive interface and advanced functionality make it an excellent choice for a wide range of industries, including energy, manufacturing, and building automation.

Product Specifications

Applications

The Schneider XBTGT4230 touchscreen panel is suitable for a variety of industrial applications, including but not limited to:

1. Manufacturing Automation: Used to monitor and control production lines, ensuring smooth operation and enhanced productivity.

2. Process Control Systems: Ideal for overseeing complex processes in industries like chemicals, oil & gas, and pharmaceuticals.

3. Energy Management Systems: Applied in real-time energy monitoring and optimization to improve energy efficiency in industrial facilities.

4. Machine Control: Suitable for machinery and robotic control, providing operators with an intuitive interface for quick adjustments and status updates.

5. Building Management Systems: Used to manage HVAC, lighting, security, and other systems within large commercial and industrial buildings.

6. Industrial Equipment Monitoring: Enables operators to keep an eye on critical machinery and quickly address potential failures or maintenance needs.

7. Water Treatment: Applied in controlling and monitoring water treatment plants and systems.

8. Packaging and Material Handling: Ideal for overseeing automated packaging lines and conveyor systems in the packaging industry.

Product Advantages

1. Large Touchscreen: With a 7.5-inch display, the XBTGT4230 provides a larger workspace for interacting with complex systems and processes.

2. High Resolution: The 800 x 480 pixel resolution ensures that data, graphs, and controls are displayed in clear and sharp detail.

3. Versatile Connectivity: Equipped with RS232, RS485, Ethernet, and USB communication ports, allowing for seamless integration into various automation networks.

4. User-Friendly Interface: The resistive touchscreen provides a smooth and responsive user interface that is easy to navigate, even in industrial environments.

5. Wide Temperature Range: The XBTGT4230 operates reliably in temperatures from -10°C to +60°C, making it ideal for various industrial settings.

6. Compact and Robust Design: Its compact dimensions and 1.8 kg weight allow for easy installation in limited spaces, while its rugged construction ensures long-lasting performance.

7. Energy-Efficient: Designed to minimize energy consumption, making it a suitable choice for energy-conscious applications.

8. Enhanced Graphics: The high-quality display supports clear and detailed graphics, which improve decision-making and operational monitoring.

9. Durability: Built to withstand tough industrial environments, the panel is designed for long-term performance under heavy-duty conditions.

10. Advanced Software Integration: The XBTGT4230 integrates seamlessly with Schneider Electric’s software tools, enabling easy programming and configuration for optimal user customization.

FAQs

1. What is the screen size of the Schneider XBTGT4230?

   The XBTGT4230 has a 7.5-inch display.

2. What is the resolution of the XBTGT4230 touchscreen?

   The screen has a resolution of 800 x 480 pixels.

3. What type of touchscreen does the XBTGT4230 use?

   It uses a resistive touchscreen with 256 colors.

4. What is the operating temperature range for this panel?

   The operating temperature range is -10°C to +60°C.

5. What communication protocols does the XBTGT4230 support?

   It supports RS232, RS485, Ethernet, and USB communication ports.

6. What is the power supply requirement?

   The XBTGT4230 operates on a 24 VDC power supply.

7. How is the XBTGT4230 mounted?

   The panel is designed for panel mounting.

8. Can the XBTGT4230 be used in high-temperature environments?

   Yes, it can operate within the range of -10°C to +60°C, making it suitable for most industrial environments.

9. Is the XBTGT4230 ideal for process control systems?

   Yes, it is perfect for controlling and monitoring complex processes in various industries.

10. What industries can benefit from using the XBTGT4230?

    It is used in industries such as manufacturing, energy, water treatment, and building automation.
