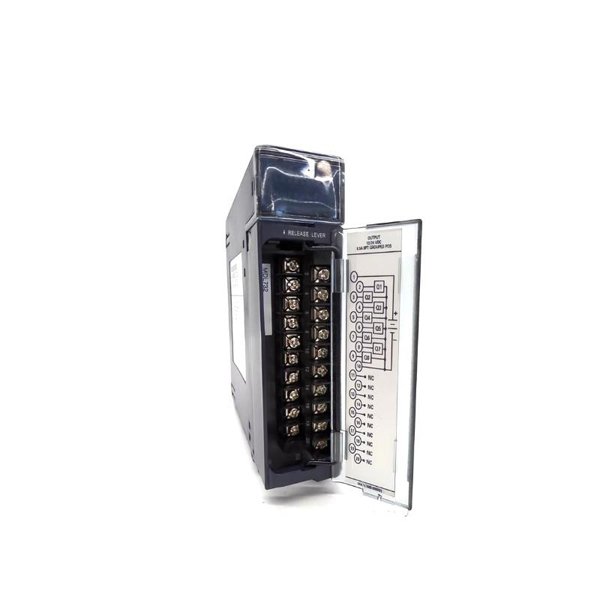

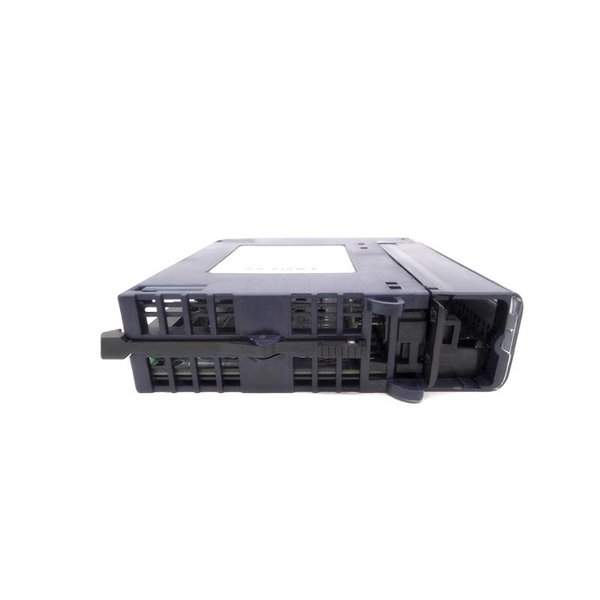

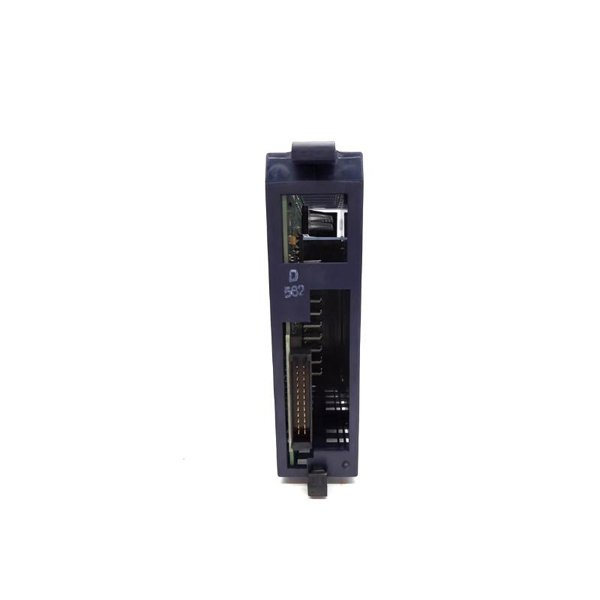

General Electric IC694MDL732B Positive Logic Output Module

The GE IC694MDL732B is a high-performance Positive Logic Output Module that is part of the GE Fanuc RX3i Series of programmable automation controllers (PACs). Designed for modern industrial automation environments, this module provides reliable and efficient digital output control in a variety of manufacturing and processing applications.

This 32-point output module delivers current-sourcing (positive logic) output signals and supports 12/24 VDC output voltage. Its compact form factor and high-density channel configuration make it ideal for installations where panel space is limited. Each output is individually fused and isolated, offering robust protection and simplifying maintenance. The IC694MDL732B is typically used in applications involving discrete output operations such as controlling solenoids, contactors, and indicator lamps.

This module is hot swappable and integrates seamlessly into a GE RX3i system, ensuring fast deployment and minimal system downtime during maintenance or upgrades.

Product Specifications

Product Applications

The IC694MDL732B module is widely used across industrial sectors, particularly where reliable and fast digital output control is essential. Common application areas include:

• Factory Automation: Controlling lights, motors, valves, and alarms.

• Process Control Systems: Triggering discrete actions in sequence control logic.

• Packaging Machinery: Managing output devices in automated packing systems.

• Water and Wastewater Plants: Interfacing with actuators and indicators.

• Material Handling Systems: Coordinating conveyor belts, stoppers, and diverters.

• Oil and Gas Automation: Controlling pumps and remote IO outputs in hazardous zones.

Its compact size and hot-swap capabilities make it ideal for use in systems requiring high uptime and flexibility in maintenance.

Product Advantages

• High Channel Density: 32 outputs in a single slot reduces panel space usage.

• Positive Logic Output: Sourcing design compatible with most industrial devices.

• Robust Isolation: 250V RMS isolation between field and logic circuits enhances safety.

• Fused Protection: Individual fuses for each output protect the system from overloads.

• Hot-Swappable: Enables fast maintenance without halting the system.

• LED Status Indication: Simplifies diagnostics and troubleshooting.

• Broad Voltage Compatibility: Supports both 12VDC and 24VDC, providing system flexibility.

• Reliable Build: Industrial-grade construction ensures longevity and stability in harsh conditions.

Frequently Asked Questions (FAQ)

1. Q: Is the IC694MDL732B module hot-swappable?

   A: Yes, it can be replaced while the system is powered on, reducing downtime.

2. Q: Can this module be used with 12VDC systems?

   A: Yes, it supports both 12VDC and 24VDC nominal output voltages.

3. Q: How many outputs can be active simultaneously?

   A: All 32 outputs can be active as long as the total current does not exceed 16 A.

4. Q: What type of devices can this output module control?

   A: It can control solenoids, indicator lamps, relays, and other discrete actuators.

5. Q: Is each channel protected individually?

   A: Yes, each output point has an individual fuse for protection.

6. Q: What diagnostic features are available?

   A: It includes LED indicators and detection of short circuits, overloads, and open loads.

7. Q: Does it support redundancy configurations?

   A: While the module itself does not include redundancy, it can be used in redundant RX3i systems.

8. Q: How is it installed?

   A: It can be mounted on DIN rail or directly on a control panel and connects via a removable terminal block.

9. Q: What is the maximum current per output channel?

   A: Each channel supports up to 0.5 A.

10. Q: Is the IC694MDL732B suitable for outdoor use?

    A: It is not designed for direct outdoor use but can operate in industrial enclosures with appropriate protection.
