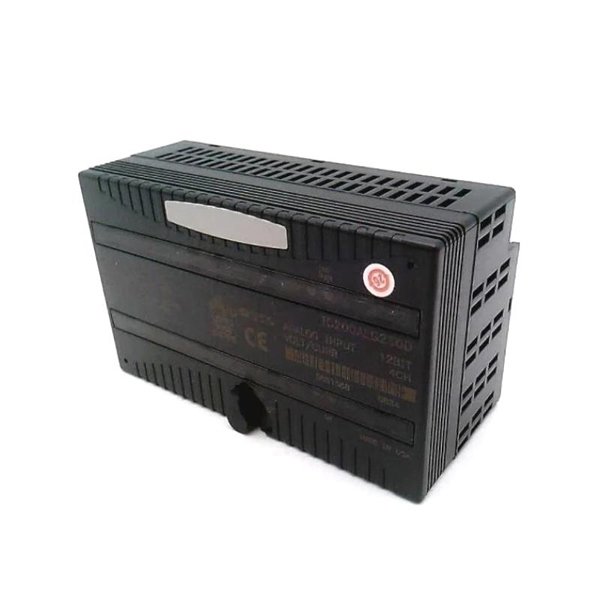

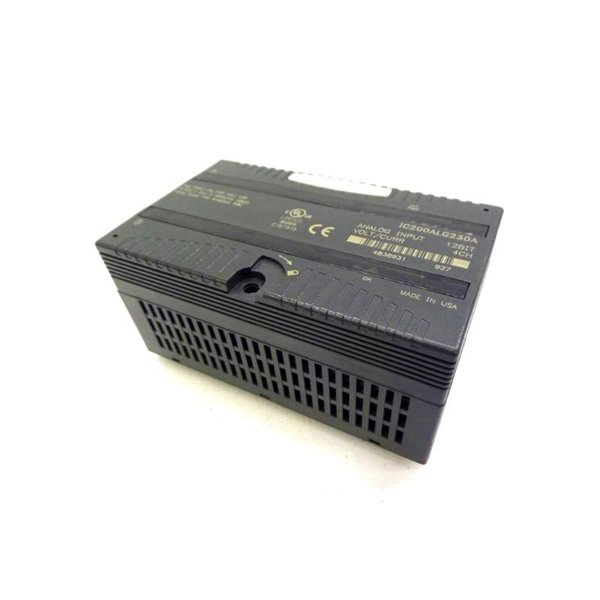

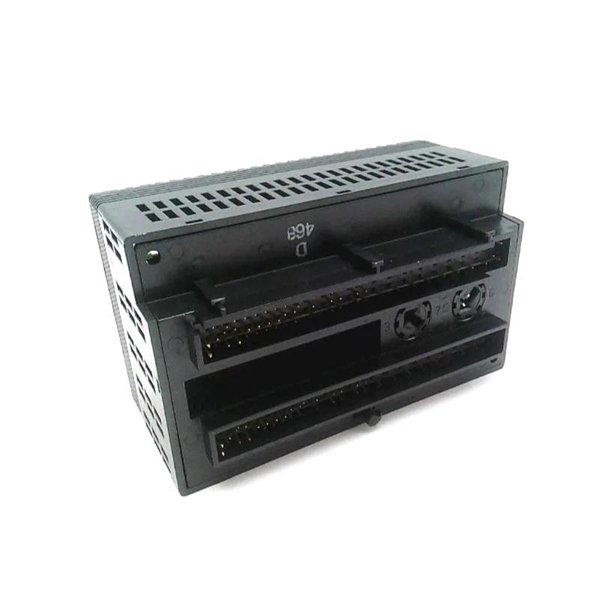

General Electric IC200ALG230A Analog Input Module

The GE IC200ALG230A is an analog input module designed for use with GE Fanuc PLC systems, providing high-quality data conversion and input processing for industrial automation and control systems. This module supports a variety of input types, including voltage and current, to ensure compatibility with a broad range of field devices. The IC200ALG230A is built to provide reliable, high-precision input signals for control systems in industries requiring accuracy and stability, such as manufacturing, chemical processing, and power distribution.

Product Specifications

Applications

The GE IC200ALG230A analog input module is widely used across several industries and applications:

• Manufacturing and Automation: For collecting and processing data from analog sensors in machines, motors, and robotic systems.

• Chemical Processing: Used to monitor and control critical process variables such as pressure, temperature, and flow rate in chemical reactors.

• Power Generation: For monitoring various analog inputs like temperature, pressure, and current in power plants.

• Building Automation: Controls HVAC systems by monitoring temperature, humidity, and pressure sensors.

• Oil and Gas: For monitoring pressure, temperature, and flow rates in drilling operations and pipeline systems.

• Water Treatment: Used in water and wastewater treatment facilities for process control based on analog sensor data.

Product Advantages

• High Accuracy: With a 12-bit resolution per channel, this module ensures precise measurement and accurate data conversion for critical applications.

• Versatile Input Types: It can handle both voltage and current input signals, making it adaptable to a wide variety of field devices and sensors.

• Wide Temperature Range: With an operating temperature range from -20°C to 60°C, it is suitable for deployment in a wide range of industrial environments.

• Compact Design: The module has a small footprint, allowing easy integration into control systems where space is limited.

• High Reliability: Built for industrial environments, the module ensures stable performance even in demanding applications.

• DIN Rail Mounting: The module can be easily mounted onto standard DIN rails, facilitating simple installation and maintenance.

Frequently Asked Questions (FAQ)

1. What is the primary function of the GE IC200ALG230A module?

   The module is used to collect and process analog input signals from sensors in industrial automation and control systems.

2. How many input channels does the IC200ALG230A module have?

   It has 16 analog input channels.

3. What types of input signals can this module handle?

   The module supports both voltage and current input signals, including ±10 V, 0 to 20 mA, and 4 to 20 mA.

4. What is the resolution of the input signals?

   The module provides 12-bit resolution per input channel.

5. What is the input impedance for voltage and current modes?

   For voltage inputs, the impedance is 250 kΩ, and for current inputs, it is 150 Ω.

6. What is the operating voltage of the module?

   The module operates on a 24 V DC supply.

7. What is the temperature range for this module?

   The module operates within a temperature range of -20°C to 60°C (-4°F to 140°F).

8. How much power does the module consume?

   The module consumes 5 W of power.

9. Can the module be used in outdoor environments?

   It is recommended for industrial use in environments with temperature control, as it is not rated for direct outdoor exposure.

10. How is the module mounted in the system?

    The module is designed for DIN rail mounting, making installation straightforward and efficient.
