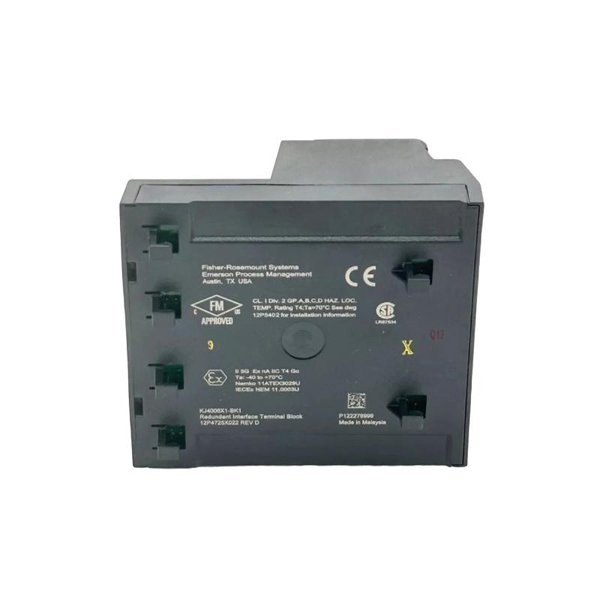

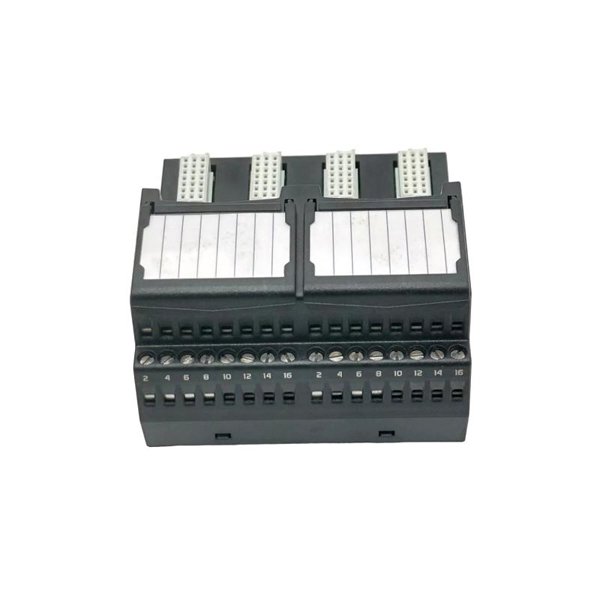

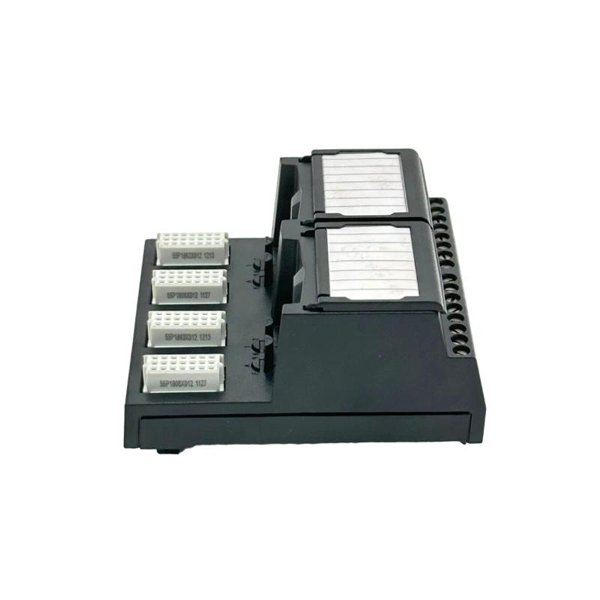

Emerson KJ4006X1-BK1 12P4725X022 Redundant Interface Terminal Block

The Emerson KJ4006X1-BK1 12P4725X022 Redundant Interface Terminal Block is a critical component designed to provide secure and reliable signal distribution in Emerson DeltaV control systems. This terminal block is engineered to support redundant connections between field devices and controllers, ensuring high system availability and fault-tolerant operation in demanding industrial environments.

It acts as the interface point for redundant I/O wiring, delivering stable electrical connections with advanced isolation and noise suppression. The KJ4006X1-BK1 is widely used in applications that require uninterrupted operation, such as power generation, oil & gas, chemical processing, and pharmaceutical manufacturing. With a rugged industrial design, it guarantees long-term reliability and easy maintenance, making it a key element in robust DeltaV architectures.

Product Specifications

Product Applications

The Emerson KJ4006X1-BK1 is designed for use in a wide range of industrial automation and process control applications:

• Distributed Control Systems: Serves as a redundant terminal interface for DeltaV controllers and I/O modules.

• Power Generation: Ensures fault-tolerant wiring connections for turbine and plant control systems.

• Oil & Gas Processing: Provides high-reliability wiring interfaces for safety and control applications.

• Chemical and Petrochemical Plants: Supports continuous operation in critical process environments.

• Pharmaceutical Manufacturing: Guarantees secure redundant connections for validated control systems.

• Industrial Automation: Ideal for any application requiring redundant wiring for critical control signals.

Product Advantages

• High System Availability: Full redundancy support ensures continuous operation even during component failures.

• Secure Connections: Screw/clamp terminals guarantee stable and vibration-resistant connections.

• Electrical Isolation: 1500 V RMS isolation protects control hardware from field disturbances.

• Flexible Mounting: Compatible with both DIN-rail and panel mounting for easy installation.

• Industrial-Grade Design: Built to withstand harsh environments with EMI/RFI protection.

• Seamless DeltaV Integration: Optimized for Emerson’s DeltaV DCS to support redundant architectures.

FAQ

1. What is the primary function of the KJ4006X1-BK1 terminal block?

   It provides a redundant interface for connecting field wiring to DeltaV control modules.

2. Is the terminal block compatible with all DeltaV systems?

   Yes, it is designed for seamless integration with Emerson DeltaV DCS architectures.

3. What type of signals can it handle?

   It supports both analog and digital I/O signals with full isolation.

4. Does it provide channel-to-system isolation?

   Yes, it offers 1500 V RMS isolation between field wiring and the control system.

5. What redundancy features are included?

   It supports full dual-channel redundancy for high-availability applications.

6. Can the KJ4006X1-BK1 be DIN-rail mounted?

   Yes, it supports both DIN-rail and panel mounting options.

7. What industries typically use this terminal block?

   It is used in power generation, oil & gas, chemical, and pharmaceutical industries.

8. Does the terminal block require special maintenance?

   No, it is designed for low-maintenance operation with robust terminal connections.

9. What type of terminal connection does it use?

   It utilizes screw or clamp-type terminals for secure field wiring.

10. Is the unit certified for industrial compliance?

    Yes, it meets UL, CE, CSA, and IEC standards for industrial control equipment.
