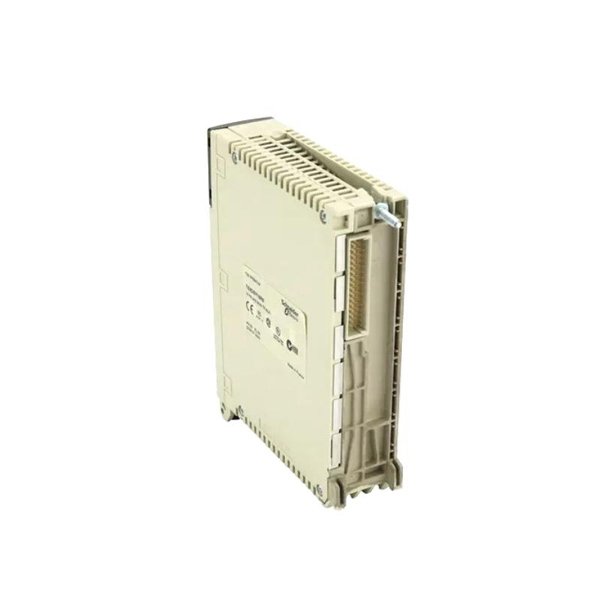

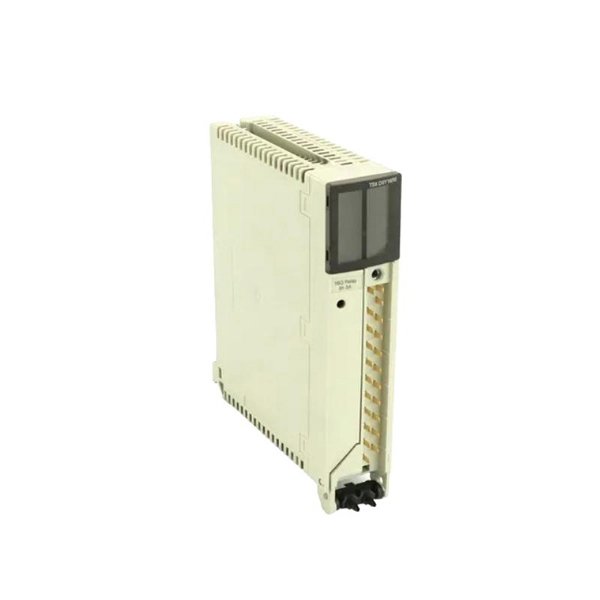

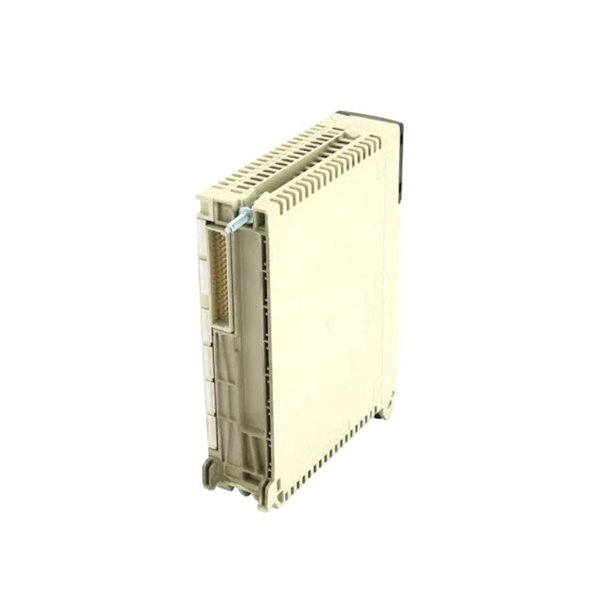

Schneider TSXDSY16R5 Discrete Output Module

The Schneider TSXDSY16R5 is a high-performance discrete output module designed for use in the Modicon Premium automation platform. Tailored for industrial control environments, this module offers 16 relay-type outputs, making it ideal for handling a wide range of discrete output operations, including driving actuators, indicators, solenoids, and relays. The TSXDSY16R5 module is recognized for its reliability, versatility, and integration flexibility within complex automation systems, especially in manufacturing, process control, and infrastructure automation.

This output module is compatible with the TSX series backplane, allowing for seamless connectivity with other I/O and processing units within the same rack. It features mechanical relays, making it suitable for switching AC and DC loads. Schneider Electric’s strict adherence to industrial standards ensures long-term durability, stable operation, and ease of maintenance.

Technical Specifications

Applications

The TSXDSY16R5 module is widely used across various industries that require discrete control, including:

• Manufacturing Lines: Controlling motors, conveyors, sorting systems.

• Building Automation: Switching lighting, HVAC components, and alarms.

• Energy and Utilities: Controlling circuit breakers, valves, and pumps.

• Water and Wastewater Treatment: Operating control valves and instrumentation.

• Food & Beverage: Packaging automation, labeling equipment.

• Transportation & Infrastructure: Controlling signals, barriers, and facility lights.

Product Advantages

• High Reliability: Relay outputs provide durable switching with minimal risk of failure under rated loads.

• Flexible Load Control: Capable of handling both AC and DC loads for broad application.

• Compact Design: Space-saving form factor for installation in tight cabinet layouts.

• Diagnostic LEDs: Individual channel indicators simplify troubleshooting and maintenance.

• Interoperability: Seamless integration with other Schneider Premium series modules.

• Proven Brand Trust: Backed by Schneider Electric’s global support and reputation.

• Industrial Grade Build: Designed for 24/7 operation in demanding industrial environments.

• Energy-Efficient: Low power consumption per output channel.

FAQ

1. Q: Is the TSXDSY16R5 suitable for switching inductive loads like contactors or solenoids?

   A: Yes, it can switch inductive loads but external suppression (like flyback diodes) is recommended for DC loads.

2. Q: Can I replace this module without shutting down the entire system?

   A: No, the TSXDSY16R5 does not support hot swapping. Power down the rack before replacement.

3. Q: How do I know if a specific channel has failed?

   A: Each output has a dedicated LED that indicates its status, making diagnostics simple.

4. Q: Is it compatible with Modicon M340 systems?

   A: No, it is designed for the Modicon Premium series and is not natively compatible with M340.

5. Q: What is the expected lifespan of the relay outputs?

   A: Relay life is typically rated for 100,000 mechanical operations under full load.

6. Q: How do I confirm that the module is working properly after installation?

   A: Once powered and configured, the built-in status LEDs for each channel will illuminate when the output is active. Additionally, the module should be visible in the software under the correct slot address.

7. Q: Can this module be used in safety-critical applications?

   A: It is not safety-certified (e.g., SIL-rated), but it can be used in standard industrial control applications.

8. Q: Does the module support output forcing via software?

   A: Yes, output forcing is possible via programming tools like Unity Pro (EcoStruxure Control Expert).

9. Q: What maintenance is required for this module?

   A: Regular inspection of relays for wear and ensuring clean contact connections is recommended.

10. Q: Are the outputs isolated from one another?

    A: Yes, the relay outputs are individually isolated for safety and noise immunity.
