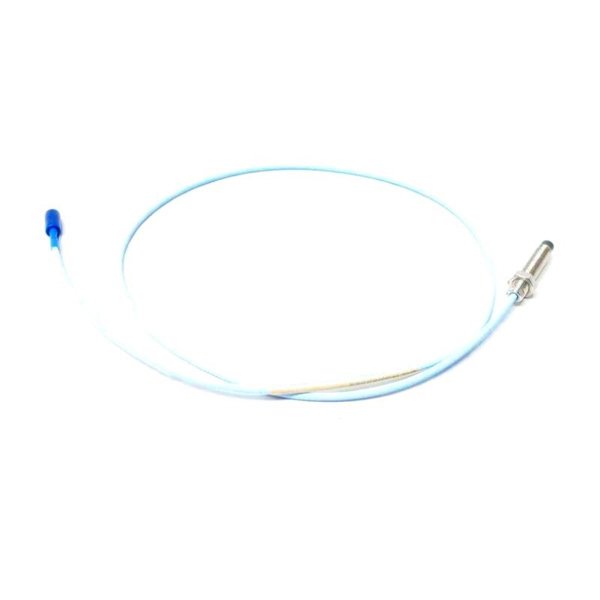

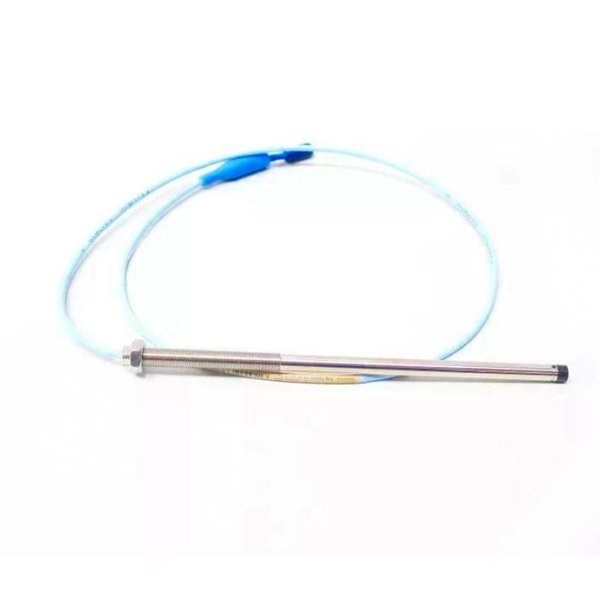

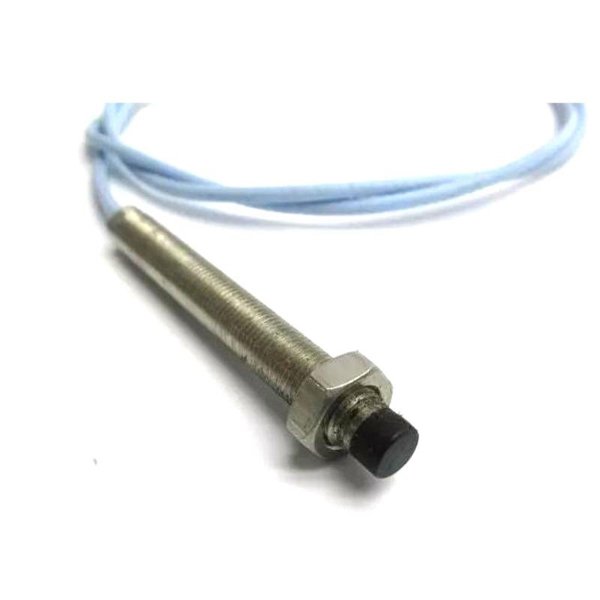

Bently Nevada 330101-00-45-10-11-00 3300 XL 8 mm Proximity Probe

The Bently Nevada 330101-00-45-10-11-00 is part of the 3300 XL 8 mm Proximity Transducer System. It is engineered for accurate static and dynamic measurements in rotating machinery. This model features a 1.0-meter total probe length with high durability and performance under demanding conditions. It includes patented TipLoc and CableLoc technology, providing secure mechanical bonding and high pull strength.

Technical Specifications

Applications

• Steam and gas turbines

• Compressors

• Centrifugal pumps

• Gearboxes

• Keyphasor reference and speed detection

• Shaft vibration and axial thrust measurements

• Machinery health monitoring systems

Advantages

• Complies with API 670 mechanical and performance standards

• Fully interchangeable with other 3300 XL components

• Robust design with patented TipLoc and CableLoc for durability

• Gold-plated, corrosion-resistant ClickLoc connectors

• Highly immune to RFI/EMI interference

• DIN or panel mount options for flexibility

• Extended temperature and pressure tolerance options available

Frequently Asked Questions (FAQ)

Q1: What does the part number 330101-00-45-10-11-00 specify?

A1: It indicates a 3300 XL 8 mm probe with 4.5 in. case length, 1.0 meter cable, FluidLoc cable with connector protector, and agency approvals.

Q2: What is the main use of this proximity probe?

A2: It is used for measuring vibration, displacement, and shaft position in fluid-film bearing machines.

Q3: Is this probe compatible with non-XL 3300 systems?

A3: Yes, it is electrically and physically compatible with non-XL 3300 5 mm and 8 mm systems.

Q4: Does the probe require calibration?

A4: No manual matching or bench calibration is needed; components are factory-matched.

Q5: What is the probe’s linear measurement range?

A5: It operates linearly between 0.25 mm to 2.3 mm (10 to 90 mils).

Q6: Can this model be used in high temperature applications?

A6: Standard probes support up to 177°C. For higher, use the ETR version rated up to 218°C.

Q7: How strong is the connection between probe and cable?

A7: CableLoc design ensures 330 N (75 lbf) tensile strength for secure connections.

Q8: What environmental standards does it comply with?

A8: It meets CE, FCC, and RoHS requirements and is certified for hazardous area usage.

Q9: Is there any oil sealing feature?

A9: The optional FluidLoc cable prevents oil leakage through the cable interior.

Q10: What is the minimum shaft diameter for accurate reading?

A10: Recommended shaft diameter is at least 76.2 mm (3 inches).
