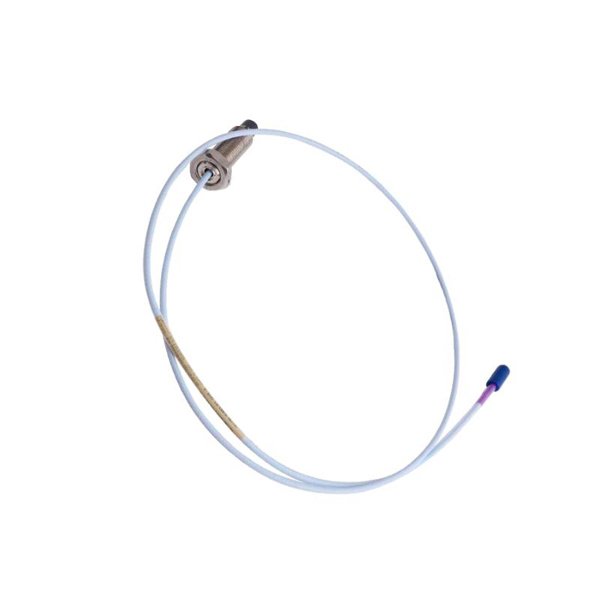

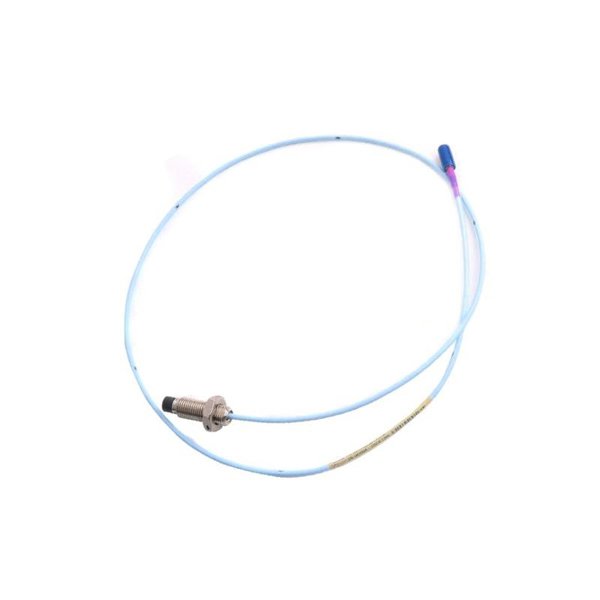

Bently Nevada 330101-00-14-10-02-00 3300 XL 8mm Proximity Probes

The Bently Nevada 330101-00-14-10-02-00 is a high-precision 8mm proximity probe from the 3300 XL series, designed for non-contact measurement of shaft position and vibration in rotating machinery. Utilizing eddy-current technology, this probe provides accurate displacement measurements, making it an essential component in machinery protection and condition monitoring systems.

Product Specifications

Product Applications

The 330101-00-14-10-02-00 proximity probe is widely used in various industries for:

• Rotating Machinery Monitoring: Measuring shaft vibration and position in turbines, compressors, and motors.

• Bearing Wear Detection: Monitoring axial and radial displacement to detect bearing degradation.

• Shaft Alignment: Ensuring proper alignment in coupled machinery.

• Vibration Analysis: Providing data for predictive maintenance and machinery diagnostics.

• Process Control: Integrating with control systems for real-time monitoring and protection.

Product Advantages

• High Precision: Delivers accurate measurements essential for machinery protection.

• Robust Construction: Stainless steel housing and PPS probe tip ensure durability in harsh environments.

• Ease of Installation: ClickLoc™ connectors allow for secure and straightforward connections without special tools.

• Compatibility: Fully compatible with Bently Nevada’s 3300 XL series systems, ensuring seamless integration.

• Environmental Resilience: IP67 rating and wide temperature range make it suitable for challenging industrial conditions.

FAQ

1. Q: What does the part number 330101-00-14-10-02-00 signify?

   A: It indicates a 3300 XL 8mm proximity probe with specific configurations: 1.4-inch case length, 1.0-meter cable, ClickLoc™ connector, and no agency approvals.

2. Q: Is this probe compatible with other Bently Nevada systems?

   A: Yes, it’s designed for use with Bently Nevada’s 3300 XL series, including Proximitor® sensors and extension cables.

3. Q: Can this probe operate in high-temperature environments?

   A: Yes, it operates reliably within a temperature range of -51°C to +177°C (-60°F to +351°F).

4. Q: What is the environmental protection rating of this probe?

   A: It has an IP67 rating, making it dust-tight and water-resistant.

5. Q: What materials are used in the construction of the probe?

   A: The probe housing is made of stainless steel, and the tip is constructed from polyphenylene sulfide (PPS).

6. Q: What is the weight of the probe?

   A: The probe weighs 0.323 kg (0.712 lbs).

7. Q: What is the purpose of the ClickLoc™ connector?

   A: The ClickLoc™ connector ensures a secure, reliable connection that resists loosening due to vibration.

8. Q: Is the probe suitable for measuring both axial and radial displacement?

   A: Yes, it can measure both axial and radial displacement, depending on installation orientation.

9. Q: Does the probe require calibration?

   A: Probes are factory-calibrated for AISI 4140 steel targets. Calibration for other materials may be necessary.

10. Q: Can the probe be used in hazardous environments?

    A: This specific model does not have agency approvals for hazardous environments. Models with such approvals are available.
