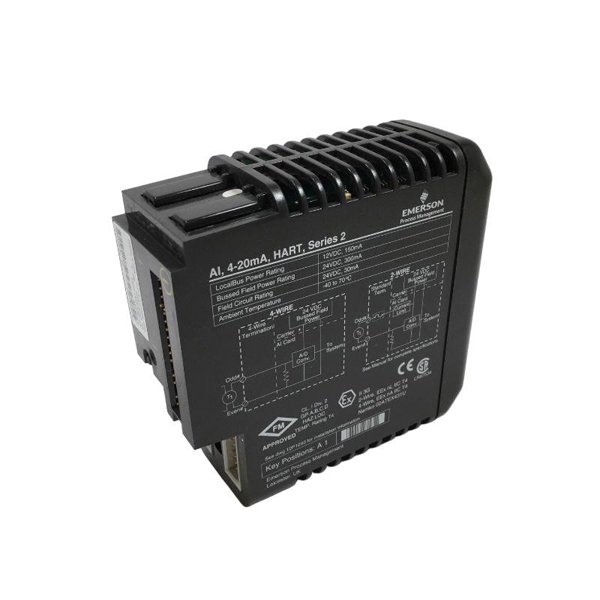

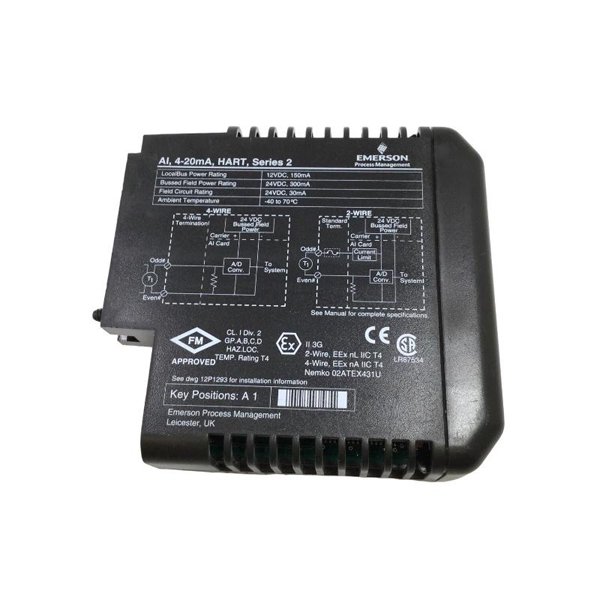

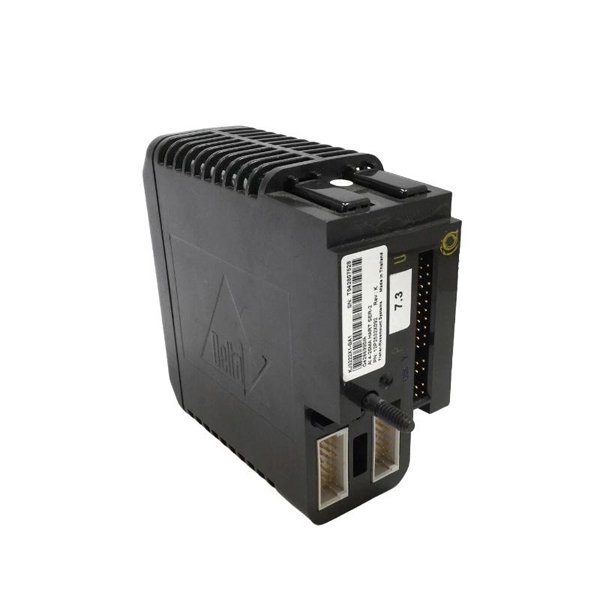

Emerson VE4033S2B1 KJ3222X1-BA1 12P2532X092 Analog Input Module

The Emerson VE4033S2B1 KJ3222X1-BA1 12P2532X092 Analog Input Module is a core component of the Emerson DeltaV distributed control system (DCS). This module is designed to receive and process analog input signals from field instruments such as sensors and transmitters. By accurately converting physical parameters like temperature, pressure, and flow into digital data, it enables precise monitoring and control of industrial processes.

Engineered for reliability and accuracy, the VE4033S2B1 module supports multiple input types and offers advanced diagnostics to maintain system health. It is commonly used in industries that require rigorous process control, including power generation, oil and gas, chemical processing, and manufacturing. This module enhances system efficiency through robust signal conditioning and seamless integration with DeltaV controllers.

Product Specifications

Product Applications

• Process Variable Monitoring: Measures critical parameters such as temperature, pressure, flow, and level in real time.

• Power Plants: Interfaces with sensors monitoring turbines, boilers, and auxiliary equipment.

• Oil & Gas Industry: Receives data from wellhead sensors, pipeline monitoring, and refining instrumentation.

• Chemical and Petrochemical Plants: Supports accurate measurement of process variables in hazardous and precise environments.

• Manufacturing Automation: Captures sensor data to optimize process control and quality assurance.

• Water Treatment Facilities: Monitors water quality parameters and plant operations for safety and compliance.

Product Advantages

• Wide Signal Support: Compatible with current, voltage, thermocouple, and RTD signals to cover diverse input needs.

• High Accuracy and Resolution: 16-bit ADC ensures precise data acquisition with low error margins.

• Advanced Diagnostics: Features like open sensor detection and self-tests enhance reliability and maintenance.

• Robust Isolation: 1500V RMS isolation between channels and control system protects against electrical interference.

• Seamless Integration: Designed for Emerson DeltaV systems, enabling easy installation and configuration.

• Environmental Resilience: Operates reliably in harsh industrial environments with wide temperature and humidity tolerances.

FAQ

1. What types of analog input signals does the VE4033S2B1 support?

   It supports current (4–20 mA, 0–20 mA), voltage inputs, thermocouples, and various RTD types.

2. How many input channels are available, and are they isolated?

   There are 8 isolated analog input channels, each electrically separated for noise reduction and safety.

3. What is the accuracy and resolution of the input signals?

   The module offers ±0.1% accuracy and uses a 16-bit analog-to-digital converter for high-resolution data.

4. Does the module have built-in diagnostics?

   Yes, it detects open sensors, out-of-range signals, and performs internal self-tests.

5. What isolation voltage rating does the module provide?

   It provides 1500V RMS isolation between input channels and the control system circuitry.

6. Can this module handle RTD inputs, and if so, which types?

   Yes, it supports standard RTD types such as Pt100 and Pt1000 (specific types depend on configuration).

7. What input impedance does the module provide for voltage signals?

   The input impedance for voltage inputs exceeds 100 kΩ, minimizing load on field devices.

8. Is this module compatible with redundant DeltaV control architectures?

   Yes, it integrates fully with Emerson DeltaV redundant systems for high availability.

9. What temperature range can the module operate within?

   The module operates reliably between -20°C and +60°C.

10. How does the module communicate diagnostics and status?

    Diagnostic information is transmitted via the DeltaV system communication protocol, enabling monitoring of channel health in real time.
