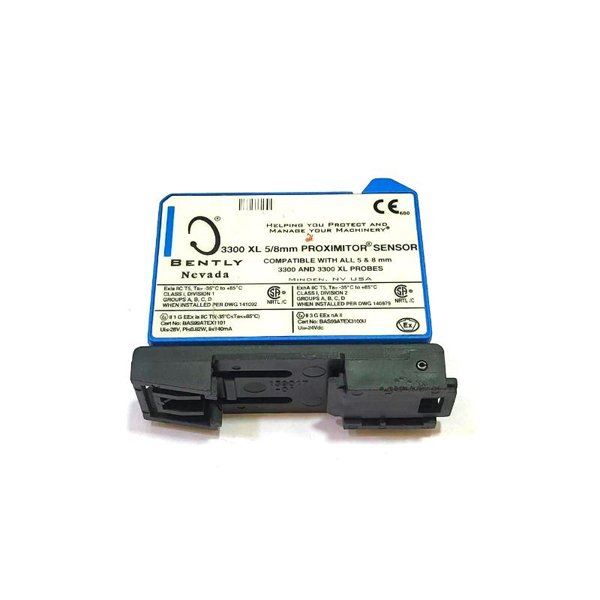

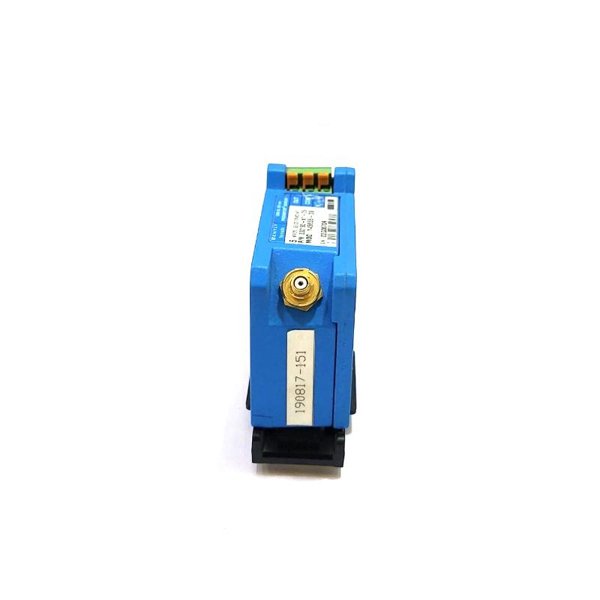

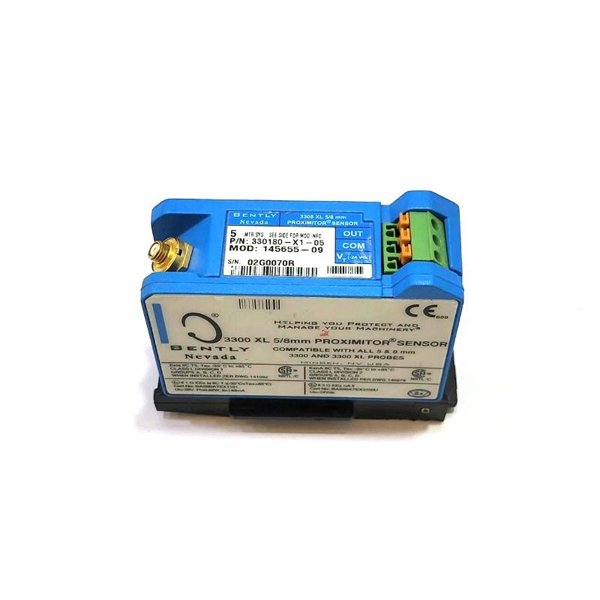

Bently Nevada 330180-X1-05 143416-42 3300 XL 8mm Proximitor Sensor

The Bently Nevada 330180-90-05 is a high-performance Proximitor Sensor, part of the 3300 XL 8 mm Proximity Transducer System. Designed for precise non-contact measurements of shaft position and vibration, it is widely used in monitoring critical machinery components. Its robust design ensures reliable operation in demanding industrial environments.​

Product Specifications

Applications

The 330180-90-05 Proximitor Sensor is suitable for a variety of industrial applications, including:​

• Monitoring shaft vibration and position in turbines, compressors, and pumps.

• Detecting radial and axial displacement in rotating machinery.

• Providing Keyphasor signals for phase reference in vibration analysis.

• Measuring thrust position in axial compressors and turbines.

• Monitoring machinery with fluid-film bearings.​

Advantages

• High Compatibility: Works seamlessly with both 3300 XL and standard 3300 series probes and extension cables.

• Robust Design: Constructed from durable A308 aluminum, ensuring longevity in harsh environments.

• Flexible Mounting: Supports both panel and DIN-rail mounting, facilitating easy integration into existing systems.

• Enhanced EMI/RFI Immunity: Designed to operate reliably in environments with high electromagnetic interference.

• Comprehensive Approvals: Certified for use in hazardous areas, meeting CSA, ATEX, and IECEx standards.​

Frequently Asked Questions (FAQ)

1. What is the primary function of the 330180-90-05 Proximitor Sensor?

   • It measures shaft position and vibration in rotating machinery using non-contact eddy current technology.​

2. Can it be used with both 5 mm and 8 mm probes?

   • Yes, it is compatible with 3300 XL 5 mm, 8 mm, and standard 3300 series probes.​

3. What is the maximum operating temperature?

   • The sensor operates reliably up to +100°C (+212°F).​

4. Is it suitable for hazardous environments?

   • Yes, it has CSA, ATEX, and IECEx approvals for use in hazardous areas.​

5. What is the output sensitivity?

   • The sensor provides an output of 200 mV/mil (7.87 mV/μm).​

6. Does it require special mounting hardware?

   • No, it uses a standard 4-hole mounting pattern compatible with existing setups.​

7. What is the weight of the sensor?

   • 0.246 kg.​

8. Is it resistant to electromagnetic interference?

   • Yes, it has high EMI/RFI immunity, compliant with CE standards.​

9. Can it be mounted on a DIN rail?

   • Yes, it supports both panel and DIN-rail mounting options.​

10. Where is the sensor manufactured?

    • It is manufactured in the United States.
