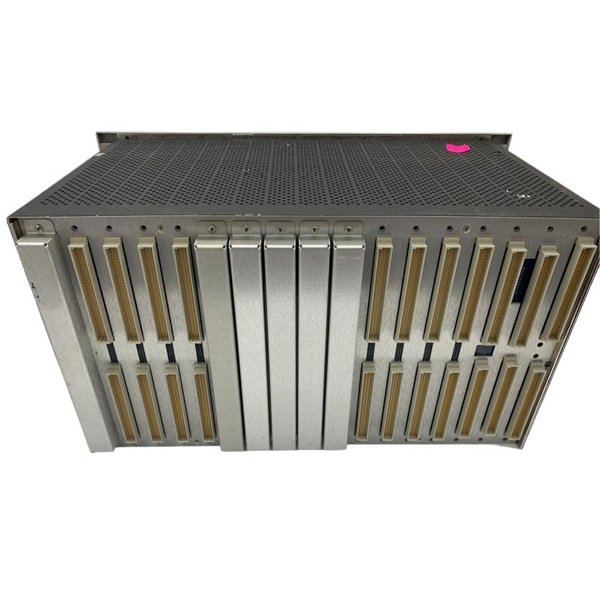

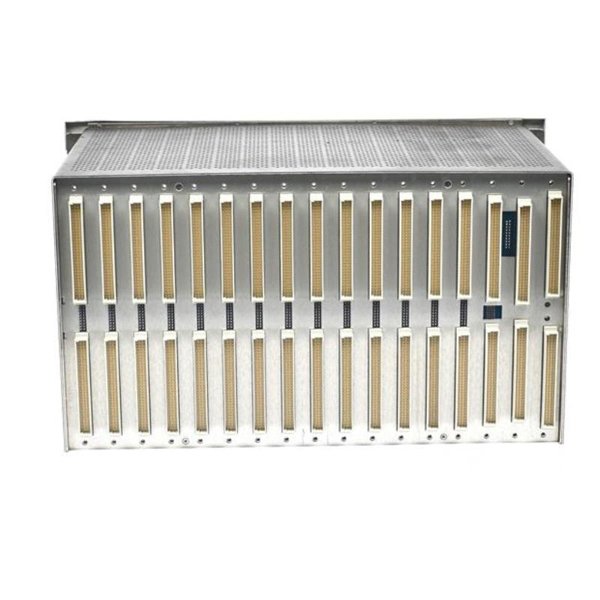

Bently Nevada 3500/05-01-02-R0-00-01 3500/05 System Rack

The Bently Nevada 3500/05-01-02-R0-00-01 is a full-size 19-inch rack designed to house and interconnect modules within the 3500 machinery protection system. This system provides continuous, online monitoring suitable for critical machinery protection applications, ensuring optimal performance and safety in industrial environments.

Key Features

• Modular Design: Accommodates various monitor modules and power supplies from the Bently Nevada 3500 series.

• Rack-Mounted: Facilitates easy integration into existing control cabinets.

• Multiple Mounting Options: Offers flexibility for different installation scenarios, including panel mount, rack mount, and bulkhead mount.

• Hot Insertion: Allows modules to be removed or inserted when the rack is under power, facilitating easier maintenance and system expansion without interruption of machinery protection functions.

• Compliance with Standards: Designed to meet the requirements of the American Petroleum Institute’s API 670 standard for machinery protection systems.

Technical Specifications

Applications

The Bently Nevada 3500/05-01-02-R0-00-01 system rack is utilized in various industrial applications, including:

• Power Generation: Monitoring critical machinery such as turbines and generators.

• Oil and Gas: Protecting equipment in upstream and downstream processes.

• Chemical Processing: Ensuring the safety and efficiency of chemical reactors and pumps.

• Water Treatment: Overseeing pumps, compressors, and other vital equipment.

• Mining: Monitoring heavy machinery in mining operations.

Advantages

• Scalability: The modular design allows for easy expansion as monitoring needs grow.

• Reliability: Proven track record in harsh industrial environments.

• Flexibility: Supports a wide range of modules and configurations.

• Compliance: Meets international standards, ensuring safety and reliability.

• Ease of Maintenance: Hot insertion capability reduces downtime during maintenance.

Frequently Asked Questions (FAQ)

1. What is the maximum number of modules the 3500/05 rack can support?

   • The rack can accommodate up to 14 modules.

2. Can modules be replaced without shutting down the system?

   • Yes, the rack supports hot insertion, allowing modules to be replaced without powering down.

3. What power supplies are compatible with the 3500/05 rack?

   • The rack requires one or two 3500/15 Power Supplies

4. Is the 3500/05 rack compliant with industry standards?

   • Yes, it meets the requirements of the API 670 standard for machinery protection systems.

5. What communication protocols does the system support?

   • The system supports Modbus and Ethernet Global Data (EGD) protocols.

6. Can the 3500/05 rack be mounted in different orientations?

   • Yes, it offers multiple mounting options, including rack mount, panel mount, and bulkhead mount.

7. What display options are available for the system?

   • The system can be equipped with the 3500/94M VGA Display Module.

8. Are intrinsic safety barriers available for hazardous areas?

   • Yes, both internal and external intrinsic safety barriers are available.

9. What is the shipping weight of the 3500/05 rack?

   • The shipping weight is 4.5 kg.

10. Is the 3500/05 rack suitable for outdoor installations?

    • The rack is designed for indoor use; outdoor installations may require additional protective measures.
