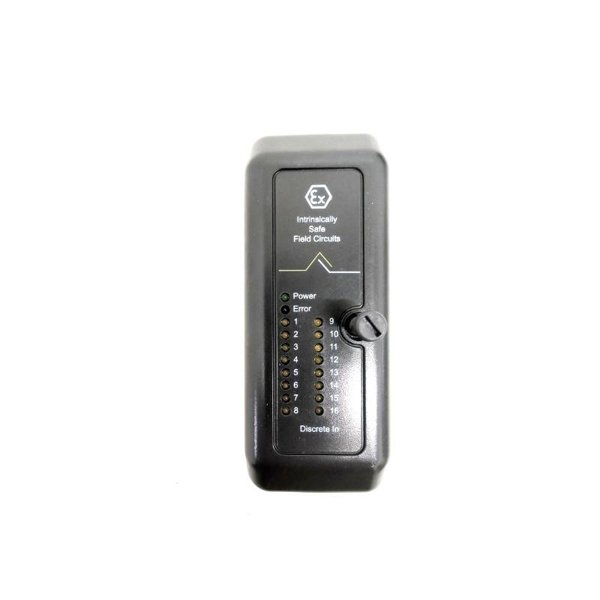

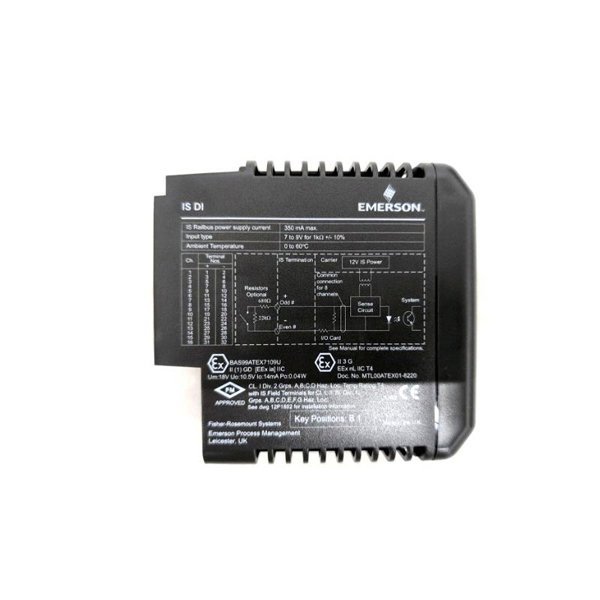

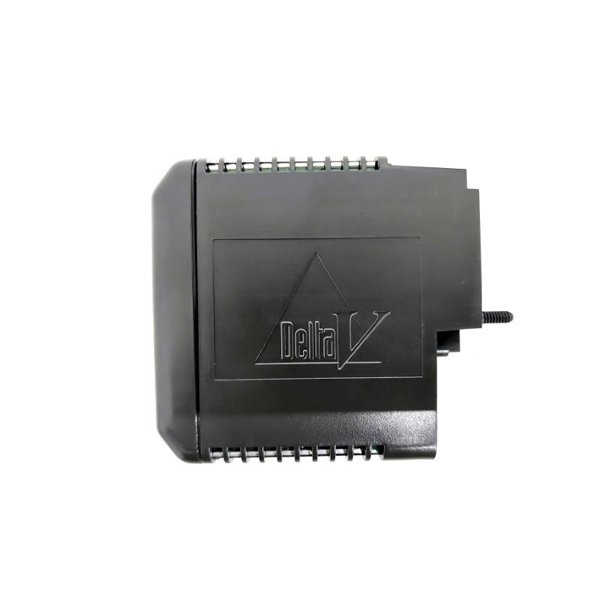

Emerson KJ3101X1-BB1 Safe Discrete Input Card

The Emerson KJ3101X1-BB1 is a Safe Discrete Input (DI) module engineered for use within DeltaV SIS (Safety Instrumented System) platforms. It plays a pivotal role in capturing digital input signals from field devices such as push buttons, limit switches, or emergency stop switches in safety-critical applications. The module is TÜV-certified for use in SIL 3 safety instrumented functions, ensuring reliable operation in high-integrity environments.

As part of the DeltaV distributed control system, this card is optimized for seamless integration into safety loops, offering built-in diagnostics, signal line monitoring, and failsafe input status detection. It is widely adopted in industries such as oil & gas, petrochemical, power generation, pharmaceuticals, and others where personnel and equipment safety are paramount.

Technical Specifications

Applications

• Emergency Shutdown Systems (ESD) – Capturing safety-critical input signals for immediate process shutdowns.

• Fire & Gas Detection – Input monitoring from flame detectors, gas sensors, and manual call points.

• High Integrity Pressure Protection Systems (HIPPS) – Interfaces with pressure switch signals in overpressure protection loops.

• Turbomachinery Control – Monitoring operational limits and protective trip conditions for turbines.

• Pharmaceutical Production – Safety interlocks for cleanroom processes and containment systems.

• Refineries and Petrochemical Plants – Safe zone monitoring and emergency action systems.

Advantages

• SIL 3 Certified: Fully certified for use in high-integrity safety instrumented systems as per IEC 61508 standards.

• Real-Time Fault Diagnostics: Advanced line monitoring for wire breaks, short circuits, and sensor failures helps ensure system availability.

• DeltaV Native Integration: Seamlessly integrates with DeltaV SIS for fast commissioning, easy troubleshooting, and minimal engineering overhead.

• Flexible Input Types: Supports both dry contacts and NAMUR sensors, reducing the need for signal converters.

• Failsafe Configurability: Each channel can be individually programmed for trip logic, enhancing application flexibility.

• Compact Form Factor: Slim design saves cabinet space while maintaining mechanical robustness.

• Extended Environmental Tolerance: Operates in extreme industrial conditions, suitable for remote installations and hazardous zones.

Frequently Asked Questions (FAQ)

1. Q: What is the primary use of the Emerson KJ3101X1-BB1 card?

   A: It is used to monitor discrete input signals from field devices in safety instrumented systems, especially in high-risk industrial environments.

2. Q: Is the module certified for use in SIL-rated applications?

   A: Yes, it is TÜV-certified for up to SIL 3 applications under IEC 61508.

3. Q: What types of sensors can be connected to this input card?

   A: It supports dry contact switches and NAMUR sensors.

4. Q: Can I configure the fail-safe behavior for each input?

   A: Yes, each channel supports customizable logic such as de-energize-to-trip.

5. Q: What systems is this module compatible with?

   A: It is designed specifically for use with Emerson DeltaV SIS systems.

6. Q: Is this card hot-swappable?

   A: No, the system must be powered down when inserting or removing the module to maintain safety compliance.

7. Q: Does it support redundancy?

   A: Yes, it can be used in redundant configurations for critical safety applications.

8. Q: What environmental conditions can it tolerate?

   A: It operates from -40°C to +70°C and in up to 95% humidity.

9. Q: How are diagnostic messages communicated?

   A: Faults and diagnostic alerts are reported directly through the DeltaV system interface.

10. Q: How many channels does this module support?

    A: The card offers 16 individually monitored input channels.
