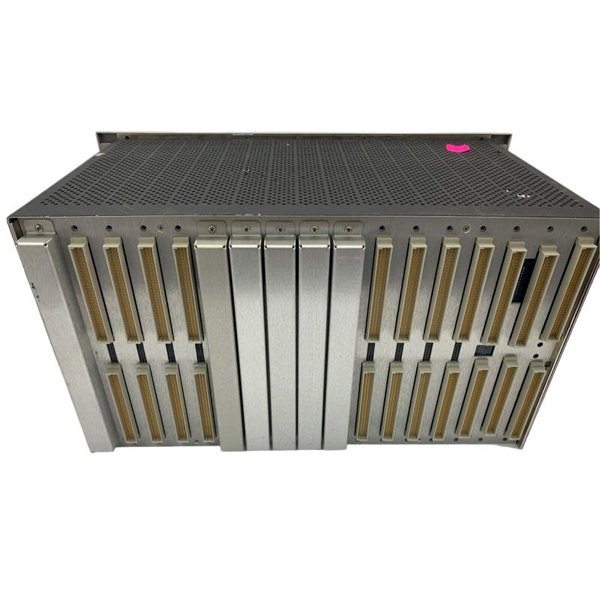

Bently Nevada 3500/05-02-05-00-00 3500/05 System Rack

With robust construction and standardized form factor, the 3500/05-02-05-00-00 supports up to 14 module slots, facilitating a fully scalable and customizable monitoring system. The rack plays a central role in integrating various components of the 3500 series, ensuring high availability and system redundancy when required. It is ideal for use in industrial environments such as power generation, oil & gas, petrochemical plants, and manufacturing facilities.

Technical Specifications

Product Advantages

• Scalable Design: Supports up to 14 modules in a single rack, allowing flexible system expansion as needed.

• Redundancy Ready: Built-in design supports redundant power supply configurations for enhanced system reliability.

• Industrial-Grade Build: Durable aluminum construction with protective coating ensures long service life in harsh industrial settings.

• Standardized Form Factor: Compatible with standard 19″ EIA mounting, simplifying installation and integration.

• High Interoperability: Seamless interface with all 3500 series modules, including communication gateways and display units.

• Improved Maintenance Access: Front-access design provides easy access for wiring, diagnostics, and module replacements.

• Wide Environmental Range: Designed for extreme industrial environments with wide temperature and humidity tolerances.

Product Applications

• Turbine and Compressor Monitoring

  Installed in systems requiring continuous vibration and temperature monitoring.

• Power Plants

  Essential for the predictive maintenance systems in gas, steam, and hydro power stations.

• Oil & Gas Platforms

  Used extensively in offshore and onshore platforms for rotating machinery protection.

• Petrochemical Facilities

  Ideal for hazardous areas requiring explosion-proof certified machinery protection.

• Heavy Manufacturing Plants

  Used in pulp & paper, steel mills, and other manufacturing sectors to monitor heavy rotating assets.

• Pipeline Compressor Stations

  Monitors critical compressors and motors to prevent unscheduled downtimes.

FAQ (Frequently Asked Questions)

Q1: What is the maximum number of modules that the 3500/05-02-05-00-00 rack can accommodate?

A1: It can accommodate up to 14 modules, including monitoring, power supply, and communication modules.

Q2: Can I use dual power supplies with this rack for redundancy?

A2: Yes, this model supports dual power supply configuration to ensure continuous operation.

Q3: Is the rack compatible with all 3500 series modules?

A3: Yes, it is designed to be compatible with all standard 3500 series modules.

Q4: What kind of mounting options are available for this rack?

A4: It supports panel mounting and conforms to the 19-inch EIA standard rack width.

Q5: Is this rack certified for hazardous environments?

A5: Yes, it complies with certifications like ATEX and CSA for use in hazardous industrial zones.

Q6: What materials are used in the construction of the rack?

A6: It is made from high-grade aluminum alloy with protective anti-corrosive coatings.

Q7: How much does the rack weigh without any modules installed?

A7: The empty rack weighs 4.5 kg .

Q8: What environmental conditions can the rack withstand?

A8: It operates reliably between -30°C to +65°C and can be stored between -40°C to +85°C.

Q9: Can I perform hot-swapping of modules in this rack?

A9: Certain modules support hot-swapping, but it depends on the system configuration and module type.

Q10: What kind of system diagnostics does the rack offer?

A10: The system offers LED indicators and module-level diagnostics when used with Bently Nevada monitoring modules.
