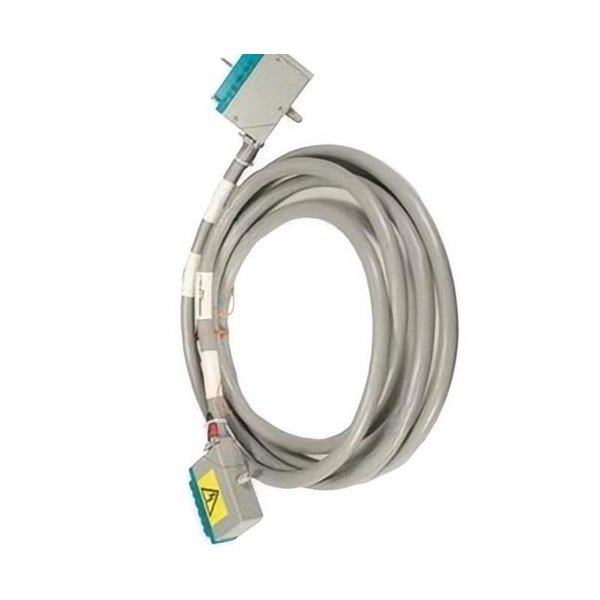

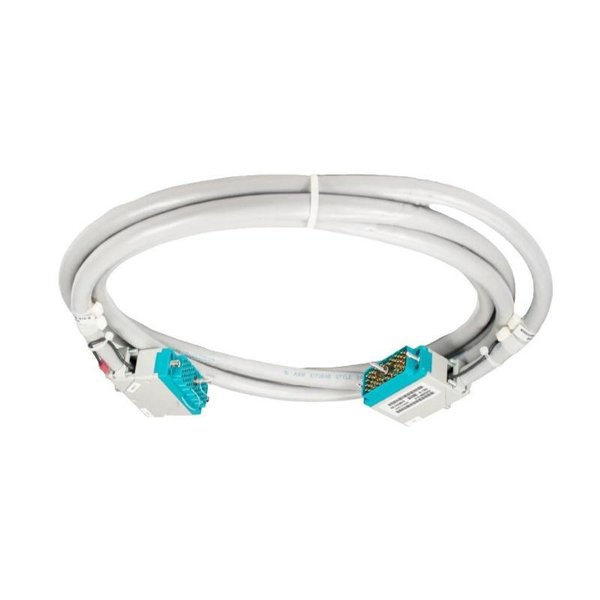

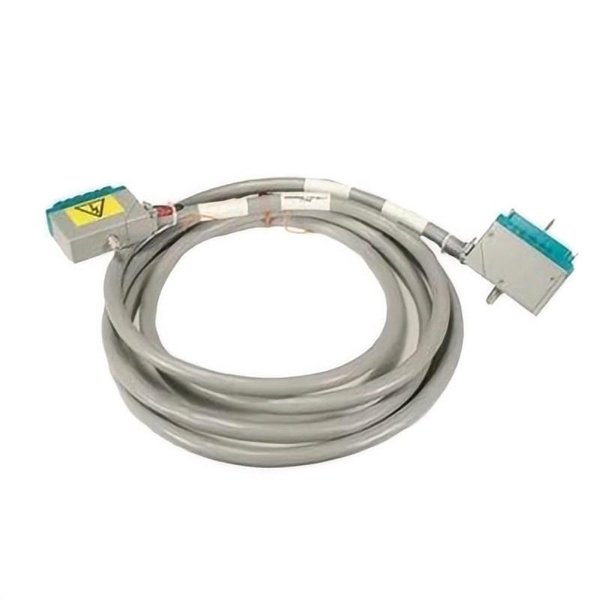

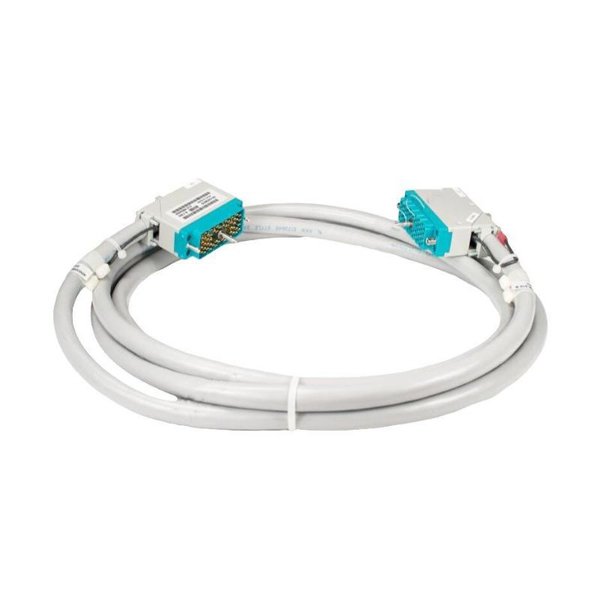

Triconex 4000094-320 Cable Assembly

The Triconex 4000094-320 Cable Assembly is a purpose-built industrial-grade interconnection cable designed for Triconex safety and control platforms. Engineered to ensure stable, low-loss signal transmission, it plays a vital role in linking key system modules in mission-critical automation and safety applications. Built with premium conductors, precision shielding, and factory-installed connectors, this cable assembly is optimized for demanding operational environments where reliability is non-negotiable.

It is widely used in sectors such as oil and gas, power generation, petrochemicals, and process automation, where operational uptime and safety integrity are paramount. By ensuring consistent connectivity between system components, the 4000094-320 contributes to overall system resilience, helping plants maintain high safety performance levels.

Product Parameters

Product Applications

The Triconex 4000094-320 Cable Assembly is designed for a range of industrial control and safety applications, including:

• Safety Instrumented Systems (SIS): Connecting logic solvers, I/O modules, and interface units.

• Critical Process Control: Maintaining reliable data flow in refineries, offshore platforms, and chemical plants.

• Power Generation Systems: Linking control systems for turbines, generators, and auxiliary systems.

• Redundant Architectures: Suitable for triple modular redundancy (TMR) configurations to ensure fault tolerance.

• Industrial Automation Networks: Enabling robust communication in large-scale PLC and safety PLC installations.

• High-Interference Zones: Ideal for areas with significant EMI and RFI due to heavy shielding.

Product Advantages

• Exceptional Signal Integrity: Maintains low signal attenuation for high data accuracy in both analog and digital transmissions.

• Durable Industrial Construction: Designed to withstand vibration, chemical exposure, and temperature fluctuations.

• Advanced EMI/RFI Protection: Multi-layer shielding minimizes the impact of electromagnetic interference.

• Plug-and-Play Compatibility: Factory-installed connectors ensure straightforward integration with Triconex hardware.

• Low Maintenance Requirements: The rugged build reduces the need for frequent inspections or replacements.

• Regulatory Compliance: Meets or exceeds international standards for safety and environmental impact.

FAQ

1. What type of connectors are used in the 4000094-320 Cable Assembly?

It comes with factory-installed, Triconex-compatible connectors designed for seamless system integration.

2. Is this cable suitable for transmitting both analog and digital signals?

Yes, it is engineered to maintain high integrity for both analog and digital data channels.

3. What type of shielding does this cable feature?

It uses multi-layer shielding combining foil and braided copper to block EMI and RFI.

4. Can the cable operate in a triple modular redundant (TMR) setup?

Yes, it is fully compatible with TMR system configurations.

5. What is the rated operating temperature range?

It operates reliably between -20°C and +70°C.

6. How does the cable ensure low signal loss?

By using high-purity copper conductors and precise impedance control, signal degradation is minimized.

7. Is the insulation material resistant to industrial contaminants?

Yes, it is resistant to oils, chemicals, and industrial-grade solvents.

8. Does the cable assembly meet international compliance standards?

Yes, it is CE-certified, RoHS-compliant, and meets IEC safety standards.

9. How is the cable assembly grounded to reduce interference?

It has integrated grounding within the shielding layers to further reduce interference risks.

10. Can this cable maintain performance in high-vibration environments?

Yes, its ruggedized construction makes it suitable for use in areas with significant mechanical vibration.
