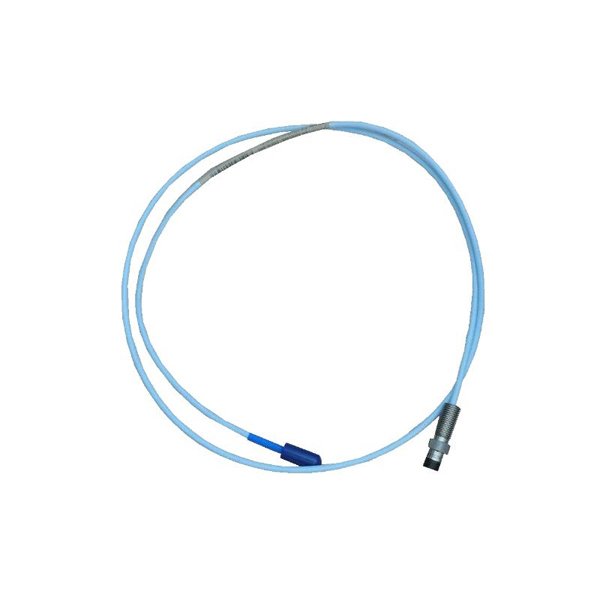

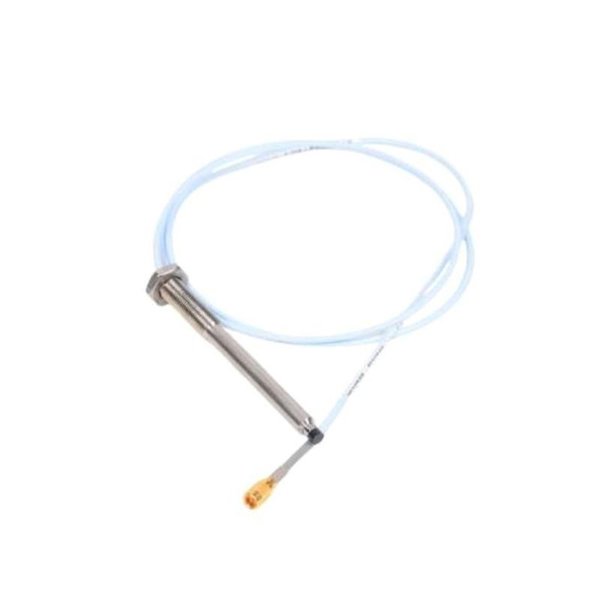

Bently Nevada 330101-00-28-90-02-00 3300 XL 8 mm Proximity Probes

The Bently Nevada 330101-00-28-90-02-00 is a high-precision proximity probe from the 3300 XL 8 mm series, designed for non-contact measurement of shaft displacement and vibration in rotating machinery. Utilizing eddy current technology, it offers accurate and reliable monitoring, essential for machinery protection and condition monitoring systems.

This probe is constructed with durable materials, including a stainless steel case and a polyphenylene sulfide (PPS) tip, ensuring longevity even in harsh industrial environments. It is compatible with Bently Nevada’s 3300 XL Proximitor sensors and extension cables, forming a complete transducer system compliant with API 670 standards.

Product Specifications

Applications

The 330101-00-28-90-02-00 proximity probe is suitable for a wide range of industrial applications, including:

• Turbines: Monitoring shaft vibration and position in steam and gas turbines.

• Compressors: Detecting radial and axial shaft displacement in centrifugal and reciprocating compressors.

• Pumps: Measuring shaft movement to prevent mechanical failures in various pump types.

• Motors and Generators: Ensuring proper alignment and detecting imbalance or misalignment issues.

• Gearboxes: Monitoring gear shaft position and vibration for predictive maintenance.

Product Advantages

• High Accuracy: Provides precise measurements of shaft displacement and vibration, essential for machinery protection.

• Robust Construction: Built with stainless steel and PPS materials, ensuring durability in harsh environments.

• Wide Temperature Range: Operates effectively in extreme temperatures, suitable for various industrial settings.

• Easy Integration: Compatible with Bently Nevada’s 3300 XL Proximitor sensors and extension cables.

• Compliance with Standards: Meets API 670 requirements, ensuring reliability in critical applications.

Frequently Asked Questions (FAQ)

1. What is the primary function of the 330101-00-28-90-02-00 proximity probe?

   • It measures shaft displacement and vibration in rotating machinery using non-contact eddy current technology.

2. Is this probe compatible with other Bently Nevada systems?

   • Yes, it is designed to work seamlessly with 3300 XL Proximitor sensors and extension cables.

3. Can this probe operate in high-temperature environments?

   • Yes, it operates effectively in temperatures ranging from -35°C to +177°C.

4. What materials are used in the construction of the probe?

   • The probe features a stainless steel case and a PPS (polyphenylene sulfide) tip.

5. Does the probe comply with any industry standards?

   • Yes, it meets the API 670 standard for machinery protection.

6. What is the total length of the probe?

   • The probe has a total length of 9.0 meters (29.5 feet).

7. What type of connector does the probe use?

   • It uses a miniature coaxial ClickLoc™ connector with a standard cable.

8. Is the probe suitable for use in humid environments?

   • Yes, it can operate in 100% relative humidity, non-condensing conditions.

9. What is the weight of the probe?

   • The probe weighs 2.907 kg.

10. Can the probe be used in hazardous areas?

    • This specific model does not have agency approval for hazardous areas; however, other models with appropriate certifications are available.
