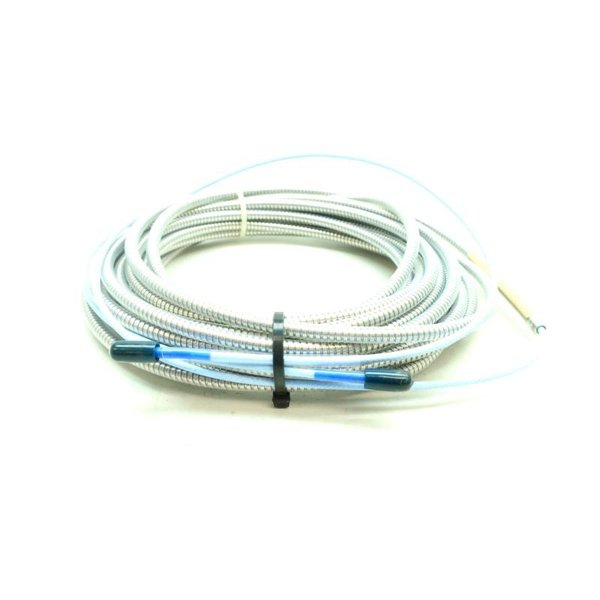

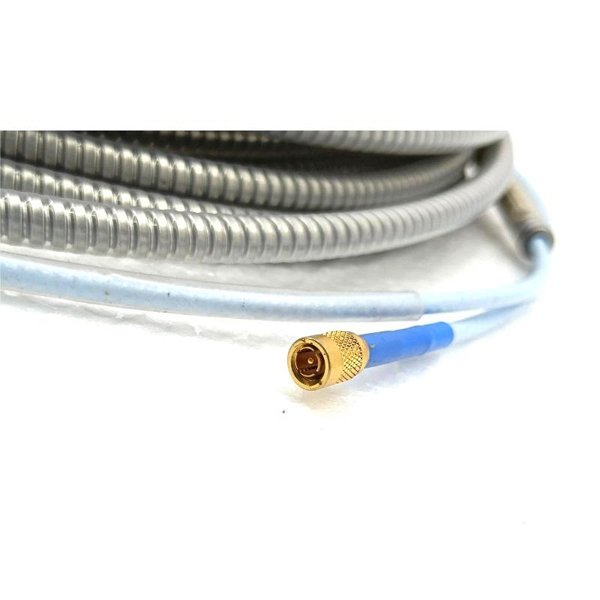

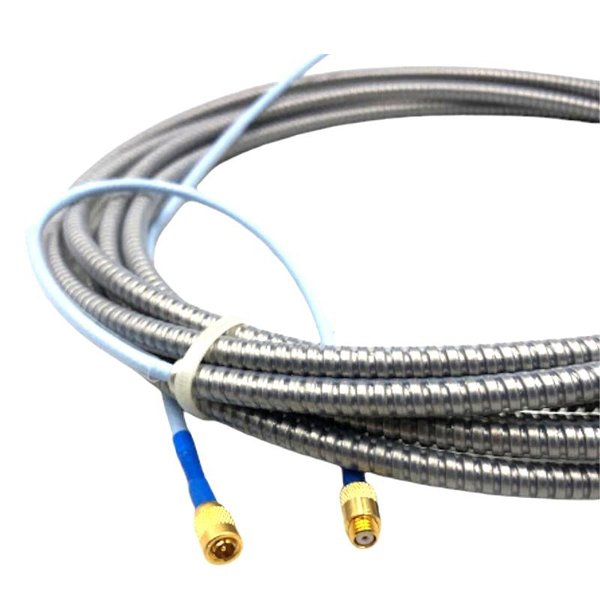

Bently Nevada 330130-085-03-00 3300 XL Standard Extension Cable
Manufacturer:Bently Nevada
Product Number:330130-085-03-00
Product Type:3300 XL Standard Extension Cable
Origin:USA
Cable Length:8.5 meters
Weight:0.876 kg
Views:97
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330130-085-03-00 is part of the 3300 XL 8 mm Proximity Transducer System, acting as the standard extension cable component. It provides robust signal transmission between the proximity probe and the Proximitor sensor. This 8.5-meter cable ensures high-fidelity dynamic and static signal delivery in machinery condition monitoring applications.
Technical Specifications
| Parameter | Value |
|---|---|
| Cable Type | 75Ω triaxial, FEP insulated |
| Connector Type | ClickLoc gold-plated coaxial |
| Cable Length | 8.5 meters (27.9 feet) |
| Weight | 0.876 kg |
| Capacitance | 69.9 pF/m typical |
| Minimum Cable Bend Radius | 25.4 mm (1.0 in) |
| Max Connector Torque | 0.565 N·m (5 in·lbf) |
| Operating Temp Range | -52°C to +177°C |
| Armored Option | Available upon order |
| Compliance | CSA, ATEX, IECEx optional |
Applications
-
Turbine and compressor vibration monitoring
-
Radial and axial position measurement
-
Keyphasor® reference systems
-
Overspeed and rotor dynamics diagnostics
-
Condition-based maintenance programs
Key Advantages
-
Interchangeability: Compatible with all 3300 XL 8 mm components without recalibration
-
ClickLoc™ Connectors: Prevent loosening and reduce installation errors
-
FluidLoc Option: Prevents oil ingress along the cable
-
High EMI/RFI Immunity: Suitable for harsh industrial environments
-
Robust Mechanical Design: CableLoc™ offers 330 N pull strength for durability
-
Compliance: Meets API 670 mechanical and performance requirements
Frequently Asked Questions (FAQ)
Q1: What is the function of the 330130-085-03-00 cable?
A1: It connects the 3300 XL proximity probe to the Proximitor sensor, transmitting accurate vibration and position data.
Q2: Is this extension cable interchangeable with other 3300 XL components?
A2: Yes, it is fully interchangeable without performance loss or recalibration.
Q3: What is the maximum temperature rating for this cable?
A3: The standard cable can operate up to +177°C. Extended Temperature Range versions can handle up to +260°C.
Q4: Can I use this cable with armored protection?
A4: Yes, armored and FluidLoc variants are available for enhanced protection.
Q5: What makes ClickLoc connectors beneficial?
A5: They provide a secure “click” lock with no need for tools, reducing risk of connector failure.
Q6: Is this cable suitable for hazardous environments?
A6: Yes, with proper agency approval options like CSA, ATEX, and IECEx.
Q7: How is this cable protected from electromagnetic interference?
A7: Its triaxial design and shielded construction provide strong EMI/RFI resistance.
Q8: What length options are available besides 8.5 meters?
A8: Lengths range from 3.0 to 9.0 meters in 0.5-meter increments.
Q9: Can it be used with non-XL 3300 series probes?
A9: Yes, though performance defaults to the lower specification of the non-XL components.
Q10: Is calibration needed after replacing this cable?
A10: No, the system is designed for plug-and-play use without bench calibration.
