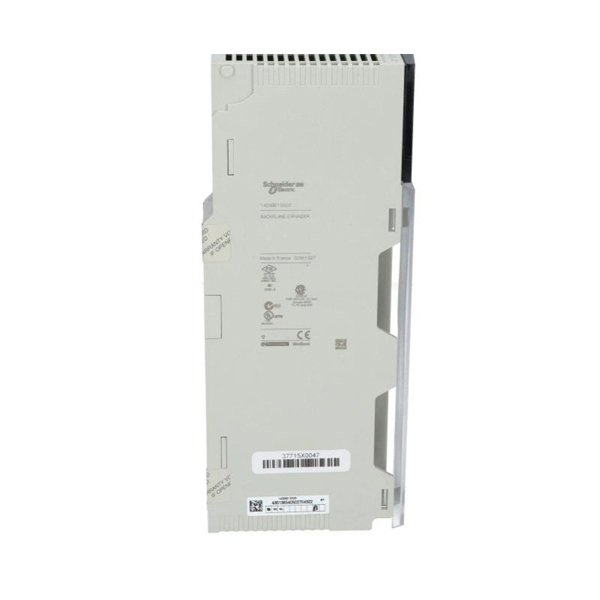

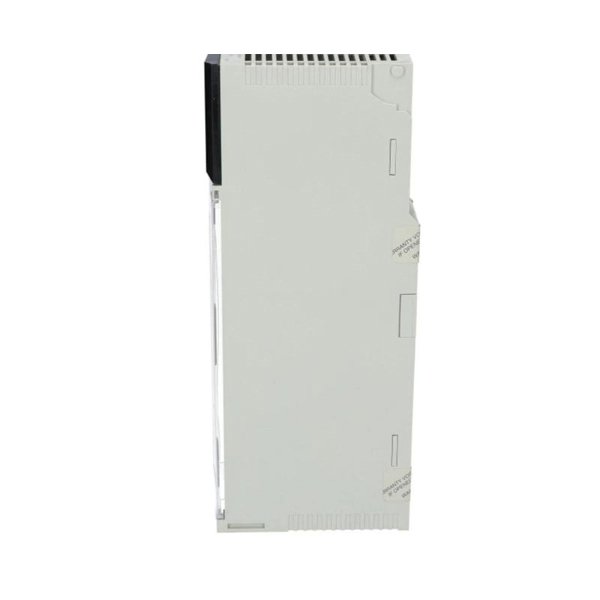

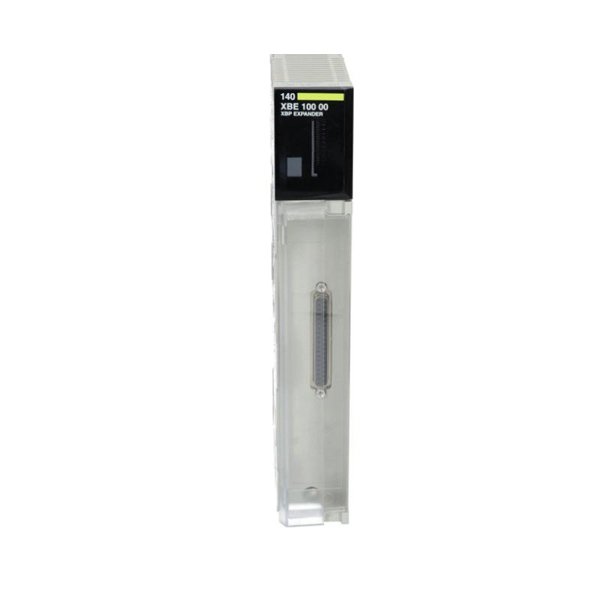

Schneider 140XBE10000 Backplane Expander

The Schneider 140XBE10000 backplane expander is an essential component for extending the capacity and scalability of Schneider Electric’s programmable logic controllers (PLCs) in automation systems. This backplane expander is designed to support the efficient communication and power distribution between the central controller and additional I/O modules, allowing users to create larger, more flexible automation systems.

The 140XBE10000 backplane expander works seamlessly with Schneider Electric’s Modicon range of PLCs, enabling users to expand the system’s capability without compromising performance or reliability. It provides a stable and high-speed connection between modules, ensuring optimal data flow and system operation.

With its compact design and ease of integration, the 140XBE10000 is ideal for industries requiring scalable and customizable automation solutions, including manufacturing, packaging, and process control.

Technical Specifications

Applications

The 140XBE10000 backplane expander is ideal for use in various automation and control systems across multiple industries, including:

• Manufacturing Automation: Enables the expansion of PLC systems in manufacturing plants, supporting larger numbers of I/O modules for controlling complex machines and production lines.

• Process Control Systems: Used in process industries such as chemical plants, oil & gas, and water treatment facilities, the backplane expander supports the increased need for input and output channels in automated processes.

• Packaging Lines: Allows the expansion of PLC systems in packaging applications where multiple machines need to be synchronized and controlled from a central unit.

• Building Automation: Provides flexibility for building management systems by supporting the addition of I/O modules for HVAC, lighting control, and security systems.

• Material Handling Systems: Used in automated warehouses or distribution centers, expanding the system’s I/O capability for controlling conveyors, sorters, and robotic arms.

• Energy Management Systems: Used in industrial energy management applications to monitor and control energy consumption, allowing for better energy efficiency and sustainability.

The ability to expand the backplane system with additional modules makes it a critical solution for industries looking for scalable and efficient automation solutions.

Product Advantages

• Scalability and Flexibility: The 140XBE10000 allows easy expansion of PLC systems by adding up to 10 I/O modules, providing flexibility for systems that require more input and output channels.

• Easy Integration: It is compatible with Schneider Electric’s Modicon M340 and M580 PLCs, making integration simple and reducing setup time.

• Reliable Communication: Utilizes Modbus and CANopen communication protocols to ensure stable and fast data transfer between the backplane and connected I/O modules.

• Wide Operating Temperature Range: With an operating range of -25°C to +70°C, the module can be used in environments with extreme temperatures, offering reliability in harsh conditions.

• Compact Design: The backplane expander is designed to be space-efficient with its compact size (50 x 165 x 310 mm), allowing it to be installed in control panels without occupying excessive space.

• Cost-Effective Expansion: This expander offers a cost-effective solution to expand the I/O capacity of an existing system, reducing the need for a complete system overhaul when additional inputs or outputs are required.

• DIN Rail Mounting: The 140XBE10000 is mounted on a DIN rail, making installation and maintenance easier and faster in industrial environments.

• Improved System Performance: By allowing the expansion of I/O modules without compromising communication or data transfer speeds, the expander helps maintain optimal system performance.

• Compliant with Industry Standards: The module complies with CE, UL, and RoHS standards, ensuring it meets quality and safety requirements for industrial use.

Frequently Asked Questions (FAQ)

Q1: What is the main function of the Schneider 140XBE10000 backplane expander?

A1: The 140XBE10000 backplane expander is used to extend the capacity of Schneider Electric PLC systems by providing additional slots for I/O modules, allowing for more extensive control and monitoring in industrial automation systems.

Q2: Which PLC systems are compatible with the 140XBE10000 backplane expander?

A2: The 140XBE10000 is compatible with the Modicon M340 and M580 PLC systems.

Q3: How many I/O modules can the 140XBE10000 support?

A3: The 140XBE10000 supports up to 10 I/O modules, allowing for the expansion of the PLC system.

Q4: What communication protocols are supported by the backplane expander?

A4: The backplane expander supports Modbus and CANopen communication protocols, ensuring reliable communication with the I/O modules.

Q5: What is the operating temperature range for the 140XBE10000?

A5: The 140XBE10000 operates in a temperature range of -25°C to +70°C, making it suitable for use in a wide range of industrial environments.

Q6: How is the 140XBE10000 mounted?

A6: The backplane expander is mounted on a DIN rail, providing easy installation in control panels or other industrial enclosures.

Q7: Does the 140XBE10000 require an external power supply?

A7: The expander does not require an external power supply, as it is powered by the master controller in the PLC system.

Q8: Is the 140XBE10000 backplane expander easy to install?

A8: Yes, the 140XBE10000 is designed for easy installation on a DIN rail, simplifying the setup and maintenance process.

Q9: Can the 140XBE10000 be used in hazardous environments?

A9: While the 140XBE10000 is built for industrial environments, it is not designed for use in hazardous locations. Additional protection or equipment may be required for such environments.

Q10: How does the backplane expander enhance system performance?

A10: The 140XBE10000 enables the expansion of the I/O system without sacrificing communication or data transfer speeds, ensuring the system performs optimally even with added modules.
