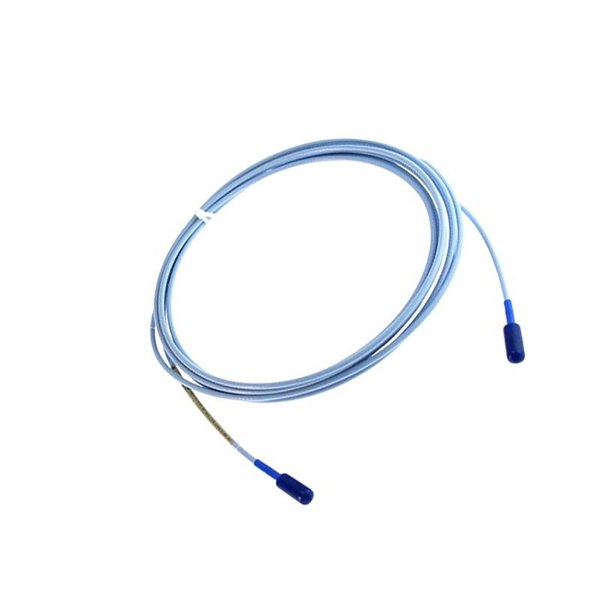

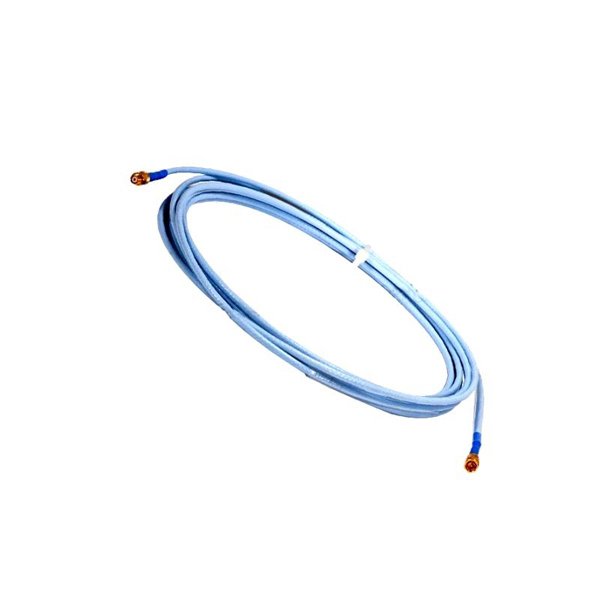

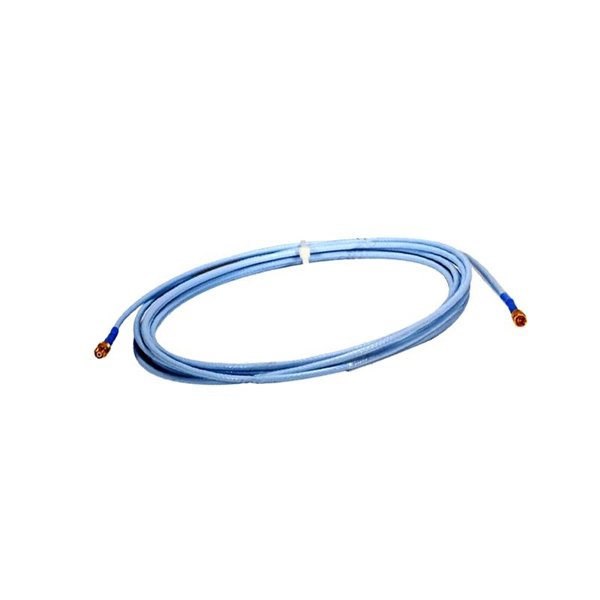

Bently Nevada 330101-00-36-05-02-05 3300 XL 8mm Proximity Probes

The Bently Nevada 330101-00-36-05-02-05 3300 XL 8mm Proximity Probe is an advanced component of the Bently Nevada 3300 XL series—recognized globally for delivering highly accurate vibration and position monitoring on rotating machinery. This particular model, featuring a probe tip diameter of 8 mm and a body length of 36 inches, is optimized for robust industrial environments. Its performance remains consistent under extreme mechanical stress, temperature fluctuation, and exposure to contaminants.

Designed to operate seamlessly with Bently Nevada drivers and monitoring systems, this proximity probe delivers reliable static and dynamic shaft measurements. It is extensively utilized in machinery protection and condition monitoring across critical applications in power generation, oil & gas, manufacturing, and chemical industries. Its proven accuracy and durability make it a cornerstone of predictive maintenance strategies.

Product Specifications

Applications

The Bently Nevada 330101-00-36-05-02-05 Proximity Probe is engineered for mission-critical applications such as:

• Turbomachinery Monitoring

  Protects gas turbines, steam turbines, hydro turbines, and turbo compressors by continuously monitoring shaft vibration and position.

• Rotating Equipment Condition Monitoring

  Suitable for pumps, fans, motors, gearboxes—providing shaft position and vibration data for predictive maintenance.

• Oil & Gas Sector

  Utilized in refineries, pipelines, offshore platforms for safety-critical rotating equipment.

• Power Generation

  Monitors balance-of-plant equipment and turbine-generator shafts to maintain operational reliability.

• Petrochemical & Chemical Processing

  Tracks the mechanical integrity of high-speed rotating equipment and gear-driven systems.

• Heavy Industrial Machinery

  Employed in pulp & paper, mining, steel, and cement industries for real-time shaft monitoring.

Advantages

• Proven Performance

  Decades of field experience confirm exceptional reliability and accuracy in harsh operating conditions.

• Wide Operational Temperature Range

  Functional from -51 °C to +177 °C, suitable for both cryogenic and high-heat machinery.

• Precision Measurements

  Linear output with ±0.25% full-scale error ensures highly accurate vibration and position monitoring.

• Durability

  Stainless steel housing and sealed design provide resistance to dust, oil, water ingress, and mechanical shock.

• High Shock & Vibration Resistance

  Withstands 50 g vibration and 5000 g shock—ideal for rugged environments.

• Superior EMI/RFI Immunity

  Ensures clean signal output even in high electrical noise environments such as power plants and chemical facilities.

• Compatibility

  Works seamlessly with the entire Bently Nevada 3300 XL series drivers, monitors, and System 1 software.

• Simple Integration

  Standard thread mounting allows fast, secure installation into equipment housings.

• Field Serviceability

  Modular design simplifies probe and cable replacement without recalibration.

• Global Certification

  CE, ATEX, CSA, RoHS—ready for deployment in international facilities.

FAQ

1. What is the primary use of the 330101-00-36-05-02-05 Proximity Probe?

It measures shaft vibration and relative position in rotating machinery for protection and condition monitoring.

2. What sensitivity does the probe provide?

200 mV/mil (7.87 mV/μm), industry standard for precise shaft measurements.

3. Is this probe compatible with the Bently Nevada 3500 series?

Yes, it integrates with 3500 series monitoring systems and other 3300 XL drivers.

4. How long is the probe body?

This model is configured with a 36-inch (914 mm) body length.

5. What is the cable length?

Standard total length is 0.5 meter, with extension options available.

6. What is the operating temperature range?

Operates between -51 °C to +177 °C (-60 °F to +350 °F).

7. How is the probe typically installed?

Threaded body design (3/8-24 UNF) allows direct insertion into threaded housings.

8. Can this model withstand high vibration levels?

Yes, it handles up to 50 g vibration and 5000 g shock.

9. Is an armored cable available?

Yes, optional armored extension cables provide added protection in tough environments.

10. What certifications does this probe carry?

It is certified CE, ATEX, CSA, and RoHS compliant for global industrial use.
