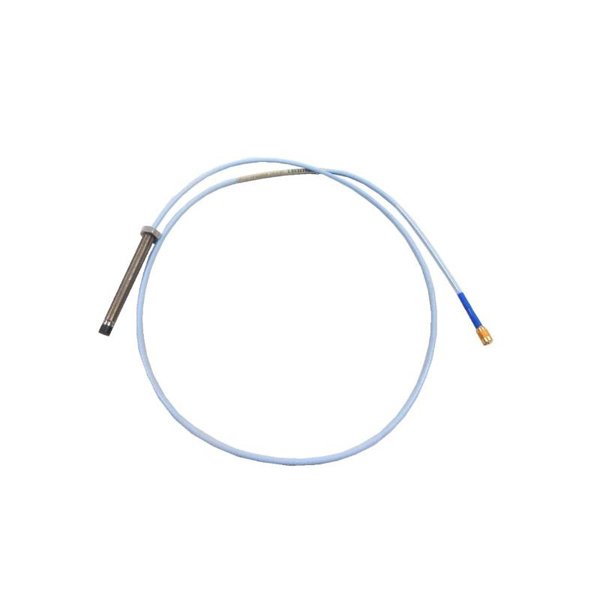

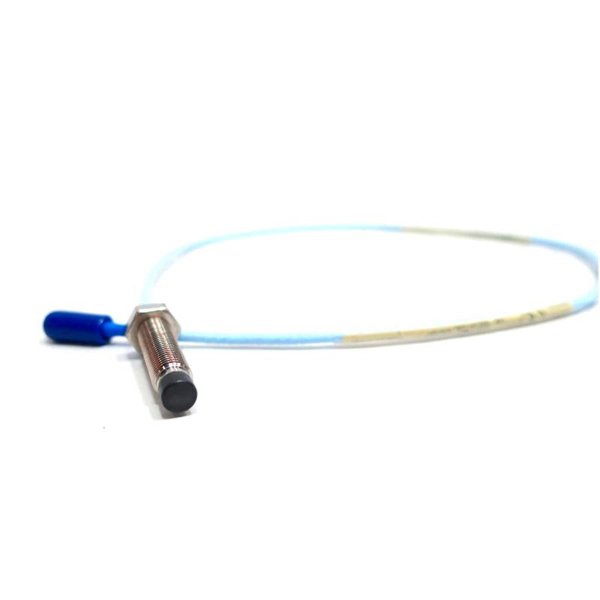

Bently Nevada 330101-00-49-10-02-05 3300 XL 8 mm Proximity Probe

The Bently Nevada 330101-00-49-10-02-05 is part of the 3300 XL 8 mm Proximity Transducer System. It is engineered for reliable static and dynamic measurement of shaft position and vibration in rotating machinery. This proximity probe is widely used in fluid-film bearing machines and complies fully with API 670 standards.

Key Features

• Measures both vibration and shaft position

• API 670 compliant

• Enhanced RFI/EMI immunity

• Interchangeable probe, extension cable, and Proximitor sensor

• Finger-tight ClickLoc connectors for easy installation

• Withstands extreme temperatures and harsh environments

Applications

• Turbomachinery monitoring

• Vibration monitoring on compressors and turbines

• Axial thrust and radial vibration measurement

• Keyphasor and speed referencing

• Condition monitoring in hazardous zones

Advantages

• Easy Installation: SpringLoc terminals and ClickLoc connectors reduce installation time.

• Rugged Design: TipLoc and CableLoc technologies provide superior mechanical strength.

• Cost Efficiency: No bench calibration required; supports field interchangeability.

• Environmental Resistance: Operates in high-temperature and high-humidity environments.

• Compact Mounting: Supports DIN rail or panel mounting.

Technical Specifications

Frequently Asked Questions (FAQ)

Q1: What does the 330101-00-49-10-02-05 measure?

A1: It measures both vibration and position of rotating machinery.

Q2: Can this probe be used in hazardous areas?

A2: Yes, it meets ATEX and IECEx certifications for use in Zone 0 and Zone 2.

Q3: Is the system API 670 compliant?

A3: Yes, it complies fully with API 670 standards for mechanical and electrical configuration.

Q4: What’s the recommended gap voltage?

A4: -9 VDC, which corresponds to about 1.27 mm (50 mils).

Q5: Does it require special tools for installation?

A5: No, ClickLoc connectors and SpringLoc terminals allow tool-free installation.

Q6: Can I mix this probe with non-XL systems?

A6: Yes, but performance will be limited to that of the non-XL components.

Q7: What is the minimum target diameter?

A7: 15.2 mm (0.6 in) flat surface; shaft diameter should be at least 50.8 mm (2 in).

Q8: What type of cable does it use?

A8: 75-ohm triaxial FEP-insulated cable; FluidLoc version optional.

Q9: Is it suitable for extended temperature environments?

A9: Yes, optional ETR models can handle up to 260°C with compatible extension cables.

Q10: Can I replace the probe without recalibration?

A10: Yes, the system supports full interchangeability without the need for calibration.
