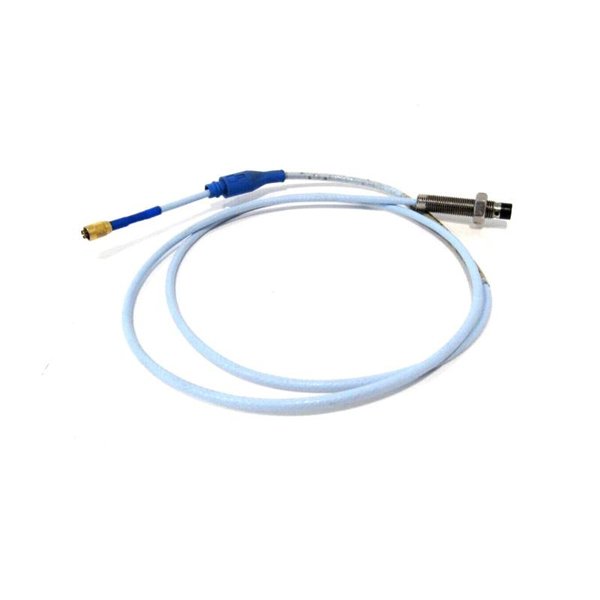

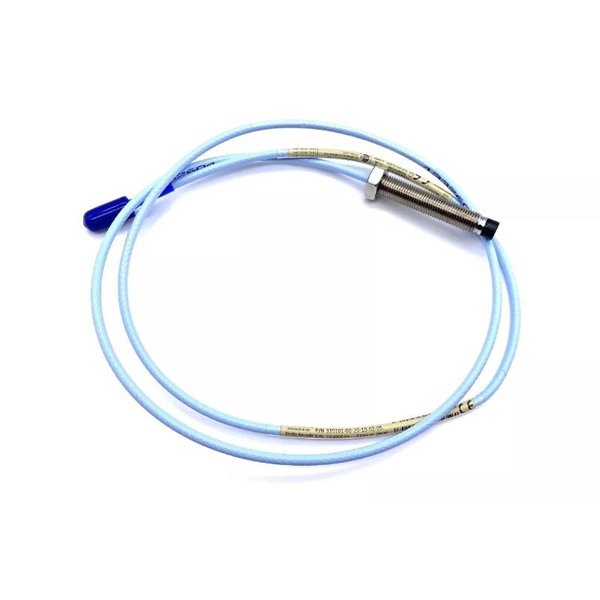

Bently Nevada 330101-00-28-05-02-05 3300 XL 8mm Proximity Probe

The Bently Nevada 330101-00-28-05-02-05 3300 XL 8mm Proximity Probe is a high-precision eddy current transducer designed to measure vibration and shaft displacement in critical rotating machinery. It provides reliable static and dynamic position measurements, suitable for API 670-compliant monitoring systems in turbines, compressors, and pumps. The probe’s robust design ensures stability under harsh industrial conditions.

Technical Specifications

Applications

• Continuous monitoring of high-speed rotating machinery

• Turbines, compressors, and centrifugal pumps

• Detection of shaft vibration and position changes

• API 670-compliant condition monitoring systems

• Hazardous area applications with certified versions

Advantages

• High measurement accuracy with stable performance

• Electrically and mechanically interchangeable with other 3300 series components

• Robust 8 mm design provides better durability than 5 mm probes

• Easy, secure installation with ClickLoc™ connector

• Compatible with extension cables and Proximitor® sensors for flexible system configurations

• Wide operating temperature range ensures reliable operation in industrial environments

FAQ

1. What is the typical measurement range of the 3300 XL 8 mm probe?

The standard range is ±0.127 mm, but it can be configured depending on the application.

2. Can this probe be used in hazardous environments?

Yes, selected models have ATEX, IECEx, and NEPSI certifications.

3. What type of output signal does this probe provide?

It provides a differential AC signal compatible with Proximitor® sensors.

4. Is this probe interchangeable with other 3300 series probes?

Yes, it is electrically and mechanically interchangeable with standard 3300 series components.

5. What connector type does it use?

It uses a miniature coaxial ClickLoc™ connector for secure, tool-free connections.

6. What is the cable impedance of the probe?

The standard cable has 75 Ω impedance.

7. What are the probe thread options?

3/8-24 UNF or M10x1 threads, depending on the model.

8. How durable is the probe in industrial environments?

The 8 mm XL design offers enhanced physical robustness and resistance to vibration and impact.

9. What is the operating temperature range?

It operates reliably between -40°C to 125°C.

10. What machinery types are suitable for this probe?

Ideal for turbines, compressors, centrifugal pumps, and other high-speed rotating equipment.
