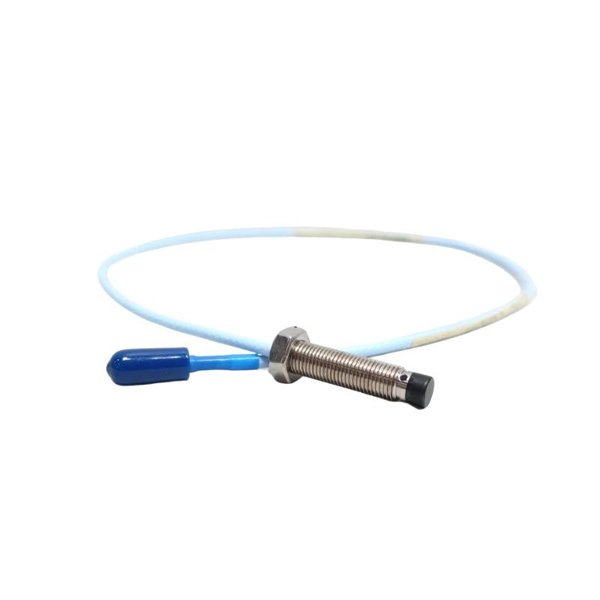

Bently Nevada 330101-00-15-05-01-00 3300 XL 8 mm Proximity Probe

The Bently Nevada 330101-00-15-05-01-00 is part of the trusted 3300 XL 8 mm Proximity Transducer System, which is globally recognized for its accuracy, reliability, and long-term stability in critical machinery monitoring applications. As a proximity probe, it plays an essential role in non-contact measurement of shaft vibration, position, and displacement, ensuring optimal performance of rotating equipment.

This specific model features a 15-foot probe length, a 5-foot system length, and an M10 x 1 threaded body with a straight connector, making it ideal for European and international machinery configurations. Engineered to meet API 670 standards, this probe is designed for demanding environments such as power generation, petrochemical processing, and heavy industry.

Product Specifications

Product Applications

The 330101-00-15-05-01-00 proximity probe is used in diverse industrial sectors where precise vibration and position monitoring is essential. Its most common applications include:

• Steam and Gas Turbines – For real-time rotor vibration and axial position monitoring

• Compressors and Pumps – For ensuring operational stability and minimizing wear

• Electric Generators – For shaft alignment and bearing wear detection

• Petrochemical Equipment – For condition-based maintenance and fault prevention

• Hydraulic Turbines – For assessing dynamic movement and imbalance

• Gearboxes and Motors – For early detection of looseness, misalignment, and eccentricity

The probe is vital in protecting high-value rotating assets from failure by offering immediate insights into mechanical condition.

Product Advantages

• High Signal Integrity: Designed with enhanced shielding for reliable signal transmission in noisy industrial environments

• API 670 Compliant: Fully compliant with the API standard for condition monitoring and machinery protection

• Rugged Construction: Stainless steel body ensures longevity and performance under corrosive and mechanical stress

• Custom Fit: Threaded M10 x 1 design is ideal for installations where metric threading is required

• Stable Output: Maintains a linear and temperature-stable output over the full sensing range

• Long Cable Run: The 15-foot length offers extended installation flexibility without signal degradation

• Flexible Integration: Easily pairs with 3300 XL extension cables and Proximitor sensors

• Low Maintenance: Designed for long-term deployment with minimal recalibration or replacement

• EMI/RFI Immunity: High immunity to electromagnetic and radio frequency interference

• Backwards Compatibility: Suitable for retrofitting into legacy Bently Nevada systems

Frequently Asked Questions (FAQ)

1. What is the sensing range of this proximity probe?

   It senses accurately from 0.25 mm to 2.0 mm (10 to 80 mils) in a linear fashion.

2. What kind of threading does this probe use?

   This model uses an M10 x 1 metric thread, common in European-designed equipment.

3. Can the probe operate in high-temperature environments?

   Yes, it operates reliably between -35°C and +120°C.

4. Is this probe suitable for both radial and thrust position measurements?

   Yes, it can be used for both applications depending on installation.

5. What does the straight connector offer in terms of installation?

   It provides a secure and standard connection ideal for straight-line cable routing.

6. Can I use this probe with a Bently Nevada 330130 extension cable?

   Yes, it is designed to be used with 330130 series extension cables.

7. What industries commonly use this model?

   Power generation, oil & gas, petrochemicals, pulp & paper, and marine industries.

8. Is the probe resistant to electrical noise?

   Yes, it features robust shielding for enhanced EMI and RFI protection.

9. What is the weight of this proximity probe?

   0.162 kg for the probe itself.

10. Does it need regular recalibration?

    Under proper installation conditions, it typically requires little to no recalibration.
