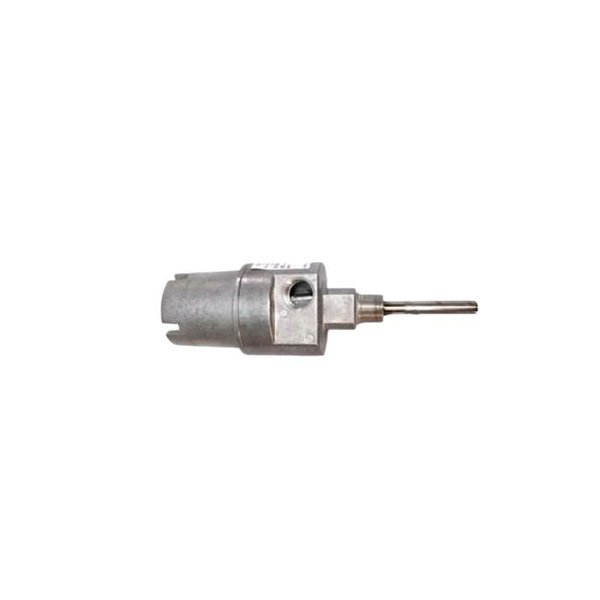

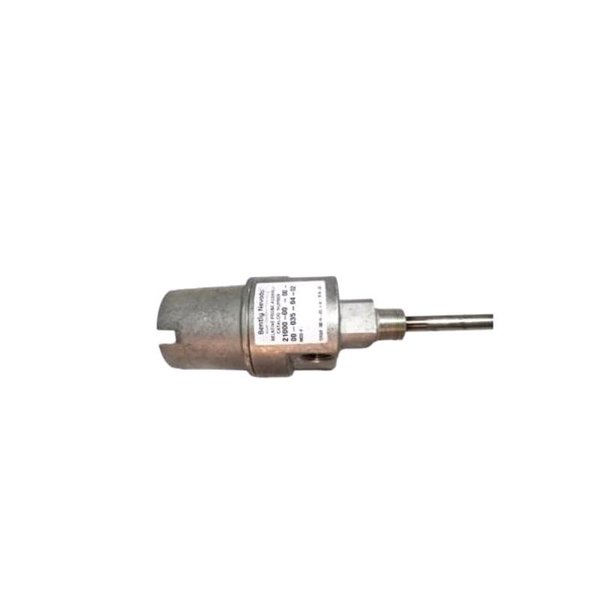

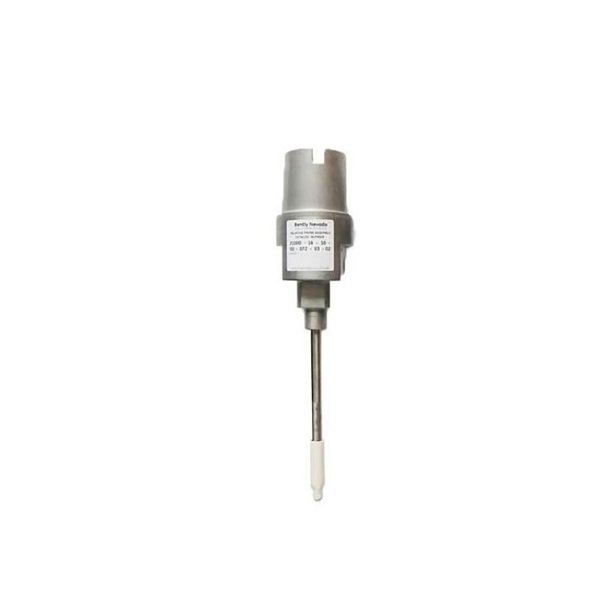

Bently Nevada 21000-16-10-00-087-03-02 Proximity Probe Housing Assemblies

The Bently Nevada 21000-16-10-00-087-03-02 Proximity Probe Housing Assembly is a vital component used in industrial monitoring systems where precision and durability are critical. Designed by Bently Nevada, a global leader in condition monitoring and asset protection systems, this housing assembly is engineered to accommodate proximity probes, protecting them from harsh environmental factors while ensuring accurate data acquisition.

This model is part of the 21000 Series, which is widely deployed in heavy industrial applications, particularly in turbines, compressors, motors, and pumps. The housing assembly ensures reliable probe alignment and mechanical stability, making it a trusted choice for machine condition monitoring in critical operations.

Manufactured with robust materials, this unit offers high resistance to mechanical stress, temperature variations, and contamination from dust, oil, and moisture. The design also supports flexible mounting options, facilitating easy integration into various machinery setups.

Product Specifications

Product Applications

The Bently Nevada 21000-16-10-00-087-03-02 is used across a broad spectrum of industries where real-time monitoring and diagnostics are essential for operational safety and efficiency. Typical applications include:

• Steam and Gas Turbines: For shaft vibration and position monitoring

• Compressors: Ensuring efficient and safe operation by monitoring rotor dynamics

• Industrial Pumps: Providing insights into misalignment and cavitation

• Electric Motors and Generators: To detect imbalance or early-stage mechanical wear

• Gearboxes: For early fault detection in transmission systems

• Petrochemical and Refining Plants: Where rugged, sealed housings are essential due to harsh environments

Product Advantages

• Robust Design: Built from high-grade stainless steel, ideal for corrosive and high-vibration environments.

• Precise Sensor Alignment: Ensures accurate probe placement for optimal signal reliability.

• Environmental Protection: Offers superior protection against oil, dust, and moisture ingress.

• Flexible Installation: Compatible with a wide range of mounting options and sensor configurations.

• Reduced Downtime: Minimizes the risk of sensor damage, leading to fewer replacements and maintenance intervals.

• Field-Proven: Extensively tested and used in critical industrial applications globally.

• Standardized Compliance: Meets industry regulations like API 670 and ISO 10816.

• Customizable Configurations: Can be tailored for conduit entry size, mounting angle, or probe type.

• Extended Temperature Range: Reliable operation even in extreme industrial temperatures.

• OEM Certified: Developed and certified by Bently Nevada, a trusted name in machinery protection.

Frequently Asked Questions (FAQ)

1. What is the function of the 21000-16-10-00-087-03-02 housing assembly?

   It serves to protect proximity probes from harsh environments while ensuring correct alignment for accurate measurement.

2. Is this housing compatible with the 3300 XL probe series?

   Yes, it is fully compatible with most Bently Nevada proximity probes, including the 3300 XL series.

3. Can this housing be installed outdoors?

   Yes, it features weatherproofing and dust/oil protection suitable for outdoor and harsh industrial environments.

4. What material is used for the housing construction?

   The housing is constructed from corrosion-resistant stainless steel, typically grade 316.

5. What is the temperature range it can withstand?

   The unit operates effectively from -40°C to +177°C (-40°F to +350°F).

6. Does it meet industry standards like API 670?

   Yes, the design complies with API 670 and ISO 10816 standards for machinery protection systems.

7. Can I use it in explosive environments?

   With the appropriate certifications (e.g., ATEX), yes—it can be used in classified hazardous areas.

8. How is the proximity probe mounted within the housing?

   The probe is typically inserted through a threaded mount and secured with a locking nut for precise placement.

9. Is there a specific orientation required for installation?

   While flexible in design, it is recommended to follow manufacturer guidance for optimal probe orientation.

10. How often does the housing require maintenance?

    Minimal maintenance is required. However, periodic inspection is advised during regular system checks.
