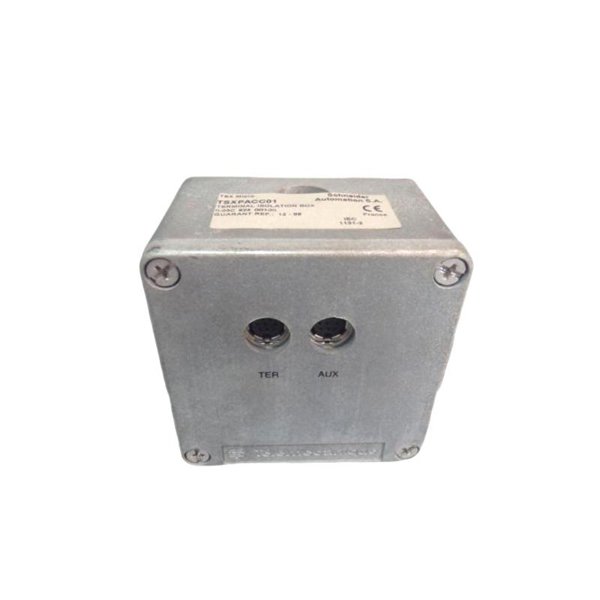

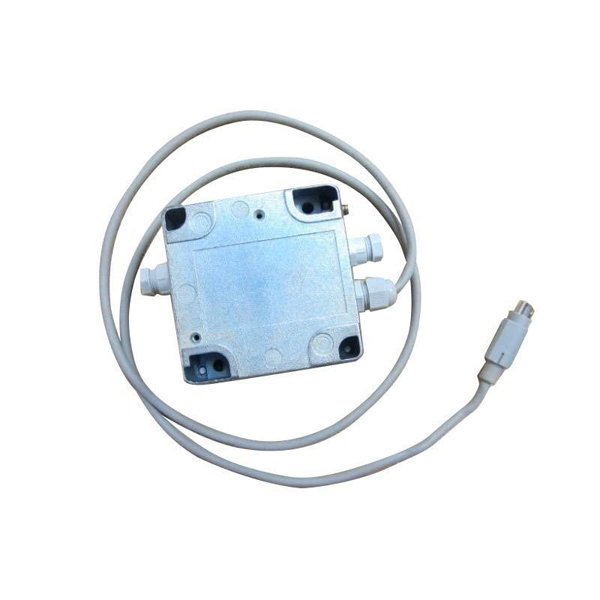

Schneider TSXPACC01 Terminal Port Connection Box

The Schneider TSXPACC01 Terminal Port Connection Box is a specialized accessory from the Modicon Premium automation platform, designed to facilitate the connection of operator terminals and programming tools to PLC processors. It provides a structured interface for connecting Human-Machine Interfaces (HMI), programming PCs, or other serial communication devices to the Modicon PLC series via RS232 or RS485 communication ports.

Compact, durable, and easy to install, the TSXPACC01 helps streamline communication and system diagnostics in automation environments. Its integration into a control cabinet or on-site machine panel ensures safe and efficient data access without interrupting system operation. Whether used for commissioning, maintenance, or runtime monitoring, this terminal port connection box enhances the accessibility and flexibility of industrial automation systems.

Product Specifications

Product Applications

The TSXPACC01 is used primarily in environments where ease of access to programming or operator interfaces is essential. Its core applications include:

• Programming Port Extension: Acts as an accessible programming port extension from a controller inside a cabinet to the outside for easy laptop or HMI connection.

• Industrial Machinery: Installed on machine panels for quick connection of HMIs or diagnostic tools in packaging, CNC, and conveyor systems.

• Process Control Systems: Used in SCADA systems to connect supervisory terminals to Modicon PLCs without disturbing control wiring.

• Maintenance and Troubleshooting: Allows quick connection of diagnostic or configuration tools for real-time PLC monitoring and error resolution.

• Control Cabinets: Installed externally for operator access, while the PLC remains safely mounted inside the panel.

• Training and Simulation: Useful in educational or simulated environments where frequent controller connections are required.

Product Advantages

• Simplified Interface Access: Allows connection to controllers without opening control cabinets, improving safety and convenience.

• Compact Design: Its small footprint makes it suitable for tight spaces on cabinet doors or machine panels.

• Versatile Compatibility: Works seamlessly with Modicon TSX Premium processors and standard serial tools.

• No External Power Needed: Passive device that simplifies installation and reduces system complexity.

• Industrial-Grade Durability: Built using high-quality thermoplastic material that resists heat, vibration, and mechanical wear.

• Fast Maintenance Turnaround: Enables rapid diagnostics and reprogramming by providing easy access to communication ports.

• Reduces Wear on PLC Ports: Acts as a buffer, extending port lifespan on expensive PLC hardware.

• Standardized Connectivity: Uses industry-standard RJ45 port and Schneider serial cables for fast, reliable communication.

• Clean Panel Design: Helps organize and maintain a clean, professional cabinet layout.

• Cost-Effective: Provides essential functionality at minimal cost, supporting efficient automation design.

Frequently Asked Questions (FAQ)

1. What is the primary use of the TSXPACC01?

   It provides a convenient external communication port for connecting programming or operator interface devices to a Modicon TSX PLC.

2. Is the TSXPACC01 compatible with all Schneider PLCs?

   It is specifically designed for use with TSX Premium processors such as TSX P57 models.

3. Does the TSXPACC01 require a separate power supply?

   No, it is a passive device and requires no external power source.

4. What type of communication does it support?

   It supports serial RS232 and RS485 communication.

5. Can I use a standard Ethernet cable for this device?

   No, although the port looks like an RJ45, it is used for serial communication and requires Schneider serial cables like TSXCRJMD25.

6. How is it mounted?

   It is panel-mounted and typically installed on cabinet doors or control panels.

7. What are the environmental tolerances of this product?

   It operates between 0°C and +60°C and can be stored between -25°C and +85°C.

8. What is the weight and size of the device?

   The module weighs 0.69 kg and measures 65 x 195 x 215 mm.

9. Is it safe to use in industrial environments?

   Yes, it is CE and UL certified, and built from industrial-grade materials for rugged environments.

10. What devices can be connected to the TSXPACC01?

    Programming laptops, HMIs, diagnostic tools, and communication adapters using Schneider serial cables.
