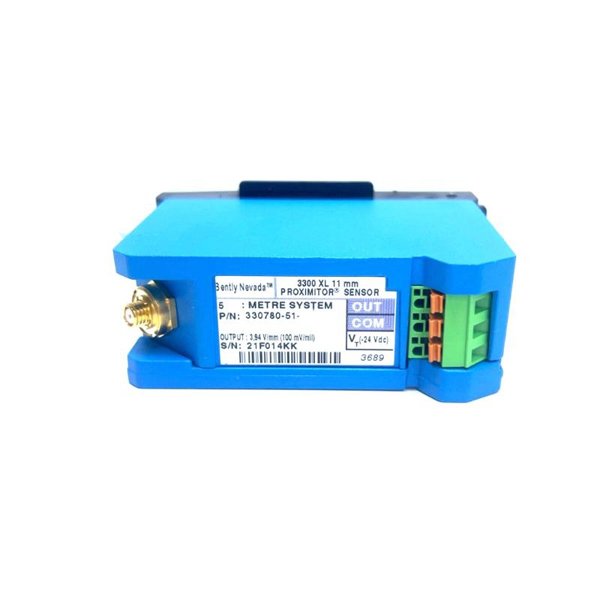

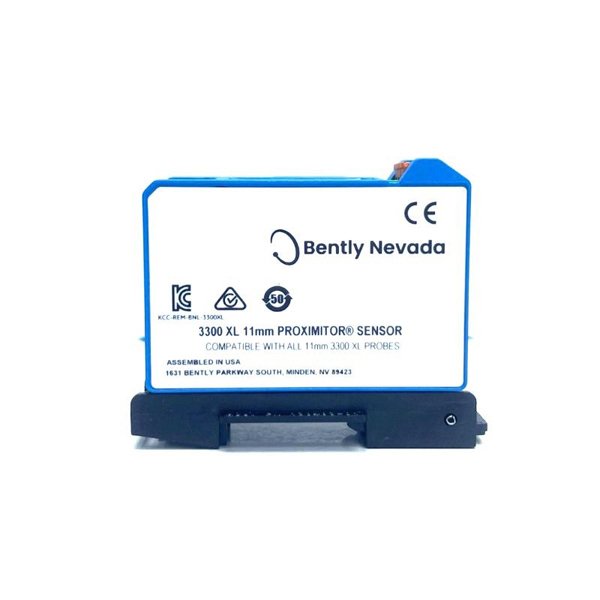

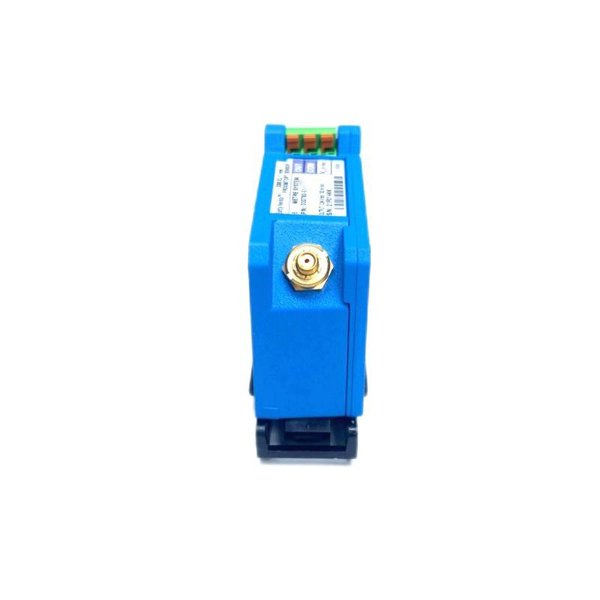

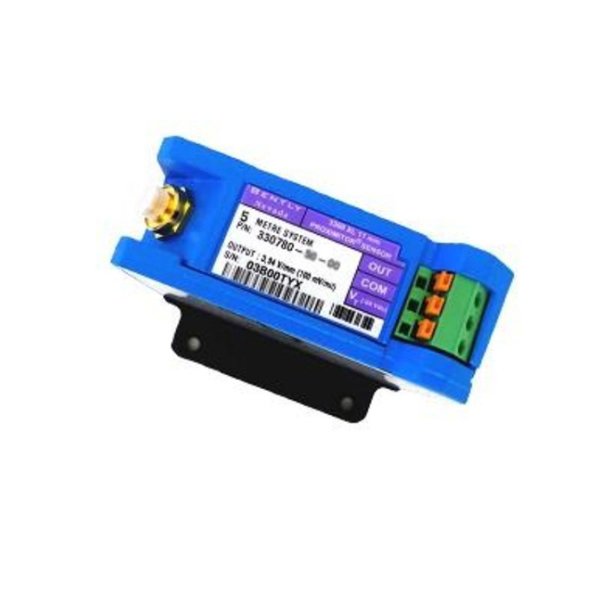

Bently Nevada 330780-51-CN 3300 XL 11 mm Proximitor Sensor
Manufacturer:Bently Nevada
Product Number:330780-51-CN
Product Type:3300 XL 11 mm Proximitor Sensor
Origin:USA
Total Length:5.0 meters
Weight:0.255 kg
Views:38
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330780-51-CN is part of the 3300 XL 11 mm Proximity Transducer System, designed for non-contact vibration and position measurements in demanding environments. This system includes a proximity probe, extension cable, and Proximitor Sensor with a 5.0-meter total system length, DIN rail mounting, and high linear accuracy. It is ideal for fluid-film bearing machinery and applications needing extended linear range.
Product Applications
-
Axial (thrust) position monitoring
-
Differential expansion measurements (e.g., steam turbines)
-
Rod drop or position in reciprocating compressors
-
Tachometer and zero-speed detection
-
Phase reference (Keyphasor®) signals
Product Advantages
-
Extended linear range (up to 4.5 mm linear, 5.0 mm extended)
-
DIN and panel mounting flexibility
-
High RFI/EMI immunity, CE compliant
-
SpringLoc terminal blocks for tool-free wiring
-
Durable construction with robust cable/connector locking
-
SIL2/SIL3 capable for safety systems
-
Certified for hazardous areas (ATEX, IECEx, CSA)
Technical Specifications
| Parameter | Value |
|---|---|
| System Type | Proximity Transducer System |
| Output Scale | 3.94 V/mm (100 mV/mil) |
| Frequency Response | 0–8 kHz |
| Linear Range | 0.5 to 4.5 mm |
| Recommended Gap | 2.5 mm |
| System Length | 5.0 meters |
| Sensor Material | A380 Aluminum |
| Probe Material | AISI 304 Stainless Steel |
| Sensor Weight | 0.255 kg (255 g) |
| Operating Temperature | -52°C to +100°C (Sensor) |
| Probe Temp Range | -52°C to +177°C |
| Humidity | 100% condensing (non-submersible) |
| Compliance | CE, FCC, ATEX, IECEx, RoHS |
| Mounting Type | DIN Rail |
Frequently Asked Questions (FAQ)
Q1: What is the main purpose of the 330780-51-CN Proximitor Sensor?
A1: It measures non-contact vibration and displacement, typically in axial position monitoring.
Q2: What is the output scale of this sensor?
A2: 3.94 V/mm or 100 mV/mil.
Q3: Can it be used in hazardous environments?
A3: Yes, it is certified for ATEX, IECEx, and other global hazardous area standards.
Q4: What is the maximum linear range?
A4: The linear range is 0.5 to 4.5 mm; extended DSL up to 5.0 mm.
Q5: Is it suitable for high-density installations?
A5: Yes, it supports DIN rail mounting for compact installations.
Q6: What is the total system length of this model?
A6: 5.0 meters, including the probe and extension cable.
Q7: What’s the recommended target material for calibration?
A7: AISI 4140 steel.
Q8: Does it resist electromagnetic interference?
A8: Yes, it features enhanced RFI/EMI immunity.
Q9: Is special wiring required?
A9: It’s recommended to use a 3-conductor shielded triad cable.
Q10: Can I use older 7200-series components with this sensor?
A10: No, full replacement with 3300 XL 11 mm components is required.
