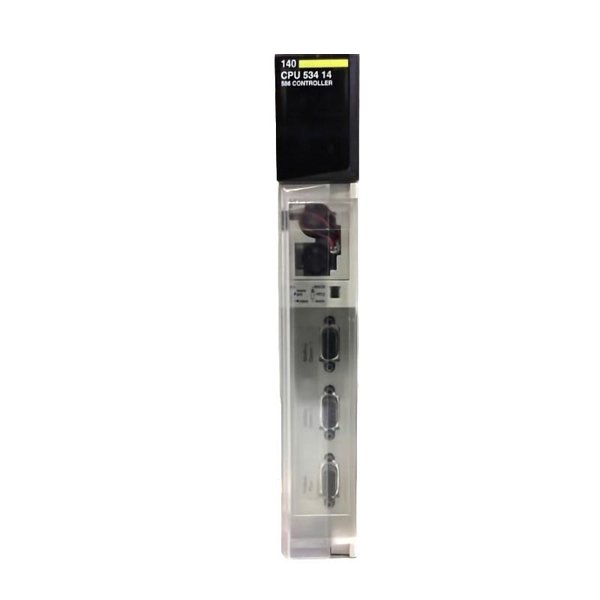

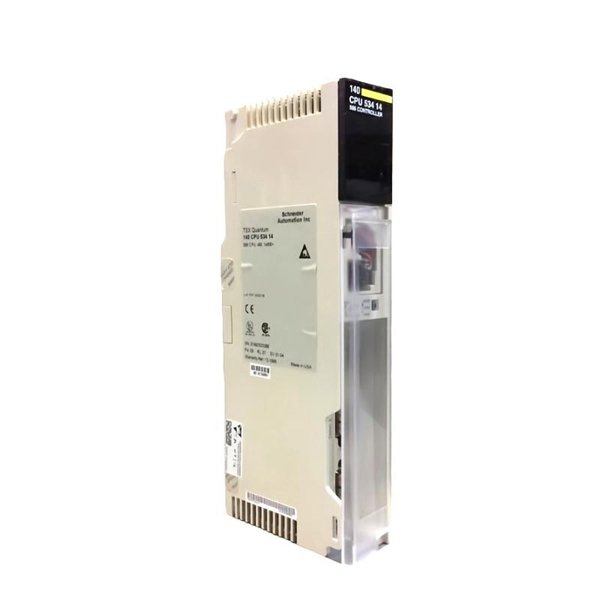

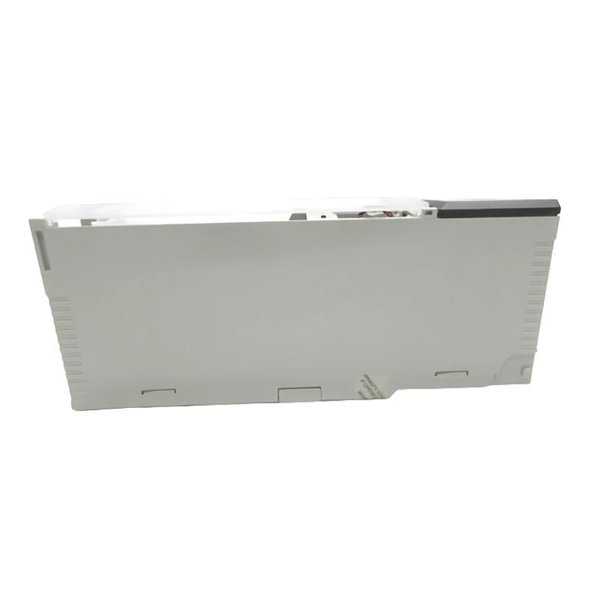

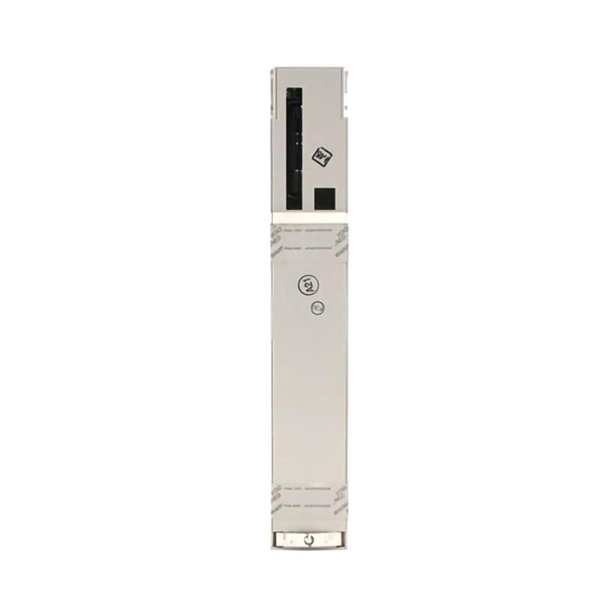

Schneider 140CPU53414UC CPU Module
Manufacturer:Schneider
Product Number:140CPU53414UC
Product Type:CPU Module
Origin:France
Dimensions:103.9 × 40.3 × 250 mm
Weight:0.522 kg
Views:24
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Schneider Electric 140CPU53414UC is a high-performance central processing unit (CPU) module from the Modicon Quantum automation platform. Designed for demanding industrial control applications, this module delivers powerful processing capabilities and advanced networking features to meet the evolving requirements of automation and process control systems.
Featuring robust memory capacity, fast execution speed, and multiple communication ports, the 140CPU53414UC plays a central role in coordinating programmable logic control (PLC) operations in a wide array of industries. It is particularly suited for mission-critical tasks such as batch processing, continuous manufacturing, SCADA integration, and real-time safety systems.
The unit supports Unity Pro programming and seamlessly integrates with other Quantum I/O and communication modules, providing a modular and scalable architecture for industrial automation systems. With a history of reliability, it has been deployed in everything from oil & gas plants to water treatment facilities and large-scale manufacturing lines.
Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | 140CPU53414UC |
| Product Family | Modicon Quantum PLC Series |
| Processor Type | 80486-based CPU |
| Memory (User Logic) | 544 KB |
| Extended Memory | Optional (up to 2 MB via memory card) |
| Execution Time (Boolean) | 0.1 μs per instruction |
| Program Language Support | Ladder, Structured Text, Function Block, Instruction List |
| Communication Ports | 1 x Modbus RS-232, 1 x Modbus Plus, 2 x Local I/O ports, 1 x Ethernet TCP/IP |
| Programming Software | Unity Pro (Now EcoStruxure Control Expert) |
| Backplane Compatibility | Quantum backplane |
| Watchdog Function | Integrated |
| Redundancy Support | Yes (Hot Standby, with appropriate configuration) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Power Consumption | 5.5 W |
| Power Supply Voltage | 5 V DC from backplane |
| Dimensions (H × W × D) | 103.9 × 40.3 × 250 mm |
| Weight | 0.522 kg |
| Certifications | CE, UL, CSA, ATEX, FM, RoHS |
Product Applications
The 140CPU53414UC is deployed across various industrial sectors where automation, reliability, and real-time control are essential. Key applications include:
-
Oil & Gas Facilities
Controls compressors, pumps, and remote pipeline automation systems.
-
Chemical and Petrochemical Plants
Manages complex batch processes and continuous control loops.
-
Water and Wastewater Treatment
Operates filtration systems, pumps, and SCADA data acquisition platforms.
-
Power Generation and Distribution
Coordinates turbine control, substation automation, and grid balancing.
-
Food and Beverage Industry
Ensures precision control in bottling, packaging, and recipe management.
-
Pharmaceutical Manufacturing
Used in validated control environments requiring tight regulation and traceability.
Key Advantages
-
High Processing Speed
Executes logic operations at 0.1 μs per Boolean instruction, suitable for time-sensitive control applications.
-
Modular Scalability
Fully compatible with the Modicon Quantum platform, allowing flexible expansion with I/O and communication modules.
-
Robust Communication
Features Modbus, Modbus Plus, and Ethernet TCP/IP ports for seamless integration with SCADA and third-party devices.
-
Redundancy Ready
Supports Hot Standby CPU configurations for high-availability systems.
-
Broad Software Support
Programmed using Unity Pro / EcoStruxure Control Expert, enabling reusable code blocks, diagnostics, and online editing.
-
Industry Certifications
Meets global standards for industrial automation, ensuring safe and compliant deployment across regulated industries.
-
Proven Reliability
Deployed globally in critical infrastructure projects with a track record of long-term stability.
Frequently Asked Questions (FAQ)
1. What is the function of the 140CPU53414UC module?
It acts as the central processing unit of the Modicon Quantum PLC system, executing control logic and managing communication.
2. Which software is used to program this CPU?
Unity Pro, now known as EcoStruxure Control Expert, is used to develop, download, and monitor programs.
3. Does it support redundancy?
Yes, it can be used in a Hot Standby configuration with another compatible CPU module.
4. Can this CPU communicate over Ethernet?
Yes, it has an Ethernet TCP/IP port for SCADA communication and network integration.
5. What type of I/O modules are compatible with it?
It supports all standard Modicon Quantum I/O modules via the Quantum backplane.
6. What’s the user memory size?
It has 544 KB of user logic memory, with optional memory expansion available.
7. How is the CPU module powered?
It receives 5 V DC from the Quantum rack’s backplane power supply.
8. Is this CPU suitable for mission-critical applications?
Yes, especially with its support for redundancy and wide communication protocols.
9. What is the operating temperature range?
It operates reliably between 0°C and 60°C.
10. Is the firmware upgradable?
Yes, firmware updates can be performed via the Unity Pro software.
