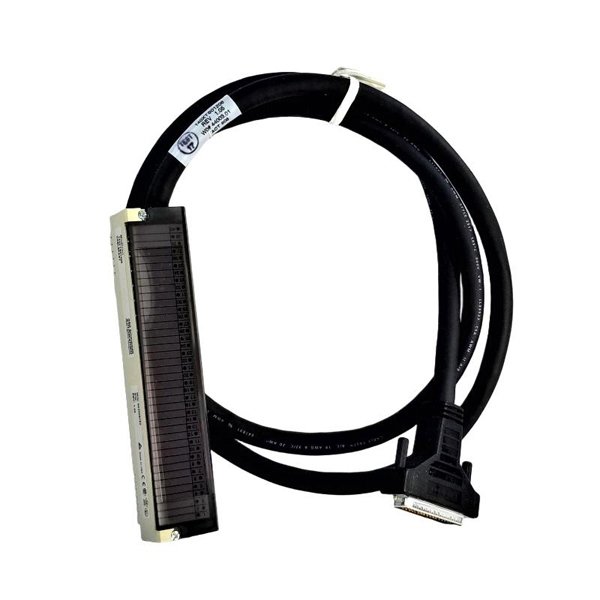

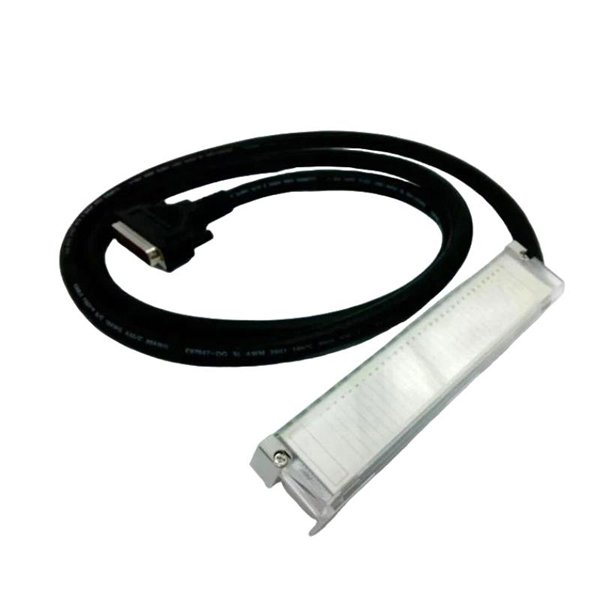

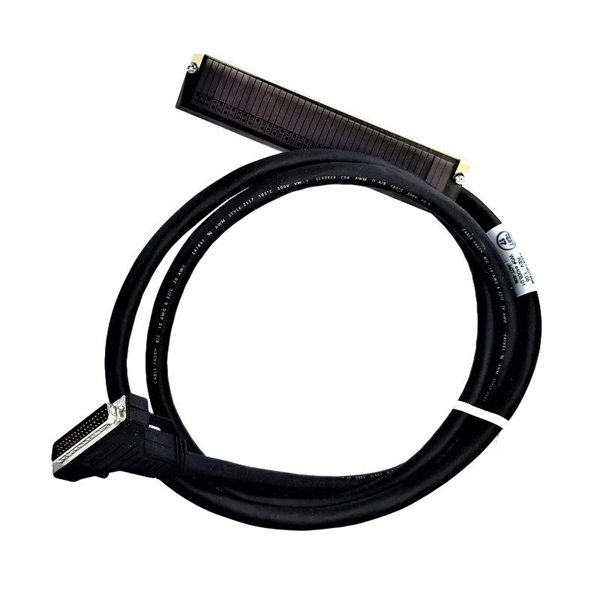

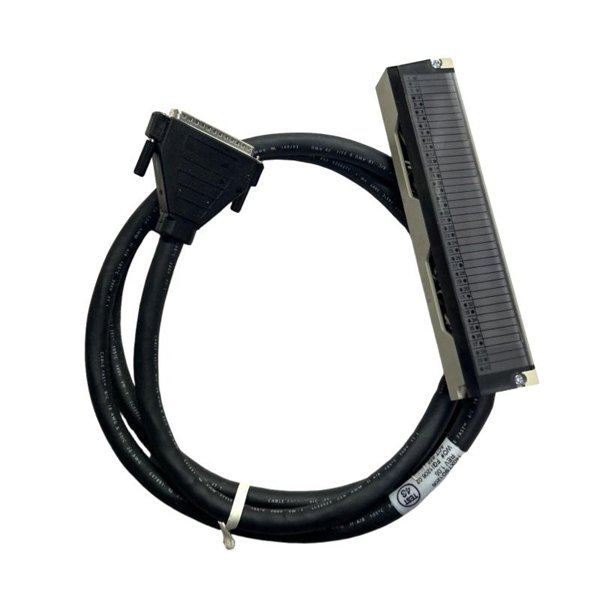

Schneider 140XTS01206 CableFast System Cable

The Schneider 140XTS01206 is a 1.8 meters CableFast system cable engineered for use with the Modicon Quantum automation platform. Designed to provide quick and reliable connections between I/O base units and system interface modules, this cable helps simplify installation, reduce wiring errors, and improve overall system integrity in industrial environments.

As part of Schneider Electric’s modular automation solutions, the 140XTS01206 features pre-fabricated, factory-tested connectors that eliminate the need for field crimping or custom cable cutting. This results in a plug-and-play wiring system that supports fast deployment in high-demand applications such as manufacturing automation, energy management, water treatment, and more.

Technical Specifications

Product Applications

The 140XTS01206 CableFast cable is widely used in industrial automation and process control systems, particularly in environments where time-saving installation and cable integrity are essential. It is suitable for:

• Discrete manufacturing plants requiring modular and expandable automation.

• Energy sector installations including power plants and substations.

• Oil & gas field systems with rugged cabling requirements.

• Pharmaceutical production lines needing clean, reliable cable routing.

• Food and beverage plants, where quick installation reduces downtime.

• Water treatment facilities requiring organized, EMI-shielded cabling.

Key Advantages

• Plug-and-Play Ready

  Pre-terminated connectors make setup quick and minimize human error during wiring.

• Enhanced Signal Integrity

  Double shielding (foil and braid) ensures electromagnetic noise immunity in electrically noisy environments.

• High Compatibility

  Fully compatible with Modicon Quantum series CableFast-enabled I/O and interface modules.

• Time-Efficient

  Reduces installation and troubleshooting time, lowering overall project timelines.

• Long-Term Reliability

  Industrial-grade construction with robust materials ensures lasting performance in harsh environments.

• Modular System Design

  Supports clean cable layouts and system modularity for easy future expansions.

Frequently Asked Questions (FAQ)

1. What is the primary use of the 140XTS01206 cable?

It connects Modicon Quantum I/O base modules to interface modules using the CableFast system.

2. Is the cable suitable for both analog and discrete signals?

Yes, it supports both analog and discrete signals depending on the modules connected.

3. Can this cable be extended by connecting two cables together?

No, it’s not recommended to daisy-chain or extend this cable. Use longer factory cables if required.

4. Does it require any special tools for installation?

No special tools are needed. The connectors are factory-assembled for direct plug-in.

5. Is the cable resistant to electromagnetic interference?

Yes, the cable features dual shielding to protect against EMI, ensuring signal clarity.

6. What is the voltage and current handling capability?

It’s rated for 30V and up to 1.0 A per signal line, which is typical for control signal transmission.

7. Can it be installed in outdoor environments?

It is not specifically rated for outdoor use without additional protection or conduit.

8. Are the connectors removable or replaceable?

No, connectors are fixed and tested during manufacturing to ensure reliability.

9. What is the minimum bending radius for this cable?

The minimum bend radius is approximately 5 times the cable diameter, or ~60 mm.

10. Is the 140XTS01206 compliant with industry certifications?

Yes, it meets CE and RoHS standards and is UL Recognized for industrial use.
