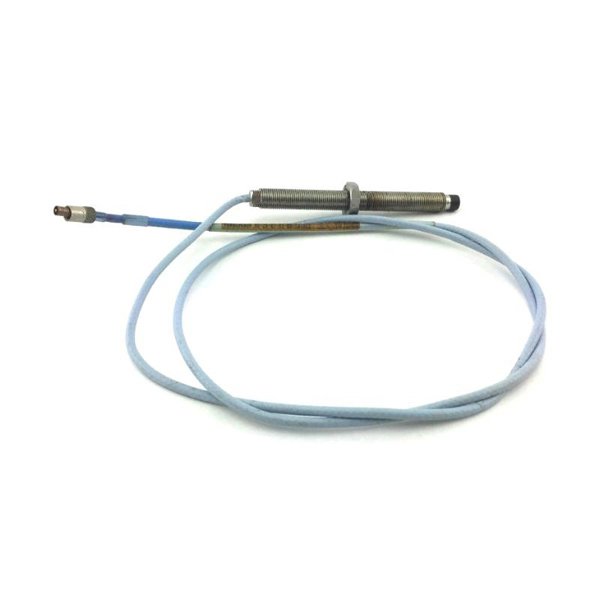

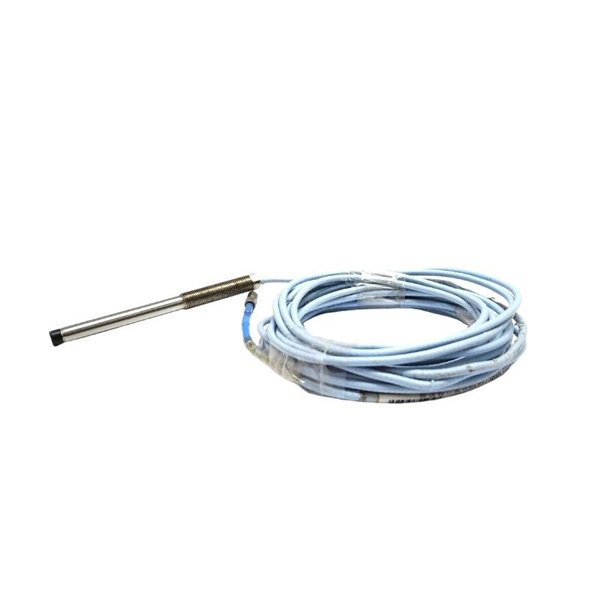

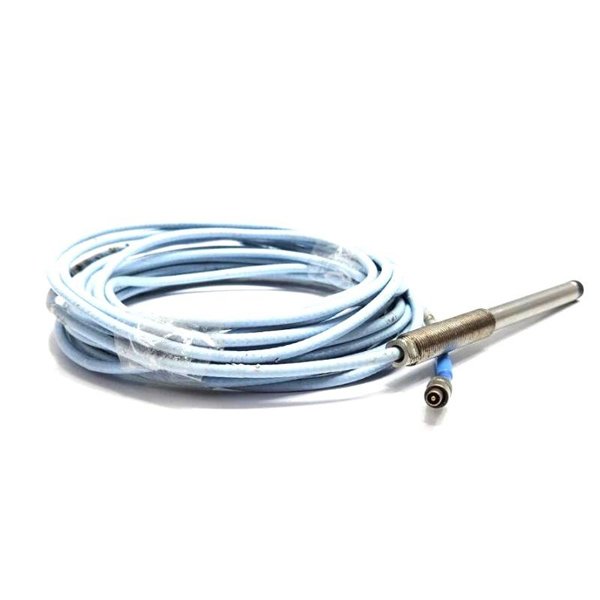

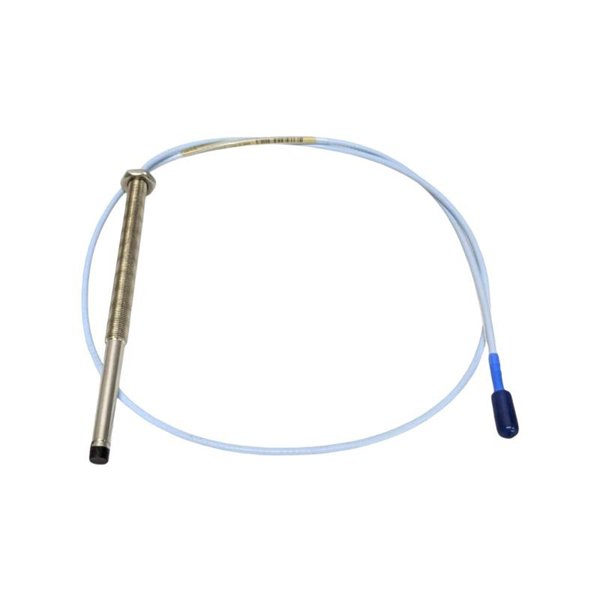

Bently Nevada 330103-00-14-10-02-CN 3300 XL 8 mm Proximity Probe
Manufacturer:Bently Nevada
Product Number:330103-00-14-10-02-CN
Product Type:3300 XL 8 mm Proximity Probe
Origin:USA
Total Length:1.0 meter
Weight:0.323 kg
Views:32
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330103-00-14-10-02-CN is a metric-threaded 3300 XL 8 mm Proximity Probe. It delivers precise measurements of vibration and shaft position in rotating machinery. As part of the 3300 XL system, it is compatible with XL and non-XL 3300 8 mm and 5 mm components, offering interchangeable installation without recalibration.
Applications
-
Vibration monitoring on fluid-film bearing machines
-
Shaft position and displacement measurement
-
Keyphasor reference and speed sensing
-
Use in harsh industrial environments, including high-temperature zones
Advantages
-
Fully compliant with API 670 standards
-
Robust PPS-molded tip and stainless-steel construction
-
Gold-plated ClickLoc connectors for reliable, tool-free connections
-
Extended temperature range options available
-
Backward and cross-compatible with earlier 3300 systems
Technical Specifications
| Parameter | Value |
|---|---|
| System Type | 3300 XL 8 mm |
| Thread Size | M10 x 1 |
| Probe Tip Material | PPS |
| Probe Body Material | Stainless Steel 303/304 |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Linear Range | 2 mm (80 mils) |
| Operating Temperature | -52°C to +177°C (standard) |
| Extended Temp (Optional) | up to +218°C |
| Frequency Response | 0 to 10 kHz |
| Recommended Shaft Diameter | ≥76.2 mm (3 in) |
| Minimum Target Size | 15.2 mm |
| Connector Type | ClickLoc miniature coaxial |
| Cable Type | 75Ω triaxial |
FAQ
Q1: Is the 330103 compatible with older 3300 systems?
A1: Yes, it is backward and cross-compatible with non-XL 3300 8 mm and 5 mm components.
Q2: What is the recommended gap setting?
A2: Approximately 1.27 mm (50 mils) corresponding to -9 Vdc.
Q3: Can this probe operate in high-temperature environments?
A3: Yes, the standard probe supports up to 177°C, and extended temperature versions are rated up to 218°C.
Q4: Does the probe require calibration before installation?
A4: No, probes are factory-calibrated and fully interchangeable without the need for field calibration.
Q5: What is the advantage of ClickLoc connectors?
A5: They ensure secure, corrosion-resistant connections without tools and prevent loosening.
Q6: What is the minimum recommended shaft diameter for accurate measurements?
A6: At least 76.2 mm (3 inches) for optimal performance.
Q7: How resistant is the probe to oil ingress?
A7: Optional FluidLoc cables prevent oil from leaking through the cable interior.
Q8: What certifications does the probe meet?
A8: Complies with API 670, FCC Part 15, CE mark (EMC/RoHS), and ATEX/IECEx hazardous area certifications.
Q9: Is an armored version available?
A9: Yes, armored and non-armored versions are available depending on application needs.
Q10: What is the maximum recommended torque when installing the probe?
A10: Standard M10x1 probes recommend 7.5 N•m (66 in•lbf) torque.
