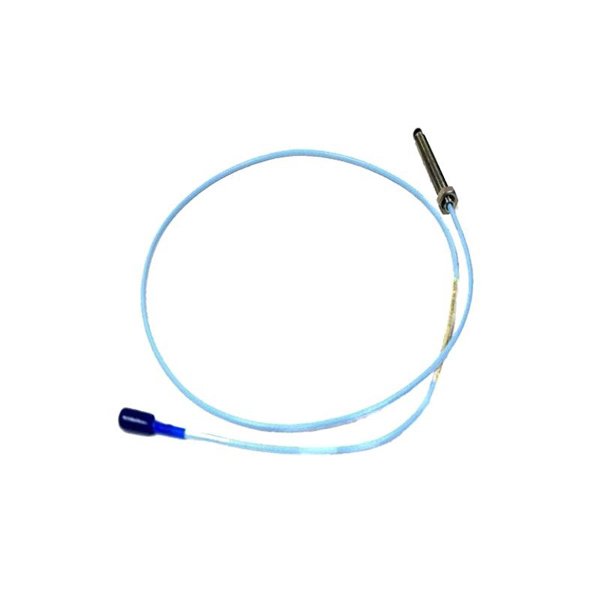

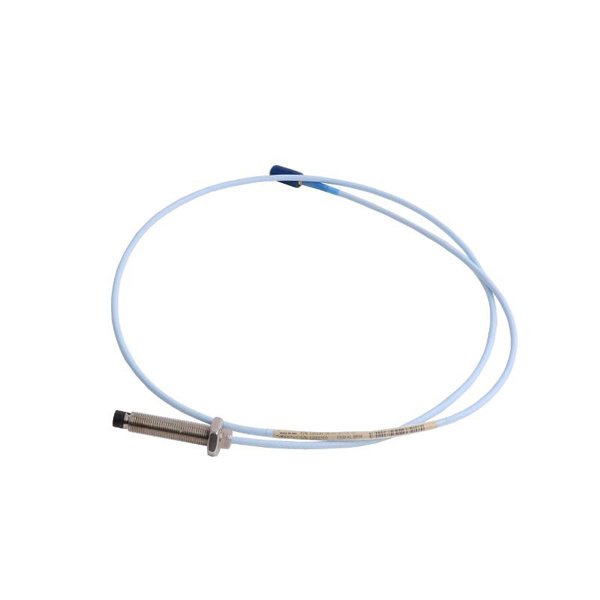

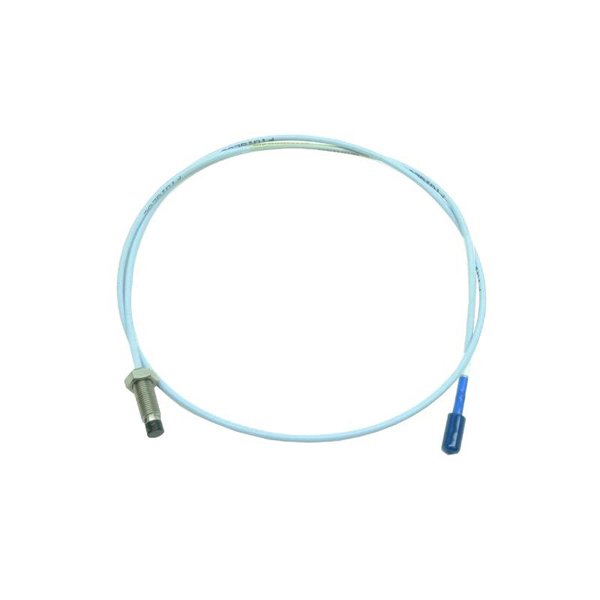

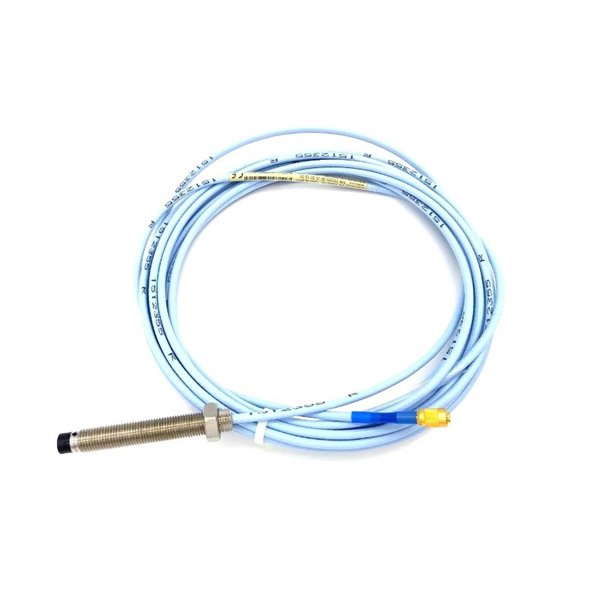

Bently Nevada 330102-05-25-10-01-05 3300 XL 8 mm Proximity Probe

The Bently Nevada 330102-05-25-10-01-05 3300 XL 8 mm Proximity Probe is a high-precision sensor designed for non-contact measurement of shaft vibration and position in rotating machinery. As part of the 3300 XL Series, it provides reliable and continuous monitoring for critical industrial equipment, including turbines, compressors, and generators. The probe features an 8 mm tip, suitable for applications requiring tight installation tolerances and robust performance in harsh environments.

Technical Specifications

Applications

• Vibration monitoring in steam and gas turbines

• Condition monitoring in compressors and pumps

• Generator rotor position tracking

• High-speed industrial rotating machinery diagnostics

• Critical plant equipment for oil, gas, and power generation

• Feedback systems for vibration protection relays

Advantages

• High accuracy and low linearity error ensure reliable measurements.

• Robust 8 mm probe tip designed for heavy-duty industrial environments.

• Wide operating temperature range supports diverse industrial conditions.

• Corrosion-resistant stainless steel construction for extended service life.

• Compatible with standard 3300 XL monitoring systems for easy integration.

• Flexible cable options allow installation in constrained or remote locations.

FAQ

Q1: What is the probe’s frequency response range?

A1: The 3300 XL 8 mm Proximity Probe operates effectively from 0 Hz up to 25 kHz, supporting high-speed shaft monitoring.

Q2: Can this probe be used in explosive environments?

A2: Yes, when paired with an intrinsically safe barrier and proper certification, it can be used in hazardous locations.

Q3: What is the minimum radial clearance for accurate measurement?

A3: For optimal performance, the probe should be installed with a radial clearance of 0.05–0.25 mm from the shaft.

Q4: Does the probe support dual-channel vibration measurement?

A4: It is compatible with dual-channel 3300 XL systems, allowing simultaneous position and vibration monitoring.

Q5: What is the recommended mounting orientation?

A5: The probe can be mounted in any orientation; however, alignment with the monitored shaft centerline is critical.

Q6: How does cable length affect signal accuracy?

A6: Standard 1 m cables maintain signal integrity; longer cables may require signal conditioning to prevent attenuation.

Q7: Can the probe withstand shaft misalignment?

A7: Minor misalignments are tolerated, but large deviations can reduce measurement accuracy and increase wear.

Q8: Is the probe compatible with non-ferrous shafts?

A8: Yes, it functions with both ferrous and non-ferrous shafts, though calibration may differ slightly.

Q9: What type of output does the probe provide?

A9: The probe provides a variable inductive AC output proportional to the gap between the probe tip and shaft.

Q10: How does temperature affect probe readings?

A10: The probe is rated for -40°C to 120°C, and readings remain accurate across this range with minor temperature compensation.
