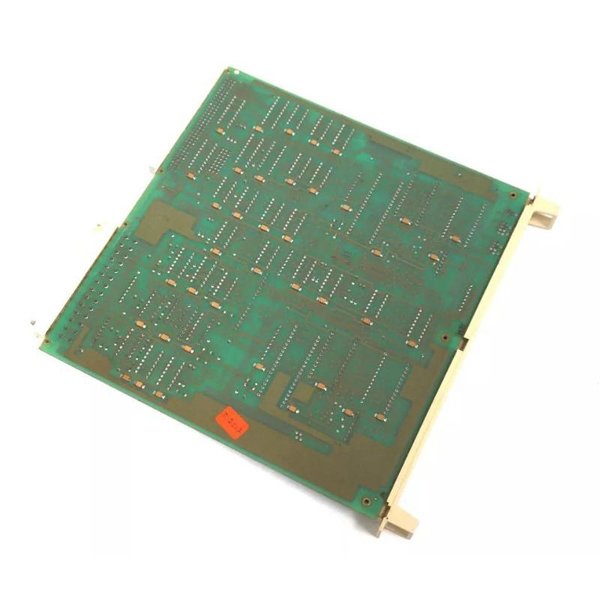

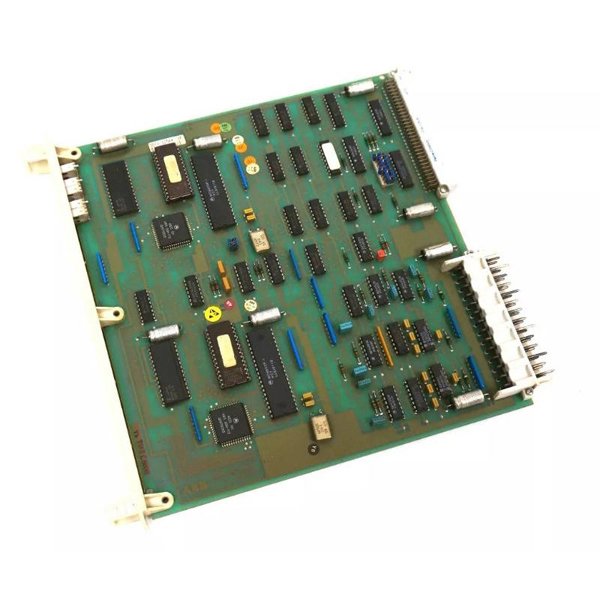

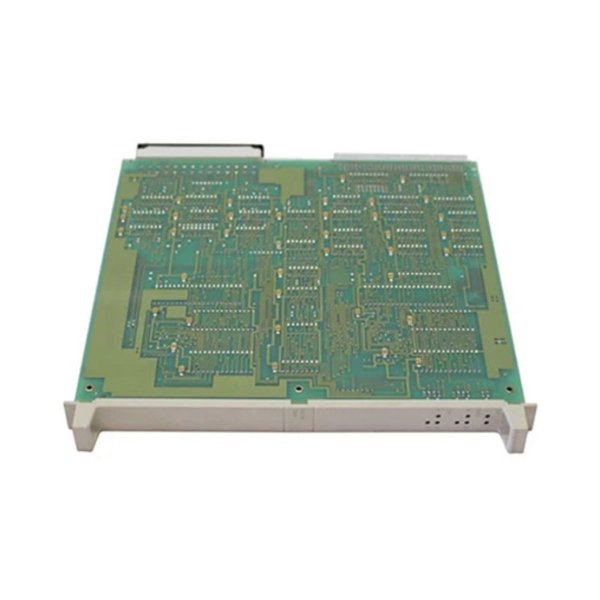

ABB DSCA 125A 57520001-GD Communication Board

The ABB DSCA 125A 57520001-GD is a high-performance communication board module designed for use within ABB Advant Master, Bailey Infi 90, and other legacy ABB Distributed Control Systems (DCS). It plays a key role in facilitating serial communication between the control processor and connected field devices, including intelligent instrumentation and I/O modules.

This board is engineered to handle asynchronous serial data exchange, making it ideal for use in systems where multiple peripheral devices are distributed across long distances. The DSCA 125A provides robust communication with high noise immunity, ensuring system integrity even in electrically harsh industrial environments. It is typically installed in controller I/O racks or communication expansion bays and is part of ABB’s long-supported legacy product line.

Key Features

• Serial Communication Support: Facilitates RS-232/RS-422-based asynchronous serial communication

• Legacy DCS Compatibility: Integrates seamlessly with ABB Advant Master and Bailey Infi 90 systems

• Robust Signal Processing: Optimized for reliable data transfer in electrically noisy industrial environments

• Module-Based Design: Easily mountable within standard ABB rack configurations

• Built-in Diagnostics: Supports fault detection and system monitoring to ensure high availability

• Firmware Compatibility: Fully compatible with legacy firmware and controller configurations

• Field-Proven Reliability: Used extensively in continuous process industries requiring high uptime

Technical Specifications

Industry Applications

• Power Generation: Interfaces with turbine control systems and balance-of-plant subsystems

• Petrochemical Industry: Ensures reliable data transfer between field instruments and the central controller

• Water and Wastewater Treatment: Connects remote telemetry units to central SCADA/DCS systems

• Pulp and Paper Mills: Facilitates control over wide areas where devices are located at great distances

• Chemical Manufacturing: Supports robust communication in hazardous, noise-prone environments

• Steel and Mining: Used in legacy systems for I/O data acquisition and command distribution

Product Advantages

• Legacy System Compatibility: Supports older ABB platforms still in operation, protecting investment in long-life equipment

• High Reliability: Proven performance in critical industrial environments with continuous operation

• Flexible Communication: Offers support for both RS-232 and RS-422 interfaces

• Minimal Downtime: Hot-swappable in supported systems, reducing maintenance-related disruptions

• Integrated Diagnostics: Onboard indicators and fault detection simplify troubleshooting

• Robust Design: Designed to meet industrial-grade temperature and humidity standards

Frequently Asked Questions (FAQ)

1. Q: What systems is the DSCA 125A compatible with?

   A: It is compatible with ABB Advant Master, Bailey Infi 90, and related legacy DCS platforms.

2. Q: What type of communication protocols does this module support?

   A: It supports asynchronous serial communication via RS-232 and RS-422.

3. Q: Can the DSCA 125A be hot-swapped?

   A: In systems that support hot-swapping, it can be replaced without shutting down the entire rack.

4. Q: What is the typical use case of this board?

   A: It is used to connect controllers with field devices like smart sensors and I/O over serial communication lines.

5. Q: Does the board include diagnostic features?

   A: Yes, it has LED indicators and supports error/fault diagnostics.

6. Q: Is the board still supported by ABB?

   A: While it is a legacy product, it remains supported and available for maintenance in long-life systems.

7. Q: What baud rates are supported?

   A: It supports configurable baud rates up to 38.4 kbps.

8. Q: How is the DSCA 125A powered?

   A: It is powered via the I/O rack’s backplane, requiring no external power source.

9. Q: What are the physical dimensions of this communication board?

   A: The board measures 324 x 22 x 234 mm.

10. Q: Can this board be used in modern ABB systems like AC 800M?

    A: No, it is primarily designed for use with legacy systems such as Advant Master and Infi 90.
