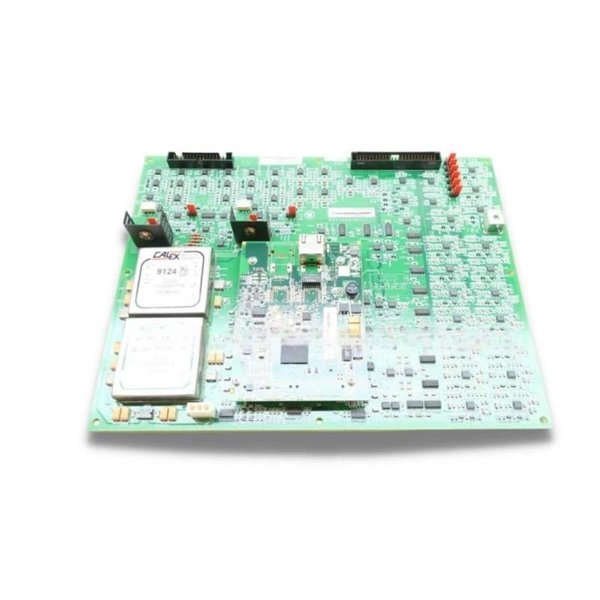

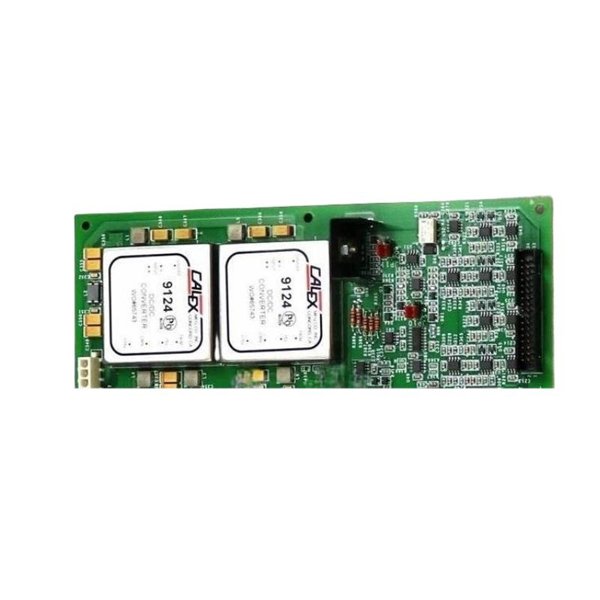

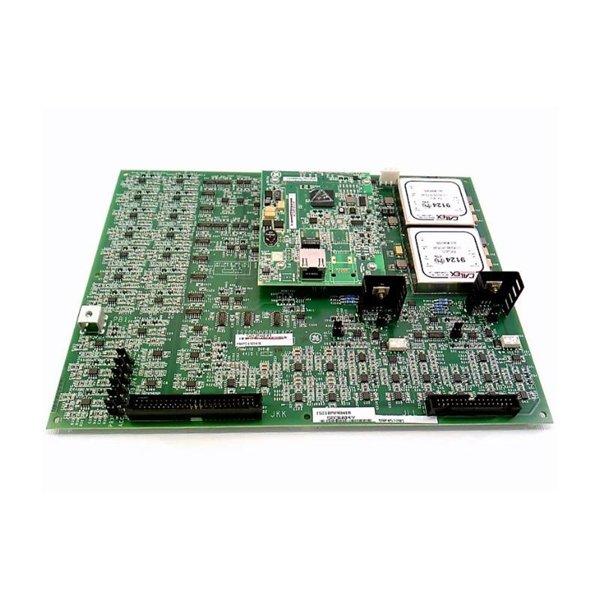

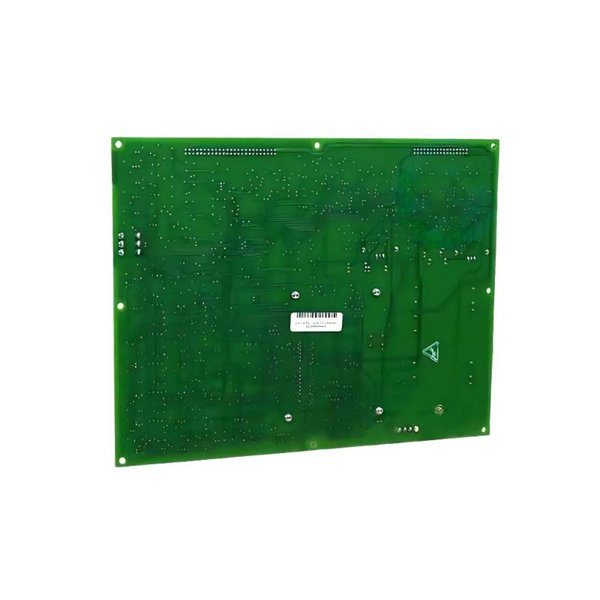

General Electric IS210MVRBH1A Interface Board

The GE IS210MVRBH1A is a robust and versatile interface board designed for integration with GE’s Mark VI and Mark VIe turbine control systems. Engineered for seamless communication and signal routing, it plays a vital role in managing analog and digital I/O paths, embedded communication links, and control logic functions. Built for high-availability environments, this module delivers reliable transmission and enhanced diagnostics for turbine control and monitoring systems.

Technical Specifications

Applications

• Turbine Turbine Control Systems – Acts as a communication backbone in GE Mark VI/VIe control systems for gas, steam, and hydro turbines.

• Signal Integration & Routing – Interfaces between analog and digital sensors, actuators, and the main control processor.

• Redundant Architectures – Supports redundant system configurations for high reliability and uptime.

• Remote Operation – Enables remote monitoring and integration with SCADA or DCS via serial/Ethernet links.

• Diagnostics & Safety Monitoring – Enhances operational safety through built-in self-test, status indicators, and fault isolation.

Advantages

• Enhanced System Reliability – Built-in diagnostics and fault indicators aid in rapid maintenance and uptime.

• Versatile Communication – Supports multiple protocols (Ethernet, Serial, Modbus, CAN) for diverse integration needs.

• Efficient Form Factor – Compact and lightweight (0.52 kg) for easy installation in control racks.

• Seamless GE Integration – Fully compatible with GE Mark VI / VIe platforms, simplifying system design.

• Robust Performance – Designed for consistent operation across a wide industrial temperature range.

• Scalable & Modular – Ideal for redundancy and expansion in evolving control architectures.

• Power Efficiency – Optimized internal power regulation reduces system load.

• Compliance-Ready – Meets industry standards for safety and marine applications where needed.

FAQ

Q1: What is the main role of the IS210MVRBH1A board?

A1: It functions as a high-capacity interface module in GE Mark VI/VIe systems, managing communication and I/O routing between sensors, actuators, and the controller.

Q2: Which communication protocols are supported?

A2: It supports Ethernet, Serial, Modbus, and CAN, depending on the specific configuration.

Q3: Does it support redundant configurations?

A3: Yes, the board is designed to accommodate redundant setups for enhanced system reliability.

Q4: How are faults or diagnostics handled?

A4: The board features integrated diagnostic LEDs, fault detection, and self-test logic for easy troubleshooting.

Q5: What are the mounting options?

A5: It can be mounted using either DIN-rail or panel integration, depending on system layout.

Q6: What is the operating temperature range?

A6: It operates safely between –20 °C and +70 °C.

Q7: Is it compliant with industrial standards?

A7: Yes, it carries CE and UL certifications; some variants also meet marine standards (e.g., DNV-GL).

Q8: How much power does it require?

A8: It operates on a 24 VDC nominal supply with internal power regulation.

Q9: Can it be integrated with remote SCADA systems?

A9: Absolutely – it supports ethernet and serial protocols for remote connectivity.

Q10: What applications benefit most from this board?

A10: Ideal for turbine control systems in power generation, renewable energy, and large-scale industrial plants that require reliable, safe, and scalable I/O communication.
