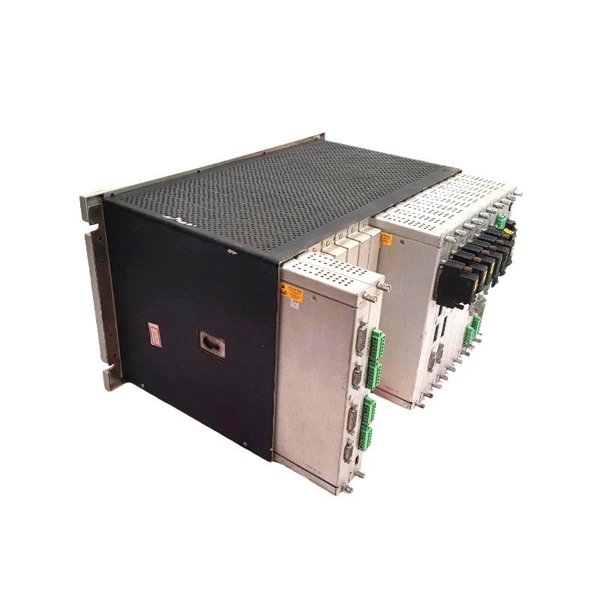

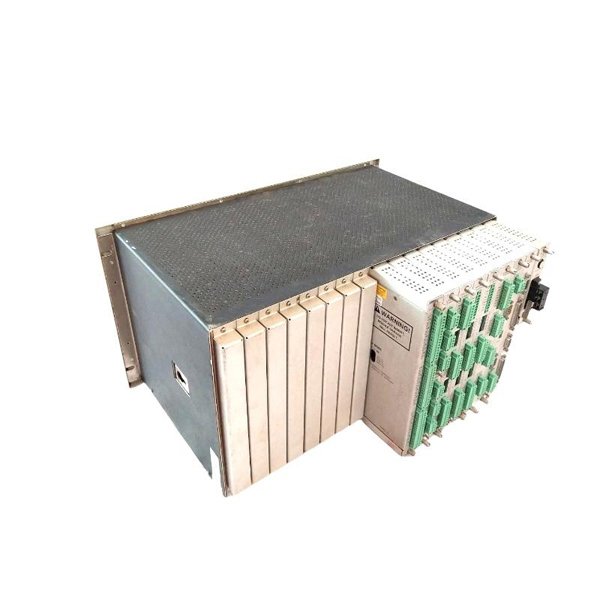

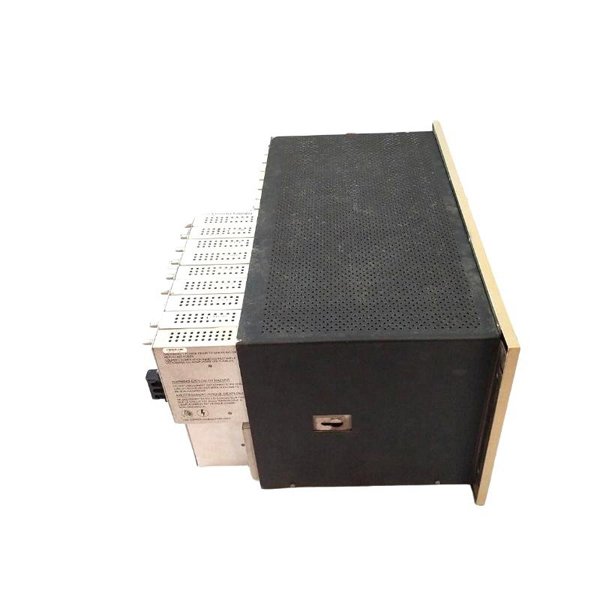

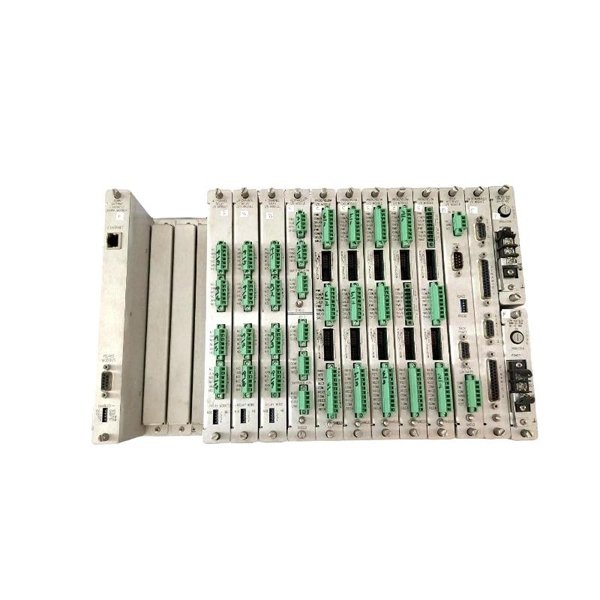

Bently Nevada 3500/94M 190214-02 Power-Only I/O Module

The Bently Nevada 3500/94M 190214-02 is a Power-Only I/O Module designed for use with front-mount display modules in the 3500 machinery protection system. Its primary role is to provide regulated power to the front-mounted display without handling dynamic or static signal processing. This ensures reliable display operation while maintaining system stability and isolation from other monitoring functions.

Technical Specifications

Applications

• Provides power for front-mounted operator displays in the 3500 series system.

• Ensures reliable visualization of machine parameters without interference from monitoring functions.

• Suitable for critical machinery protection environments in industries such as oil & gas, power generation, and petrochemical plants.

Advantages

• Dedicated Power Supply: Isolates power delivery for stable display operation.

• System Reliability: Reduces risk of signal interference by separating power from data functions.

• Compact Design: Slim profile enables efficient rack utilization.

• Ease of Integration: Designed for seamless compatibility with the 3500 series platform.

• High Durability: Operates effectively in harsh industrial environments.

FAQ

Q1: What is the main purpose of the 3500/94M 190214-02 module?

A1: It supplies regulated power to front-mounted display modules in the 3500 system.

Q2: Does this module process monitoring signals?

A2: No, it only delivers power and does not process static or dynamic signals.

Q3: Can this module be used with rear-mount displays?

A3: No, it is specifically designed for front-mount display configurations.

Q4: How does the module improve system reliability?

A4: By isolating display power supply from monitoring functions, reducing interference and instability.

Q5: What type of environment is it designed for?

A5: Industrial environments including oil & gas, power generation, and refining industries.

Q6: Is hot-swapping supported?

A6: Yes, the module supports hot-swapping within the 3500 rack system.

Q7: What are its mounting requirements?

A7: It requires a standard Bently Nevada 3500 rack with front-mount capability.

Q8: Does the module require external configuration?

A8: No configuration is required; it is a plug-and-play module.

Q9: What happens if the module fails?

A9: The display module will lose power, but monitoring and protection functions remain unaffected.

Q10: Is the 3500/94M 190214-02 compatible with redundant power supply configurations?

A10: Yes, it can operate within racks equipped with redundant power supplies, enhancing overall system availability and reliability.
