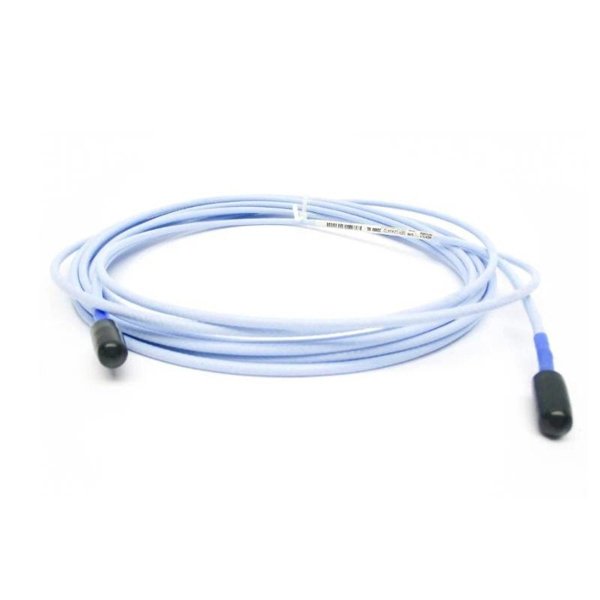

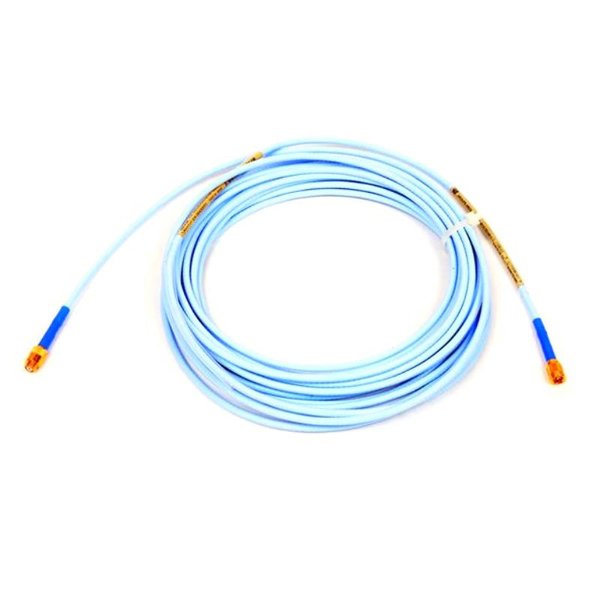

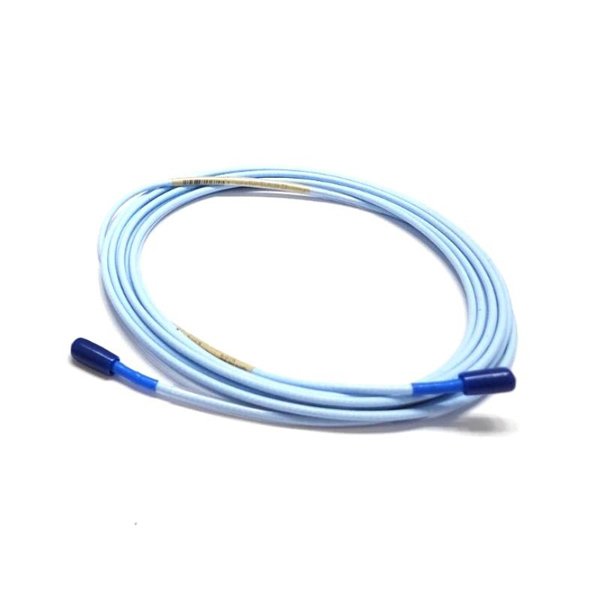

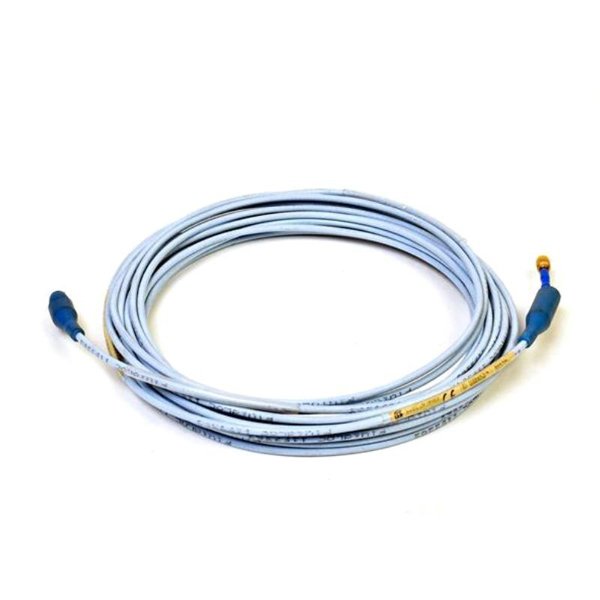

Bently Nevada 330130-080-00-CN 3300 XL Standard Extension Cable
Manufacturer:Bently Nevada
Product Number:330130-080-00-CN
Product Type:3300 XL Standard Extension Cable
Origin:USA
Cable Length:8.0 meters
Weight:0.272 kg
Views:54
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330130-080-00-CN is an 8.0-meter extension cable from the 3300 XL 8 mm Proximity Transducer System. It connects the proximity probe to the Proximitor Sensor and ensures signal integrity over extended distances. Designed with robust mechanical and electrical characteristics, this cable is key to maintaining precise vibration and position monitoring.
Applications
-
Industrial turbines
-
Compressors
-
Gearboxes
-
Fluid-film bearing machinery
-
Keyphasor and speed measurements
Product Advantages
-
Reliable Signal Transmission: Maintains linearity and scale factor accuracy over long distances
-
Rugged Design: CableLoc™ provides 330 N (75 lbf) pull strength
-
FluidLoc Option: Prevents fluid ingress through the cable
-
ClickLoc Connectors: Gold-plated and corrosion-resistant for tool-free secure connection
-
Backward Compatibility: Works with both XL and non-XL systems
-
Extended Temperature Range Option: Up to 260°C with ETR models
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Code | 330130-080-00-CN |
| Cable Type | Triaxial, FEP-insulated |
| Cable Length | 8.0 meters |
| Capacitance | 69.9 pF/m (21.3 pF/ft) |
| DC Resistance (RCORE) | 1.76 ± 0.26 Ω |
| Jacket Resistance (RJACKET) | 0.53 ± 0.11 Ω |
| Connector Type | Gold-plated ClickLoc connectors |
| Cable Bend Radius | Min. 25.4 mm (1.0 in) |
| Material | FEP jacket with optional stainless-steel armor |
| Dimensions | Cable diameter: ~3.68 mm (0.145 in) |
| Weight | 0.272 kg (0.6 lbs) |
| Operating Temperature | –52°C to +177°C (Standard), up to +260°C (ETR) |
FAQs
Q1: What system does this cable belong to?
A1: It is part of the Bently Nevada 3300 XL 8 mm Proximity Transducer System.
Q2: Can this extension cable be used in high-temperature areas?
A2: Yes, when using the ETR version, it supports up to 260°C.
Q3: Is this cable compatible with older non-XL 3300 systems?
A3: Yes, it supports backward compatibility with non-XL 5 mm and 8 mm systems.
Q4: What type of connectors are used?
A4: Gold-plated ClickLoc connectors requiring no tools.
Q5: Does it support fluid protection?
A5: Yes, the FluidLoc version prevents fluid leakage through the cable.
Q6: How much does the 8.0-meter cable weigh?
A6: Approximately 0.272 kg (0.6 lbs).
Q7: What is the recommended minimum bend radius?
A7: 25.4 mm (1.0 inch).
Q8: Is calibration needed for this cable?
A8: No, it supports plug-and-play compatibility without the need for calibration.
Q9: Are connector protectors available?
A9: Yes, they can be pre-installed or ordered separately for added environmental protection.
Q10: What is the resistance of the 8.0-meter extension cable?
A10: 1.76 ± 0.26 ohms for the center conductor, 0.53 ± 0.11 ohms for the outer jacket.
