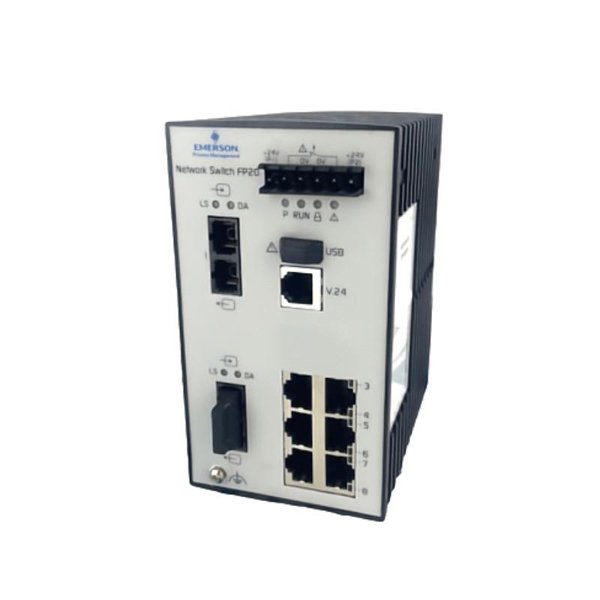

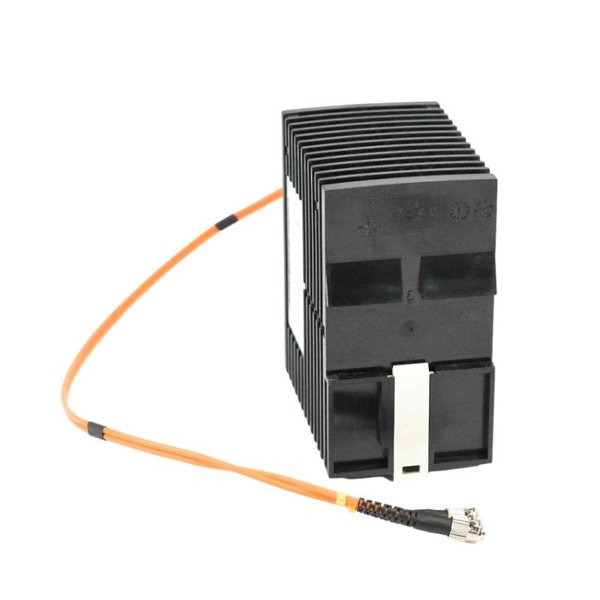

Emerson KJ1611X1-BE1 Network Switch Module

The Emerson KJ1611X1-BE1 Network Switch Module is an industrial-grade communication component designed to provide high-speed and reliable Ethernet switching for Emerson DeltaV and Ovation control systems. Built for mission-critical process automation environments, it enables seamless communication between controllers, I/O subsystems, and operator workstations. The module supports managed network functions, redundancy, and diagnostics to ensure continuous, secure data flow in complex control architectures.

With rugged hardware and advanced firmware, the KJ1611X1-BE1 offers superior network performance while maintaining Emerson’s strict industrial reliability standards. It is optimized for real-time control data transmission and is engineered to withstand harsh industrial conditions such as high electrical noise, temperature variations, and vibration.

Product Specifications

Product Applications

• Process Automation Networks: Ensures seamless communication between controllers and I/O subsystems.

• Distributed Control Systems: Acts as the core Ethernet switch for Emerson DeltaV and Ovation systems.

• Redundant Network Architectures: Provides fault-tolerant communication for high-availability systems.

• Industrial Ethernet Segmentation: Enables secure data isolation and traffic management in large networks.

• Oil & Gas Operations: Supports reliable communication in upstream, midstream, and downstream facilities.

• Power Generation Plants: Integrates control and monitoring systems for turbines and auxiliaries.

Product Advantages

• High-Speed Switching: Provides wire-speed forwarding on all ports for real-time control.

• Robust Industrial Design: Engineered to withstand electrical noise, vibration, and temperature extremes.

• Redundancy Ready: Supports network failover and redundant paths to maintain uptime.

• Advanced Diagnostics: Real-time port monitoring aids in network troubleshooting and maintenance.

• VLAN Support: Enables secure network segmentation for critical control traffic.

• Seamless Integration: Fully compatible with Emerson DeltaV and Ovation systems.

FAQ

1. What network speed does the KJ1611X1-BE1 support?

   The module supports 10/100 Mbps auto-negotiating Ethernet ports with wire-speed switching.

2. Can this module be used in redundant network architectures?

   Yes, it fully supports redundant paths and failover mechanisms to ensure uninterrupted communication.

3. Does the KJ1611X1-BE1 support VLAN configuration?

   Yes, it is compliant with IEEE 802.1Q for VLAN tagging and network segmentation.

4. What is the switching capacity of the module?

   The KJ1611X1-BE1 provides a switching capacity of 1.6 Gbps for high-performance networking.

5. Is the module compatible with non-Emerson devices?

   It follows standard IEEE 802.3 protocols, allowing integration with other industrial Ethernet equipment.

6. Does the module offer real-time diagnostics?

   Yes, it provides port status monitoring and network health diagnostics for troubleshooting.

7. What type of protection is built into the hardware?

   It features surge suppression, EMI/RFI shielding, and ESD protection for harsh industrial environments.

8. Can the KJ1611X1-BE1 be used in both DeltaV and Ovation systems?

   Yes, it is fully certified for both Emerson DeltaV and Ovation DCS architectures.

9. How does the module handle network traffic under high load?

   It delivers wire-speed forwarding with no packet loss, ensuring consistent real-time performance.

10. Is hot-swapping supported for maintenance purposes?

    Yes, the module supports hot-swapping, allowing replacement without system downtime.
