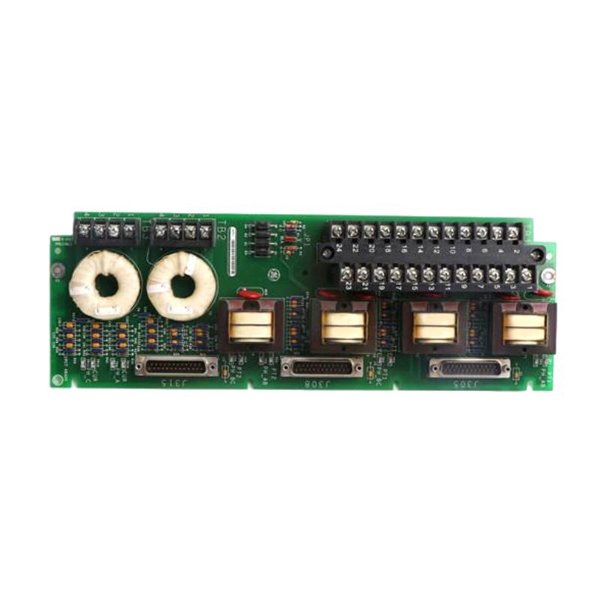

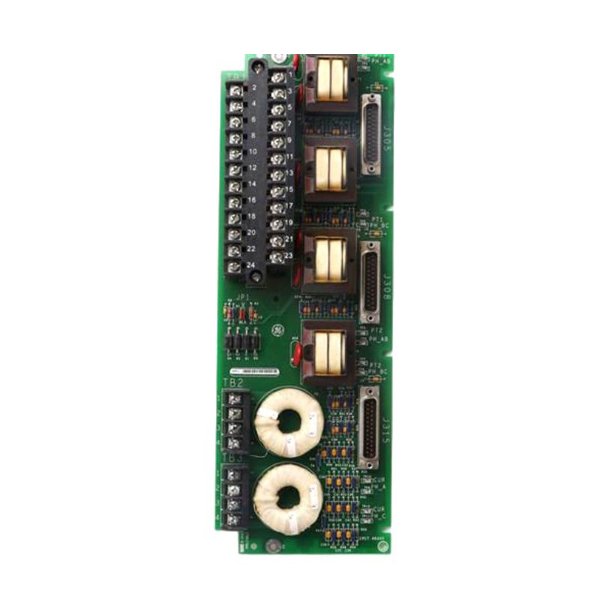

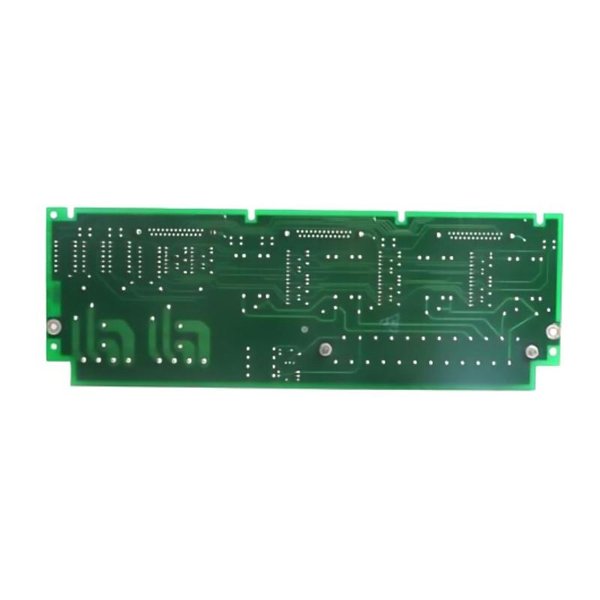

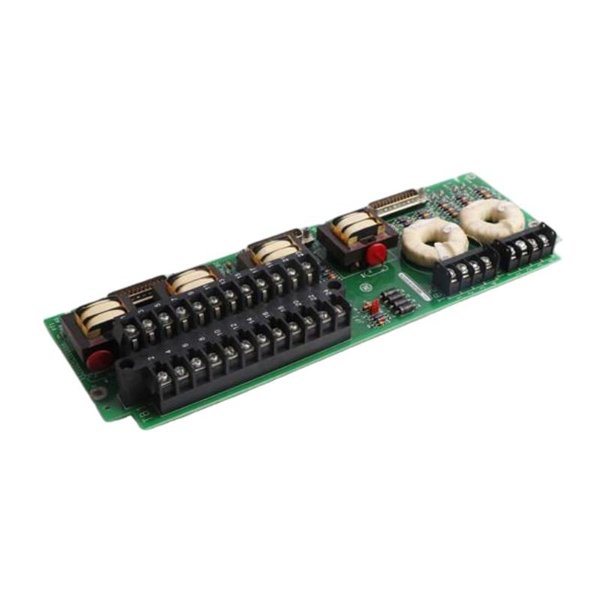

General Electric IS200EPCTG1A Exciter PT/CT Terminal Board
Manufacturer:GE
Product Number:IS200EPCTG1A
Product Type:Exciter PT/CT Terminal Board
Origin:USA
Dimensions:238 x 86 mm
Weight:0.45 kg
Views:27
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The GE IS200EPCTG1A is a PT/CT Terminal Board designed to operate within the GE Mark VI and Mark VIe Excitation Control Systems, specifically within high-reliability environments where precise monitoring of current and voltage is essential. This board plays a critical role in interfacing with both Potential Transformers (PTs) and Current Transformers (CTs), providing safe and accurate signal conditioning, termination, and routing for input to the control system.
It is engineered to connect high-voltage and high-current instrument transformer signals to protection and control electronics within the excitation system. By handling both analog signal scaling and isolation, the IS200EPCTG1A ensures the integrity and accuracy of real-time generator measurements used for excitation control and protection.
With its robust design and dependable terminal architecture, this board is widely deployed in power generation environments, from traditional thermal plants to hydroelectric and renewable sources. Its modularity, ease of installation, and stable performance make it an ideal choice for both new installations and retrofit applications.
Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | IS200EPCTG1A |
| Manufacturer | General Electric (GE) |
| Product Type | Exciter PT/CT Terminal Board |
| System Compatibility | GE Mark VI, Mark VIe Excitation Control Systems |
| Function | Interfaces PT and CT signals with excitation control circuits |
| Supported Inputs | 3-phase PT (Voltage) and 3-phase CT (Current) |
| Input Voltage Range | Up to 300 VAC (PT) |
| Input Current Range | Up to 5 A (CT, nominal) |
| Isolation Rating | 2.5 kV RMS (between channels and system ground) |
| Terminal Type | Screw clamp terminals (high-retention industrial grade) |
| PCB Coating | Conformal coating for dust and moisture protection |
| Mounting Type | Panel mounted (DIN rail compatible) |
| Status Indicators | None (passive terminal board) |
| Operating Temperature | -40°C to +70°C (-40°F to 158°F) |
| Storage Temperature | -55°C to +85°C (-67°F to 185°F) |
| Humidity Tolerance | 5–95% RH, non-condensing |
| Shock Rating | 15 g (IEC 60068-2-27) |
| Vibration Resistance | 2 g, 10–500 Hz (IEC 60068-2-6) |
| Compliance Standards | UL, CE, RoHS compliant |
| Dimensions (L×W×H) | 238 x 86 mm |
| Weight | 0.45 kg |
Product Applications
The IS200EPCTG1A is applied extensively in power generation and industrial environments that require real-time transformer signal conditioning. Key applications include:
-
Synchronous Generator Excitation Systems
For monitoring stator voltage and current with PT and CT connections for real-time feedback to the excitation controller.
-
Turbine Generator Control Cabinets
Used in turbine systems to route and condition signals from instrument transformers into the excitation module.
-
Power Grid Interface Stations
Installed in substations where measurement accuracy of generator output is essential for synchronization and protection.
-
Retrofit and Modernization Projects
Perfect for upgrading legacy PT/CT terminal boards in aging GE systems with minimal rewiring.
-
Industrial Generator Units
Common in heavy industries like oil and gas, steel, cement, and chemicals, where local generation and excitation control are vital.
Product Advantages
-
High Accuracy Signal Handling
Precisely conditions analog PT and CT signals, preserving signal integrity for control and protection systems.
-
Rugged and Durable
Engineered to withstand electrical noise, high temperature ranges, and physical vibrations in power generation environments.
-
Modular Integration
Easily integrates into Mark VI and Mark VIe systems without extensive configuration.
-
Safe Isolation
Provides galvanic isolation between high-voltage signals and control electronics, ensuring personnel and system safety.
-
Low Maintenance Design
Passive board with no active components—minimizes failure risk and service frequency.
-
Rapid Installation
Designed with user-friendly terminal labeling and quick-connect screw terminals for efficient setup.
-
Backwards Compatibility
Functions seamlessly in both newer and older GE excitation configurations, supporting long lifecycle systems.
Frequently Asked Questions (FAQ)
1. What is the primary role of the IS200EPCTG1A?
Its main function is to connect and condition voltage and current signals from PTs and CTs to the exciter controller.
2. Can this board be used in GE non-excitation systems?
It is specifically optimized for GE Mark VI and Mark VIe excitation systems but may be adapted in some turbine or generator configurations.
3. Is there signal scaling or conversion done on this board?
No active signal processing is performed; the board primarily provides terminal connections and isolation paths.
4. How many phases can it monitor?
It supports three-phase inputs from both potential and current transformers.
5. Are the terminals labeled for easy wiring?
Yes, all terminals are clearly labeled for voltage and current connections, easing field installation and service.
6. Is there onboard diagnostics on this board?
No. This is a passive terminal board with no active diagnostics or indicators.
7. Does it require cooling?
No cooling or ventilation is necessary under standard operating conditions.
8. What type of connectors are used?
The board uses industrial-grade screw clamp terminals for secure and reliable connections.
9. Can this be replaced in the field without recalibration?
Yes. Since it is a passive interface board, it does not require calibration.
10. Is it resistant to moisture and dust?
Yes. It is coated with conformal coating to protect against moisture, dust, and industrial contaminants.
