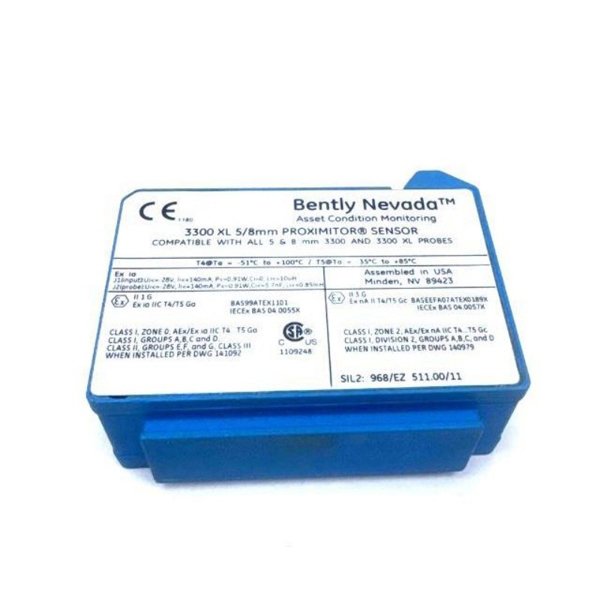

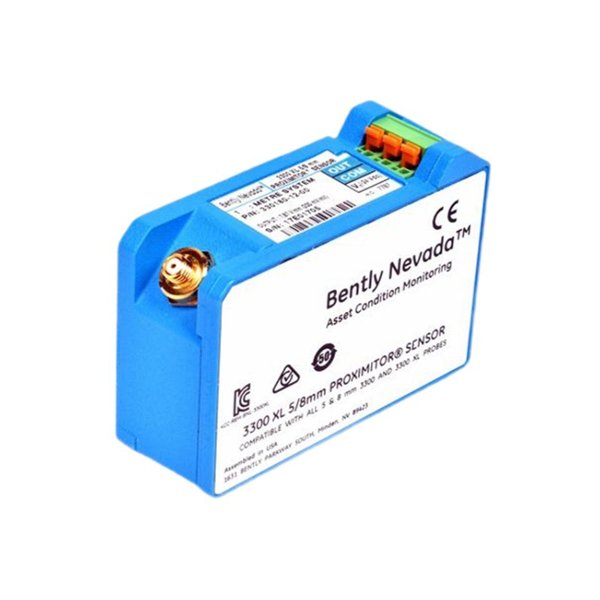

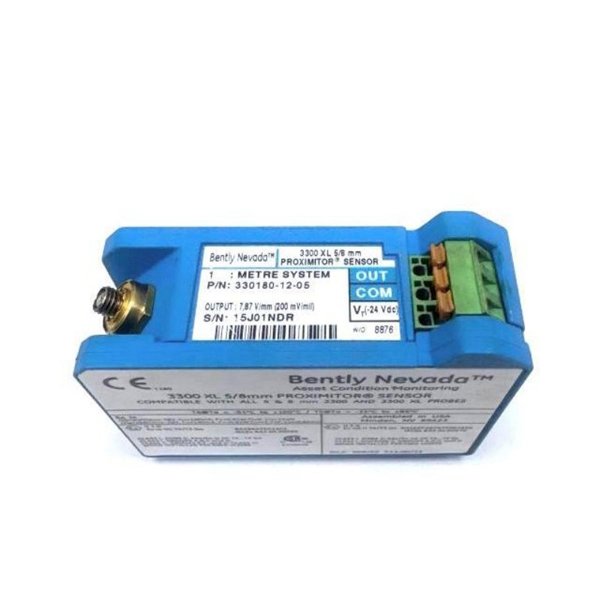

Bently Nevada 330180-12-05 3300 XL Proximitor Sensor
Manufacturer:Bently Nevada
Product Number:330180-12-05
Product Type:3300 XL Proximitor Sensor
Origin:USA
Total Length:1.0 meter
Weight:0.246 kg
Views:38
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330180-12-05 is part of the 3300 XL 8 mm Proximity Transducer System. It delivers precise vibration and position measurements for critical rotating machinery. The system includes a probe, extension cable, and Proximitor Sensor.
Features
-
Complies with API 670 standard
-
No special tools required (SpringLoc terminal strips)
-
Enhanced RFI/EMI immunity
-
DIN-rail and panel-mount capable
-
Supports full interchangeability
Applications
-
Steam and gas turbines
-
Compressors
-
Pumps and motors
-
Gearboxes
-
Keyphasor® speed and phase reference measurements
Advantages
-
High accuracy over extended temperature range
-
Strong mechanical design with armored cabling
-
ClickLoc connectors prevent loosening
-
Backward compatibility with 5 mm and non-XL 3300 series
-
No calibration required for component matching
Technical Specifications
| Parameter | Specification |
|---|---|
| System Length | 1.0 meter |
| Total Weight | 0.246 kg (sensor only) |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Case Material | AISI 303/304 Stainless Steel |
| Operating Temp (Sensor) | -52°C to +100°C |
| Storage Temp (Sensor) | -52°C to +105°C |
| Power Supply | -17.5 to -26 VDC, max 12 mA |
| Output Voltage Range | -1 V to -17 VDC (linear output) |
| Linear Range | 2 mm (80 mils) |
| Sensitivity | 7.87 V/mm (200 mV/mil) ±5% |
| Frequency Response | 0 – 10 kHz (+0/-3 dB) |
| Minimum Target Size | 15.2 mm diameter |
| Recommended Shaft Diameter | ≥76.2 mm (3 in) |
| EMC Compliance | EN 61000-6-2 & EN 61000-6-4 |
| Environmental Compliance | RoHS 2011/65/EU |
| Mounting Options | DIN-rail or Panel Mount |
FAQ
Q1: What is the primary use of the 330180-12-05 Proximitor Sensor?
A1: It is mainly used for vibration and position monitoring in rotating machinery.
Q2: Is the sensor compliant with API 670?
A2: Yes, it meets API 670 standards for mechanical configuration and accuracy.
Q3: What is the system length of the 330180-12-05?
A3: It has a total system length of 1.0 meter.
Q4: Can this sensor be used in hazardous areas?
A4: Yes, it has CSA, ATEX, and IECEx approvals for hazardous locations.
Q5: Is it compatible with older 3300 series systems?
A5: Yes, it is backward compatible with 3300 5 mm and non-XL 8 mm components.
Q6: What is the recommended gap voltage setting?
A6: Approximately -9 VDC, correlating to a 1.27 mm (50 mils) gap.
Q7: What is the linear range of this system?
A7: It provides a linear range from 0.25 mm to 2.3 mm (10–90 mils).
Q8: Does the system require special tools for installation?
A8: No, it uses SpringLoc terminal strips for tool-free wiring.
Q9: What type of connectors are used?
A9: Gold-plated ClickLoc coaxial connectors.
Q10: What material is the probe housing made of?
A10: AISI 303 or 304 stainless steel.
