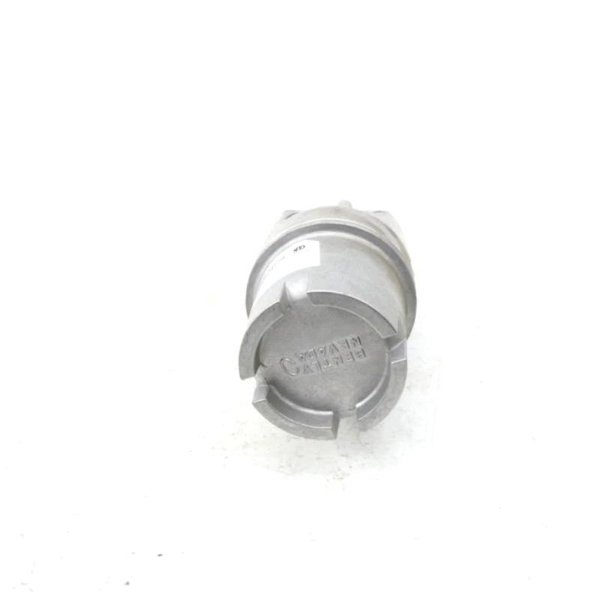

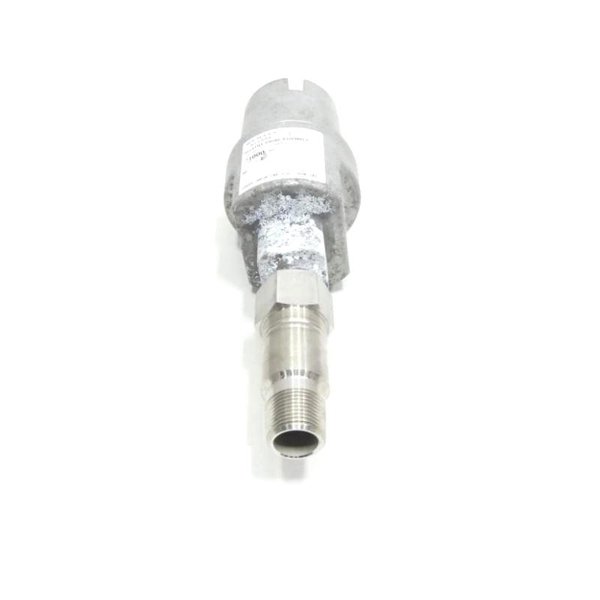

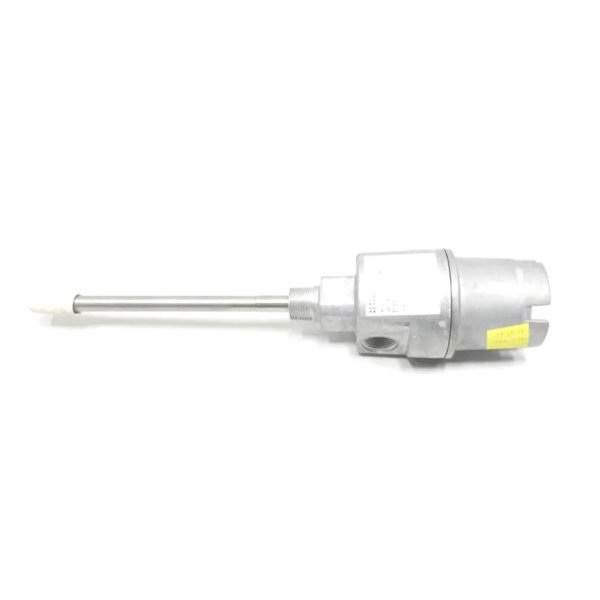

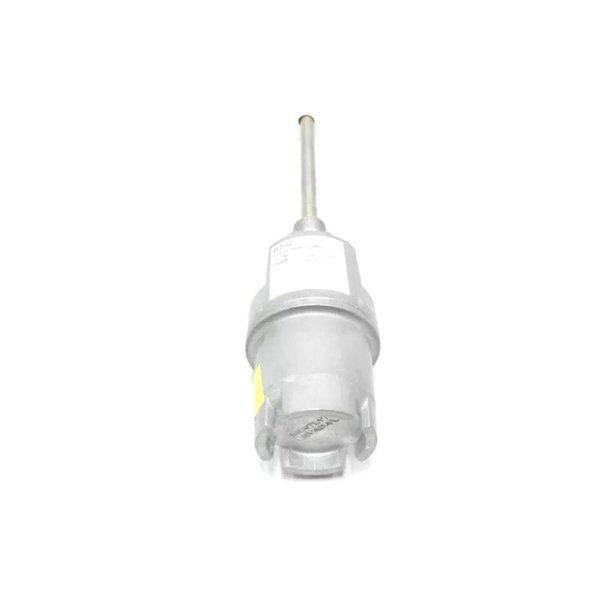

Bently Nevada 21000-16-10-00-120-04-02 Proximity Probe Housing Assemblie

The Bently Nevada 21000-16-10-00-120-04-02 is an aluminum proximity probe housing assembly designed for external mounting of reverse-mount proximity probes in demanding industrial environments. It offers protection, stability, and compliance with API 670 and CSA hazardous area certifications. This housing supports various probe configurations, lengths, and penetration options.

Technical Specifications

Applications

• Turbomachinery condition monitoring

• Power generation equipment

• Oil & gas machinery

• Chemical and refining plant rotating assets

• Compressors and large industrial pumps

• Hazardous environments requiring explosion-proof monitoring solutions

Product Advantages

• Compliant with API 670 standards

• CSA certified for hazardous areas (Class I, II, III)

• Modular design with selectable probe, cable length, standoff, and penetration options

• Durable aluminum housing with stainless steel sleeve

• Compatible with 3300 XL 8mm reverse-mount probes

• Reliable performance in harsh environments (up to 177°C)

• Ideal for installations with conduit fittings and protection requirements

Frequently Asked Questions (FAQ)

Q1: What probe type is compatible with the 21000-16-10-00-120-04-02 housing?

A1: It is designed for use with the 3300 XL 8mm reverse-mount proximity probe.

Q2: Is this housing explosion-proof?

A2: Yes, it is CSA-certified for Class I, II, and III Division 1 and 2 hazardous locations.

Q3: What is the housing material?

A3: The body is made of aluminum and the sleeve is 304 stainless steel.

Q4: What temperature range can this assembly handle?

A4: It operates between -51°C and +177°C.

Q5: Can this housing be used in intrinsically safe applications?

A5: Yes, it is suitable for intrinsically safe installations per CSA certification.

Q6: What is the weight of the 21000 housing?

A6: The typical weight is 1.1 kg without fittings.

Q7: What is the maximum allowable probe sleeve length?

A7: Probe sleeve lengths over 304 mm (12 in) require additional support.

Q8: Does this product comply with API standards?

A8: Yes, it complies with API 670 for externally mounted proximity probe housings.

Q9: Is it possible to order the unit with or without conduit fittings?

A9: Yes, fittings are optional and configurable per the order code.

Q10: Can the housing accommodate different mounting thread types?

A10: Yes, options include 3/4-14 NPT and other standard thread types.
