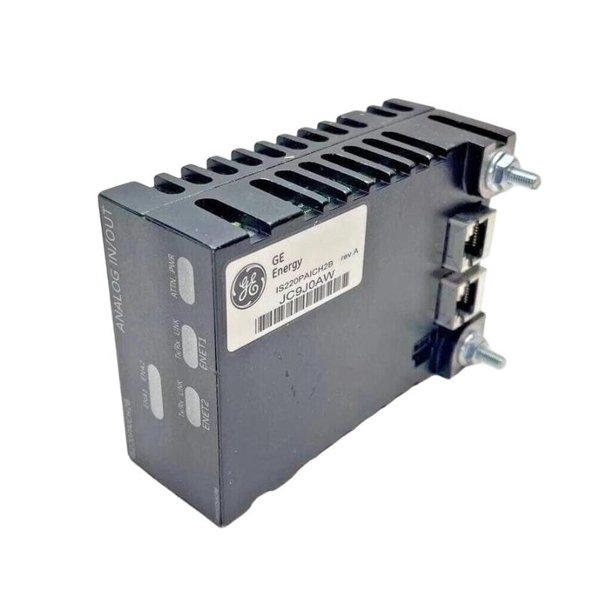

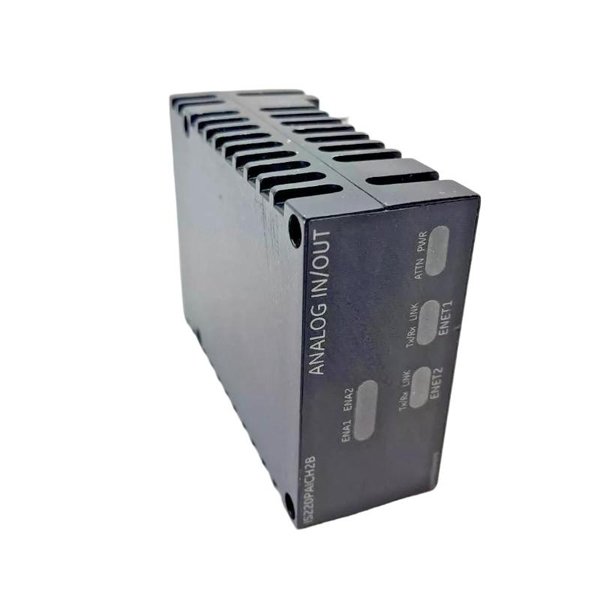

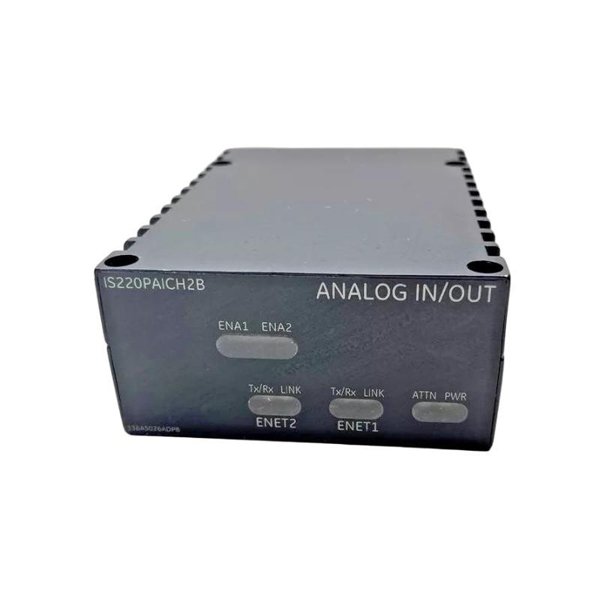

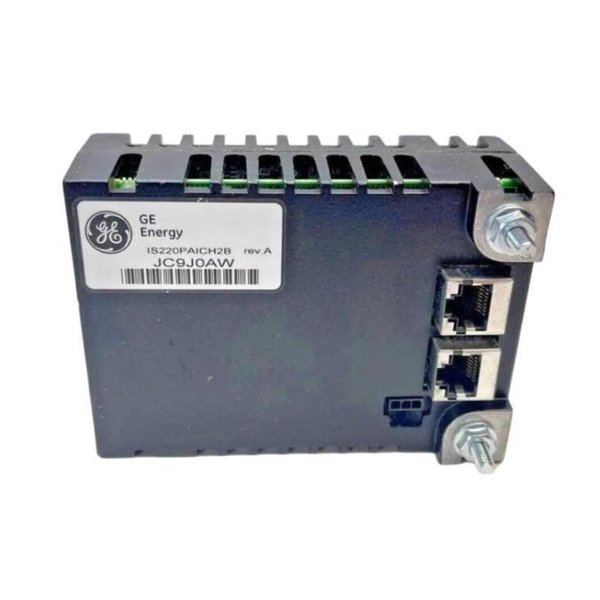

GE Fanuc IS220PAICH2B Analog Input/Output Modules
Manufacturer:GE Fanu
Product Number:IS220PAICH2B
Product Type:Analog Input/Output Modules
Origin:USA
Dimensions:122 x 82 x 60 mm
Weight:0.38 kg
Views:9
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The GE Fanuc IS220PAICH2B is an advanced Analog Input/Output (I/O) module designed for use in GE Mark VIe distributed control systems. It provides high-density analog signal processing capabilities, enabling reliable measurement and control of process variables such as temperature, pressure, and flow. The module features multiple configurable input and output channels, high accuracy, and integrated diagnostics, making it suitable for demanding industrial automation and turbine control applications.
Key Features
-
High-density analog input and output channels
-
Configurable for a wide range of process signals (voltage, current, RTD, thermocouple)
-
High accuracy and stability for critical process control
-
Integrated signal conditioning and diagnostics
-
Hot-swappable design for minimal system downtime
-
Seamless integration with GE Mark VIe systems
-
Rugged design for operation in harsh industrial environments
Technical Specifications
| Item | Specification |
|---|---|
| Model Number | IS220PAICH2B |
| Manufacturer | GE Fanuc |
| Product Type | Analog Input/Output Module |
| System Compatibility | GE Mark VIe Distributed Control Systems |
| Inputs | Up to 8 analog inputs (voltage, current, RTD, thermocouple) |
| Outputs | Up to 4 analog outputs (voltage/current configurable) |
| Input Range | ±10 VDC, 0–20 mA, 4–20 mA |
| Output Range | 0–20 mA, 4–20 mA, 0–10 VDC |
| Resolution | 16-bit |
| Power Supply | 28 VDC nominal (from backplane) |
| Operating Temperature | 0 °C to +65 °C |
| Storage Temperature | -40 °C to +85 °C |
| Dimensions | 122 x 82 x 60 mm |
| Weight | 0.38 kg |
| Mounting | VME rack-mounted |
| Compliance | CE, RoHS |
Industry Applications
-
Power Generation – turbine monitoring and control
-
Oil & Gas – wellhead and compressor station control
-
Petrochemical – process measurement and regulation
-
Industrial Automation – high-precision analog signal processing
-
Marine & Transportation – propulsion and energy management
Advantages
-
Flexible configuration for multiple signal types
-
High resolution and accuracy for precise measurements
-
Supports redundancy for enhanced system reliability
-
Hot-swappable for easier maintenance and reduced downtime
-
Designed for long-term performance in critical applications
Frequently Asked Questions (FAQ)
Q1: What is the main function of the IS220PAICH2B module?
It provides analog input and output channels for monitoring and controlling process variables in GE Mark VIe systems.
Q2: How many input and output channels does it support?
It supports up to 8 analog inputs and 4 analog outputs.
Q3: What types of signals can it process?
It can process voltage, current, RTD, and thermocouple signals.
Q4: What is the resolution of the module?
It features a 16-bit resolution for high-precision measurements.
Q5: Can it be hot-swapped?
Yes, the IS220PAICH2B supports hot-swapping for easier maintenance.
Q6: What is the operating temperature range?
The module operates between 0 °C and +65 °C.
Q7: Is this module compatible with redundancy configurations?
Yes, it supports redundant architectures for improved reliability.
Q8: How is it powered?
It is powered by a nominal 28 VDC supply from the backplane.
Q9: What mounting type is required?
It is designed for installation in a VME rack.
Q10: Which industries commonly use this module?
Power Generation, Oil & Gas, Petrochemical, Industrial Automation, and Marine.
