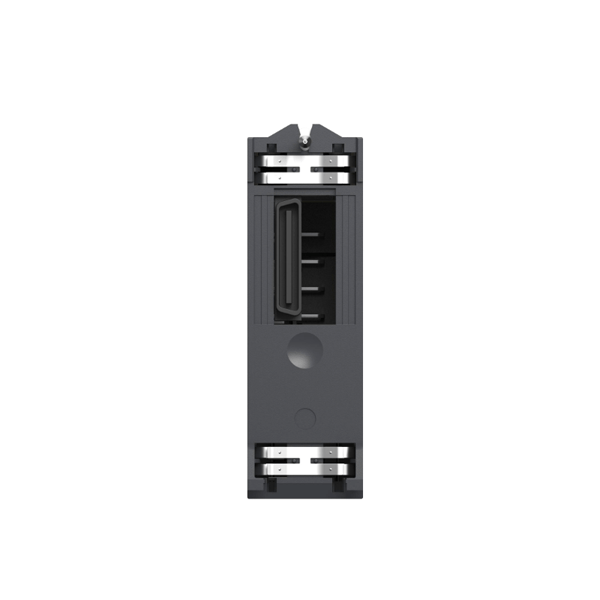

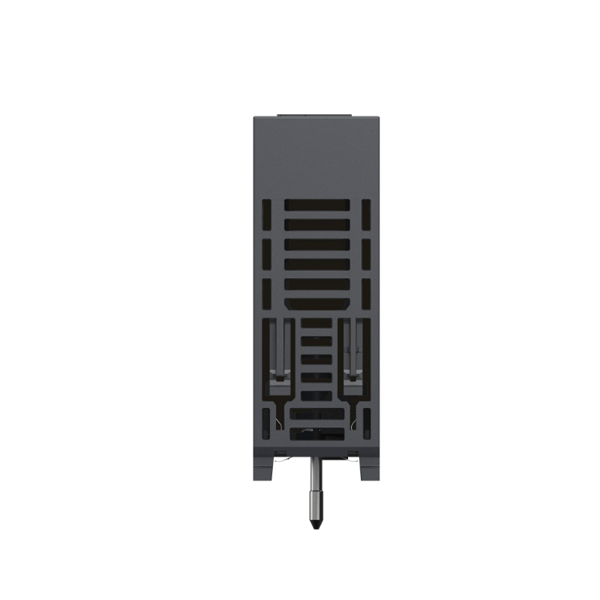

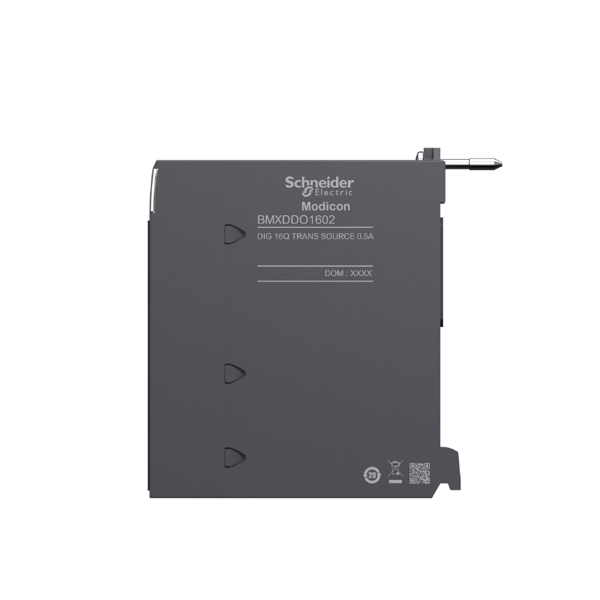

Schneider BMXDDO1602 Discrete Output Module

The Schneider BMXDDO1602 is a discrete output module designed for use with Modicon M340 PLC systems. This module features 16 digital outputs, operating at 24V DC, and is optimized for industrial automation applications that require reliable and high-speed output control.

The BMXDDO1602 module is fully compatible with Schneider Electric’s Modicon M340 and M580 series, making it an excellent choice for machine control, process automation, and building management systems. With its rugged design, high-speed switching, and protective features, it ensures long-term reliability in demanding environments.

Product Specifications

Applications

The Schneider BMXDDO1602 is widely used across multiple industries for automation and control purposes. Some key applications include:

• Manufacturing Automation – Controls actuators, solenoids, and motor starters in industrial production lines.

• Material Handling Systems – Operates conveyor belts, sorters, and automated storage systems.

• Process Control – Provides high-speed switching for chemical, food, and beverage industries.

• Building Automation – Used for HVAC systems, lighting control, and security automation.

• Energy Management – Controls relays and contactors in power distribution systems.

• Infrastructure & Transportation – Applied in railway signaling, tunnel ventilation, and traffic light control.

Advantages

• High-Speed Operation – Provides <1ms response time, ensuring real-time control.

• Compact and Modular Design – Saves space in control panels while being scalable for larger automation systems.

• Reliable Performance – Short-circuit and overload protection prevent system failures.

• Easy Integration – Fully compatible with Modicon M340 and M580 PLCs, reducing setup complexity.

• Industrial Durability – Operates in harsh environments with temperatures from -10°C to +60°C.

• LED Status Indicators – Real-time output channel monitoring simplifies troubleshooting.

• Flexible Output Configuration – Supports both sinking and sourcing configurations.

• Energy Efficient – Optimized power consumption, reducing overall system costs.

• Scalability – Easily expandable with additional I/O modules for growing industrial automation needs.

FAQ

1. What is the Schneider BMXDDO1602 module used for?

   • It is a discrete output module used to control digital actuators, relays, and motor starters in industrial automation.

2. What PLCs are compatible with BMXDDO1602?

   • It is compatible with Schneider Modicon M340 and M580 PLC series.

3. What type of output signals does this module support?

   • It supports 24V DC digital (discrete) outputs with sinking and sourcing configurations.

4. What is the maximum output current per channel?

   • The module supports up to 0.5A per output channel.

5. How is the module installed?

   • It is DIN rail mountable, making it easy to install in control panels.

6. Does BMXDDO1602 have built-in protection features?

   • Yes, it includes short circuit and overload protection for enhanced reliability.

7. What is the operating temperature range?

   • The module operates between -10°C to +60°C, making it suitable for industrial environments.

8. How much does the module weigh?

   • It weighs 0.12 kg.

9. Can I use this module in building automation applications?

   • Yes, it is widely used in HVAC systems, lighting control, and security automation.

10. How do I diagnose issues with the module?

• The module has LED indicators for each output, providing real-time status monitoring for easy troubleshooting.
