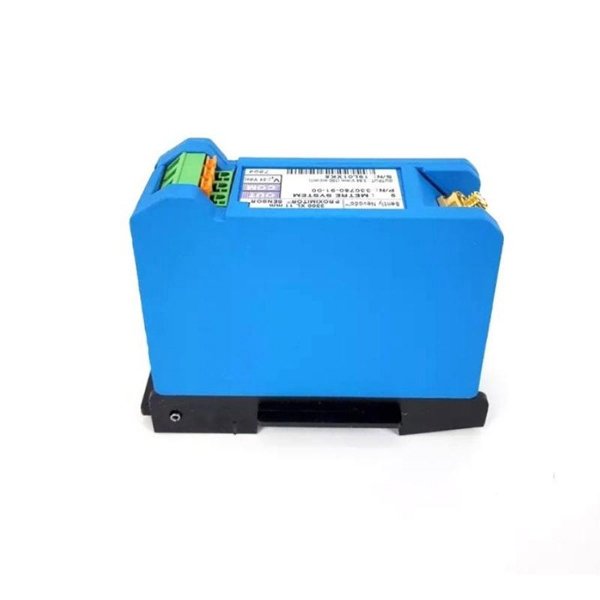

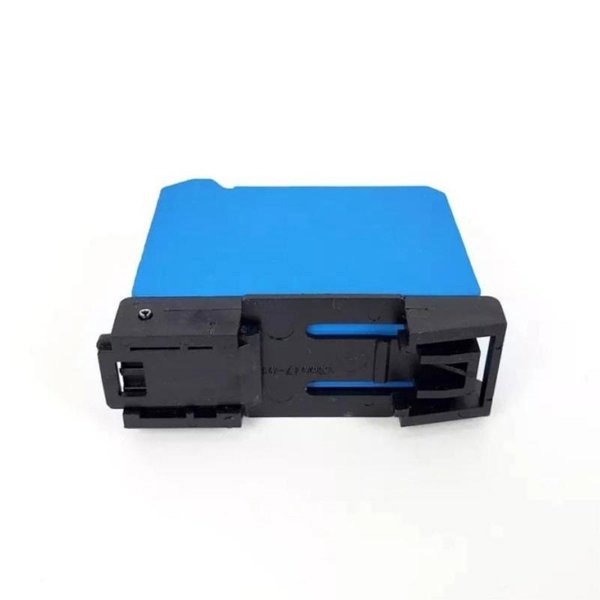

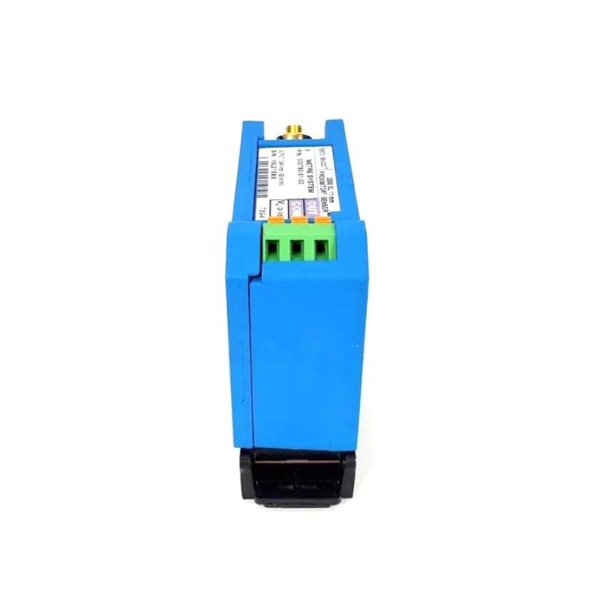

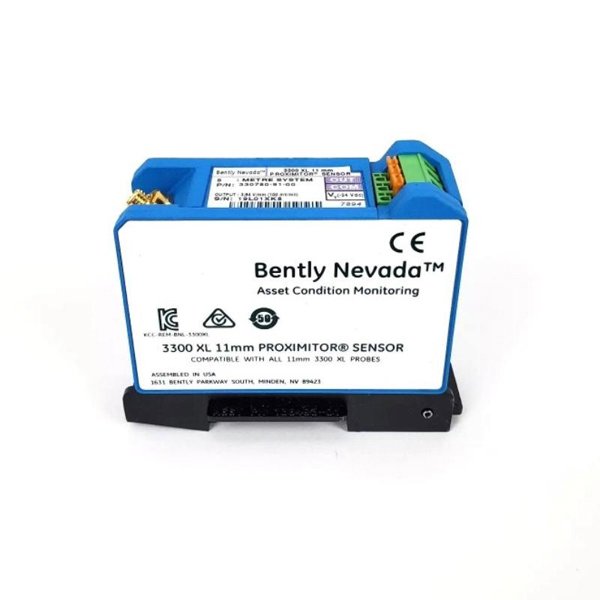

Bently Nevada 330780-91-00 3300 XL 11 mm Proximitor Sensor
Manufacturer:Bently Nevada
Product Number:330780-91-00
Product Type:3300 XL 11 mm Proximitor Sensor
Origin:USA
Total Length:9.0 meters
Weight:0.255 kg
Views:39
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330780-91-00 is part of the 3300 XL 11 mm Proximity Transducer System, designed for non-contact vibration and displacement measurements. It features a longer linear range than the standard 8 mm system, making it ideal for large shaft and thrust position applications.
Key Applications
-
Axial thrust position measurements
-
Rod position and rod drop on reciprocating compressors
-
Differential expansion on steam turbines
-
Zero speed and tachometer signal detection
-
Phase reference (Keyphasor) measurements
Product Advantages
-
Extended linear range (up to 4.0 mm typical, 5.0 mm extended)
-
High resistance to RFI/EMI interference
-
DIN-rail or panel mountable design
-
SpringLoc terminal strips for fast, tool-free wiring
-
Durable design with armored cable options
-
Enhanced environmental protection with connector protectors
Technical Specifications
| Parameter | Specification |
|---|---|
| System Model | 330780-91-00 |
| Output Scale Factor | 3.94 V/mm (100 mV/mil) |
| Linear Range | 0.5 to 4.5 mm (standard), 0.5 to 5.0 mm (extended) |
| Frequency Response | 0 to 8 kHz |
| Recommended Gap | 2.5 mm |
| System Length | 9.0 meters |
| Total Weight | 0.255 kg |
| Power Supply | -17.5 Vdc to -26 Vdc |
| Operating Temperature (Probe) | -52°C to +177°C |
| Operating Temperature (Sensor) | -52°C to +100°C |
| Humidity | 100% condensing, non-submersible |
| Housing Material (Sensor) | A380 Aluminum |
| Probe Case Material | AISI 304 Stainless Steel |
FAQ (Frequently Asked Questions)
Q1: What is the purpose of the 330780-91-00 Proximitor Sensor?
A1: It measures vibration and displacement without physical contact, ideal for rotating machinery.
Q2: What makes the 11 mm version different from the 8 mm version?
A2: It offers a longer linear range, suitable for applications requiring broader measurement gaps.
Q3: Can it be used in hazardous areas?
A3: Yes, it meets various hazardous area certifications, including ATEX and CSA approvals.
Q4: What mounting options are available?
A4: Both DIN-rail and panel mount options are supported.
Q5: Is it compatible with older 7200 series systems?
A5: No, all components must be upgraded to 3300 XL 11 mm, including configuration updates.
Q6: What is the system’s frequency response range?
A6: 0 to 8 kHz, suitable for most industrial vibration analysis applications.
Q7: What materials are used in the construction?
A7: It features stainless steel for the probe and aluminum for the sensor housing.
Q8: Can this sensor be used in wet environments?
A8: Yes, with connector protectors, it can handle 100% humidity (non-submersible).
Q9: What is the standard system length for the 330780-91-00?
A9: 9.0 meters including the extension cable.
Q10: What kind of output does the sensor provide?
A10: It delivers a voltage output proportional to displacement, at 100 mV/mil.
