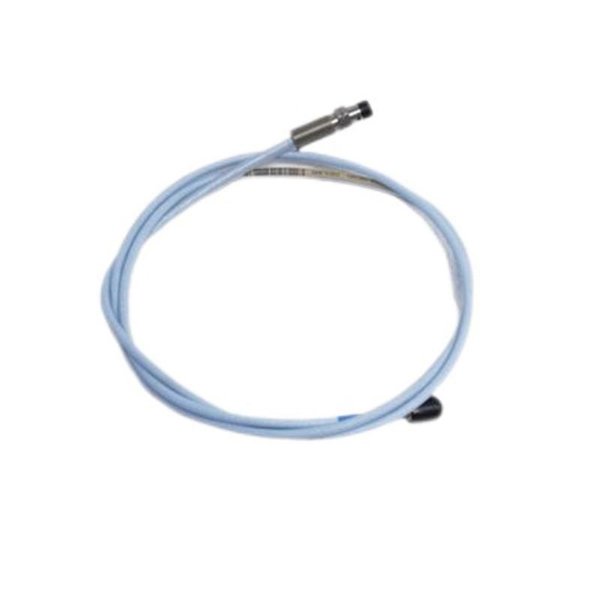

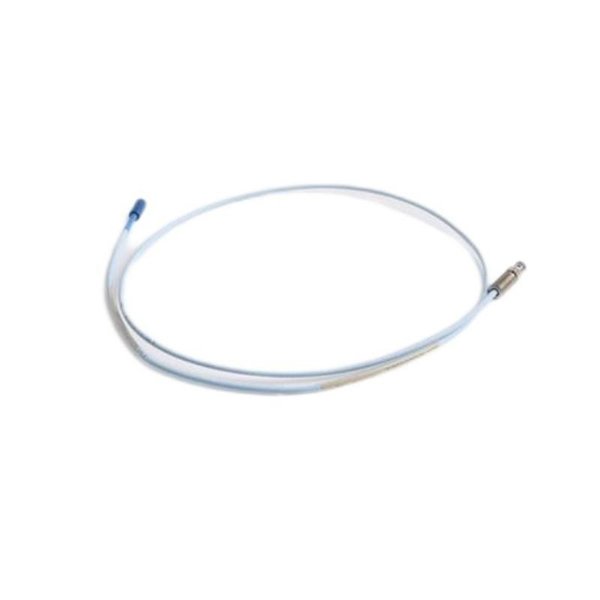

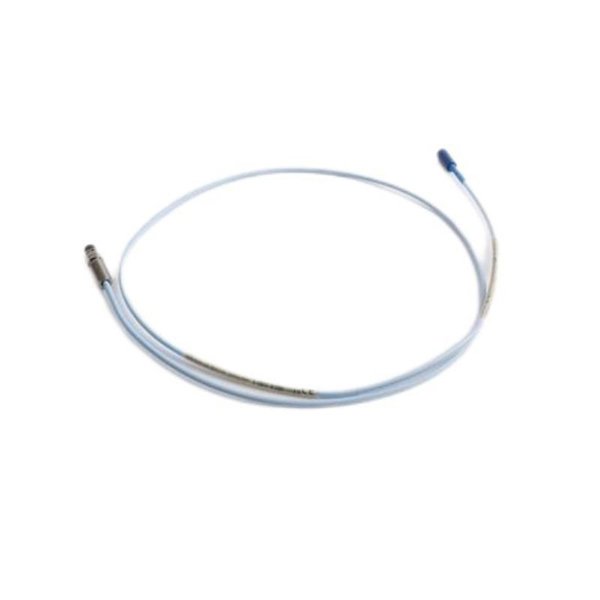

Bently Nevada 330106-05-30-10-02-CN 3300 XL 8 mm Proximity Probe

The Bently Nevada 330106-05-30-10-02-CN 3300 XL 8 mm Proximity Probe is a high-performance proximity sensor designed for precise vibration and displacement monitoring in rotating machinery. As part of the 3300 XL series, this probe is tailored for demanding industrial environments requiring accurate, real-time condition monitoring to prevent unexpected machinery failures.

Featuring an 8 mm sensing diameter, the probe employs robust construction with stainless steel and specialized components to ensure reliability under harsh conditions. The “CN” suffix indicates it includes a specialized connector suitable for certain applications or regional compliance. This model is ideal for power plants, oil & gas, petrochemical, and manufacturing industries.

Key Features

• 8 mm Diameter Sensing Element: Provides accurate displacement and vibration measurement.

• Robust Stainless Steel Construction: Ensures durability and corrosion resistance.

• Enhanced Connector Type: “CN” model features a region or application-specific connector for secure electrical interfacing.

• Wide Measurement Range: Capable of measuring displacement from 0.050 mm up to 10 mm.

• Sealed Design: Utilizes Viton® O-ring sealing for protection against contaminants and pressure differentials.

• High Temperature Operation: Suitable for environments ranging from -40°C to +120°C (-40°F to +248°F).

• Interchangeable Components: Compatible with other 3300 XL series probes without requiring individual calibration.

• Industry Compatibility: Integrates seamlessly with Bently Nevada 3300 XL monitoring systems and accessories.

Technical Specifications

Typical Applications

The Bently Nevada 330106-05-30-10-02-CN 3300 XL 8 mm Proximity Probe is ideal for continuous monitoring and diagnostics in:

• Power Generation: Monitoring turbines, generators, and motors to detect early mechanical faults.

• Oil & Gas Industry: Condition monitoring of pumps, compressors, and rotating equipment under harsh environments.

• Petrochemical Plants: Ensuring reliability and safety of critical rotating machinery.

• Manufacturing: Vibration and position monitoring of CNC machines, spindles, and production line equipment.

• Water Treatment: Monitoring pump and motor health to maintain uninterrupted operation.

• Mining & Metals: Providing vibration data on crushers, mills, and other heavy machinery.

• Speed and Position Measurement: Supports Keyphasor® and other speed monitoring applications.

Product Advantages

• Precision and Reliability: Provides highly accurate vibration and displacement data to support early fault detection.

• Durable Construction: Stainless steel body and robust tip materials withstand harsh industrial environments.

• Specialized Connector: The “CN” connector enhances connectivity options for specific applications or regional standards.

• Maintenance-Friendly: Interchangeable parts minimize downtime and simplify maintenance procedures.

• Sealed for Protection: Viton® O-ring ensures environmental sealing against contaminants and pressure differentials.

• Broad Application Range: Suitable for a wide variety of rotating machinery across multiple industries.

• Seamless Integration: Fully compatible with Bently Nevada 3300 XL system components.

Frequently Asked Questions (FAQ)

1. What does the “CN” suffix indicate in the model number?

   It refers to a specialized connector type designed for specific applications or regional compliance.

2. What is the measurement range of this proximity probe?

   It measures displacement from 0.050 mm up to 10 mm.

3. What materials are used in the probe’s construction?

   The case is stainless steel, and the probe tip is made of Polyphenylene sulfide (PPS).

4. What is the diameter of the probe tip?

   The probe features an 8 mm diameter sensing element.

5. What type of output does the probe provide?

   The probe outputs a voltage proportional to the distance from the target surface.

6. What is the operating temperature range?

   The probe operates reliably between -40°C and +120°C (-40°F to +248°F).

7. Is the probe compatible with other Bently Nevada 3300 XL system components?

   Yes, it is fully compatible and interchangeable with other 3300 XL probes and accessories.

8. How is the probe protected against environmental contamination?

   It uses a Viton® O-ring seal to protect against contaminants and pressure differentials.

9. What is the approximate weight of the probe?

   The probe weighs around 0.323kg.

10. What industries commonly use this model?

    It is widely used in power generation, oil & gas, petrochemical, manufacturing, water treatment, and mining.
