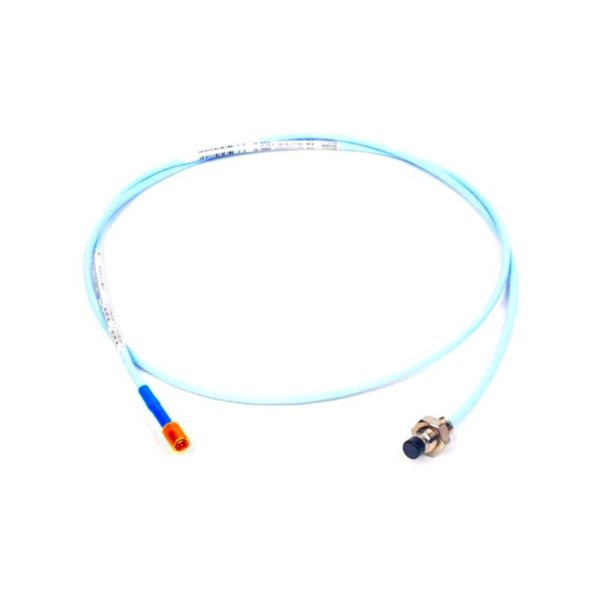

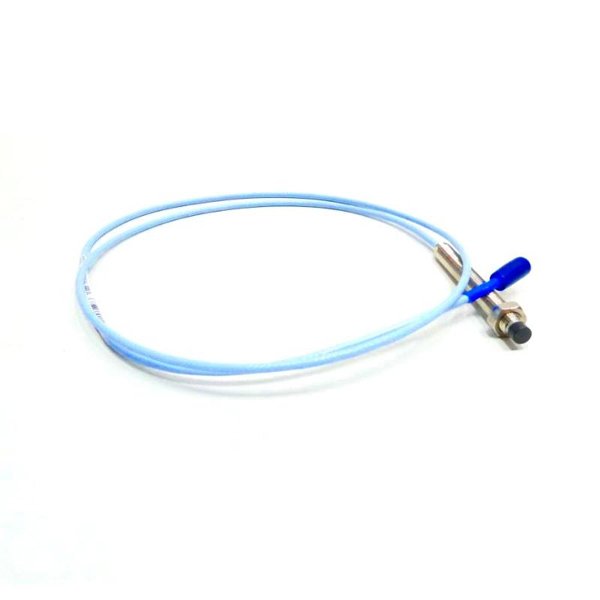

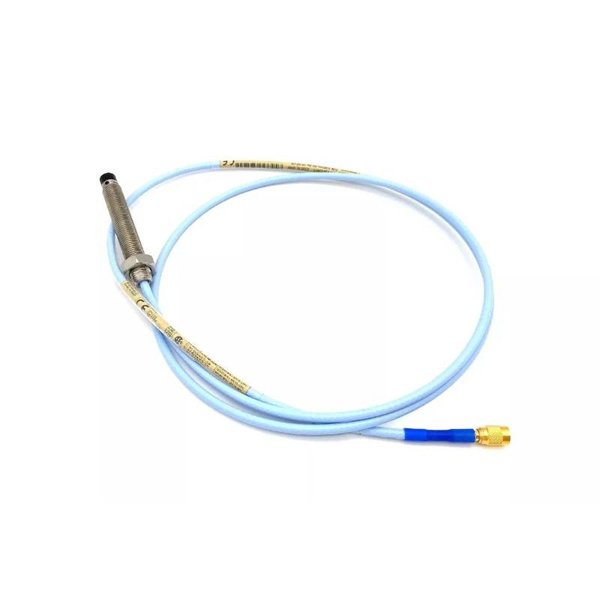

Bently Nevada 330101-36-80-10-02-00 3300 XL 8 mm Proximity Probe
Manufacturer:Bently Nevada
Product Number:330101-36-80-10-02-00
Product Type:
Origin:USA
Total Length:1.0 meter
Weight:0.323 kg
Views:57
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330101-36-80-10-02-00 is part of the 3300 XL 8 mm Proximity Transducer System. It provides a voltage output directly proportional to the distance between the probe tip and a conductive surface, enabling precise vibration and position measurements. This model is widely used in monitoring fluid-film bearing machines, as well as for Keyphasor reference and speed measurements. It is robust, interchangeable, and compliant with API 670 standards.
Applications
-
Vibration monitoring of rotating machinery
-
Shaft position measurements
-
Overspeed and Keyphasor signal generation
-
Suitable for harsh industrial environments
-
Fluid-film bearing machine diagnostics
Advantages
-
Fully interchangeable components (probes, cables, sensors)
-
Compliant with API 670 mechanical and performance standards
-
Extended temperature range options available
-
Enhanced resistance to RFI/EMI
-
Ruggedized probe design with improved cable sealing
Technical Specifications
| Parameter | Specification |
|---|---|
| Total Length | 1.0 meter (3.3 ft) |
| Weight | 0.323 kg (11.4 oz) |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Case Material | Stainless Steel (AISI 303/304) |
| Cable Type | 75 Ω triaxial, FEP insulated |
| Temperature Range (Probe) | -52°C to +177°C (-62°F to +350°F) |
| Linear Range | 0.25 mm to 2.3 mm (10–90 mils) |
| Frequency Response | 0 to 10 kHz |
| Recommended Shaft Diameter | ≥76.2 mm (3 in) |
| Output Scale Factor | 7.87 V/mm ±5% |
FAQ
Q1: What is the main use of this proximity probe?
A1: It measures vibration and position of rotating machinery shafts.
Q2: Is it compatible with older 3300 series components?
A2: Yes, it is backward compatible and interchangeable.
Q3: What is the operating temperature limit?
A3: Standard probe operates from -52°C to +177°C.
Q4: Can the probe be used in hazardous areas?
A4: Yes, it has CSA, ATEX, and IECEx approvals for hazardous areas.
Q5: Does the probe require calibration?
A5: It comes factory-calibrated to AISI 4140 steel, no field calibration required.
Q6: How resistant is it to electromagnetic interference?
A6: It offers high immunity to RFI/EMI, suitable for industrial environments.
Q7: What is the recommended gap setting?
A7: Approximately 1.27 mm (50 mils) corresponding to -9 VDC.
Q8: Are connector protectors included?
A8: They are available as an option and recommended for environmental protection.
Q9: Can this probe work with an extended temperature range cable?
A9: Yes, it supports ETR cables for higher temperature applications.
Q10: What is the tensile strength of the cable connection?
A10: It can withstand up to 330 N (75 lbf) at the probe body connection.
