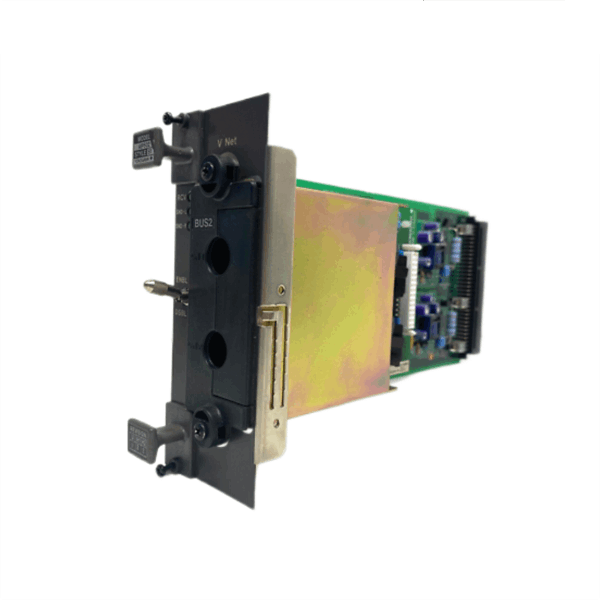

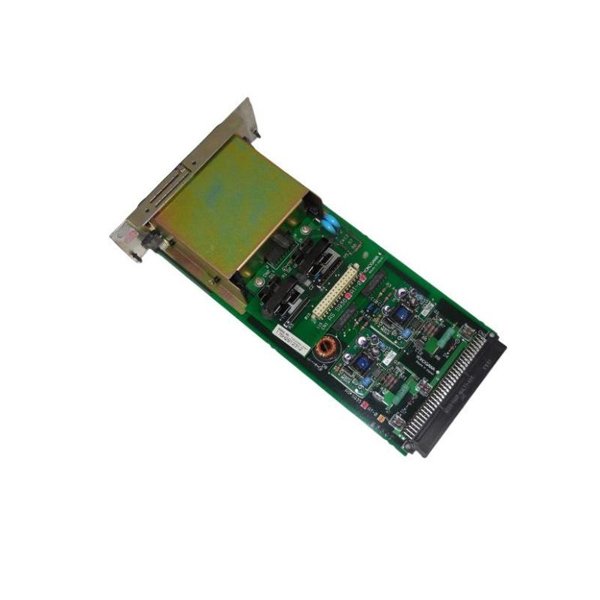

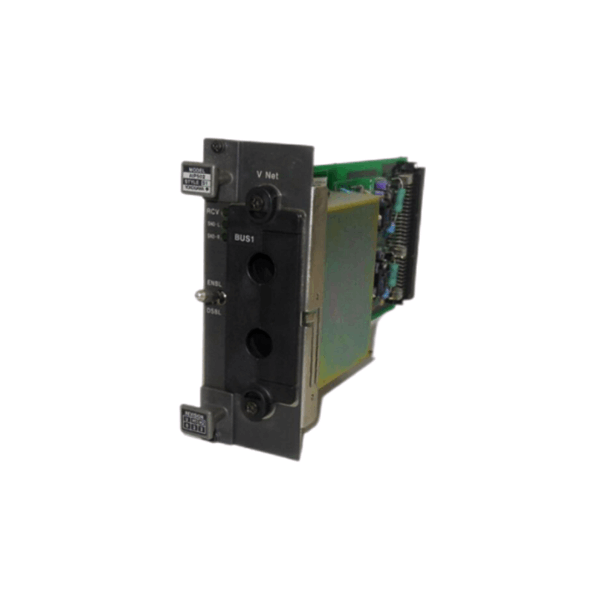

Yokogawa AIP502 V net transceiver control unit

This module is engineered with high-density channel configuration, enhanced diagnostics, and plug-and-play compatibility with Yokogawa’s Vnet/IP architecture. It plays a pivotal role in converting field analog signals (such as 4-20 mA) into digital data for use within process control strategies.

Technical Specifications

Product Applications

The AIP502 is suited for a wide range of applications, particularly in industrial automation and process control systems that require robust analog signal acquisition. Common use cases include:

• Oil & Gas: Real-time measurement of pressure, temperature, and flow.

• Chemical & Petrochemical Plants: Monitoring reactor conditions and process streams.

• Power Generation: Turbine and boiler instrumentation.

• Water Treatment: pH and turbidity sensor input processing.

• Pharmaceuticals: Precision control of environmental parameters in production.

Product Advantages

1. High Channel Density: With 32 analog input channels, the AIP502 allows for compact system configuration and lower installation cost.

2. Superior Signal Integrity: Built-in 16-bit A/D converters and input filtering ensure precise and stable signal acquisition.

3. Advanced Diagnostics: Self-checking features and signal range monitoring help detect issues early, improving system reliability.

4. Robust Isolation: Each channel is isolated from others and from ground, minimizing interference and ground loop issues.

5. Flexible Signal Handling: Capable of processing both current and voltage signals, increasing versatility.

6. System Integration Ready: Seamlessly connects with Yokogawa’s Vnet/IP and CENTUM VP for efficient DCS integration.

7. Reliable in Harsh Conditions: Wide operating temperature range and compliance with industrial standards ensure performance under demanding environments.

FAQs

Q1: What type of signals can the AIP502 accept?

A1: The AIP502 can handle 4–20 mA current signals, 1–5 V voltage signals, and thermocouple inputs with external conversion, making it adaptable to a variety of field sensors.

Q2: How many analog channels does it support?

A2: It supports 32 analog input channels per module, allowing for efficient space usage in high-density applications.

Q3: Is there channel-to-channel isolation?

A3: Yes, each channel is isolated individually, which protects the module from cross-interference and improves safety.

Q4: What diagnostic functions are available?

A4: The module offers channel failure detection, out-of-range monitoring, and internal self-diagnostics to ensure system reliability.

Q5: Can it be used in hazardous areas?

A5: With appropriate certification options like ATEX and CSA, the AIP502 can be used in hazardous environments when installed properly.

Q6: What is the accuracy level of the module?

A6: The AIP502 typically offers ±0.1% of span accuracy, making it highly reliable for precise measurements.

Q7: What is the power consumption of the module?

A7: It consumes approximately 6.0 watts of power, which is efficiently managed through the system backplane.

Q8: Is the AIP502 hot-swappable?

A8: Yes, the design supports module replacement without shutting down the entire system, reducing downtime.

Q9: Does it support integration with non-Yokogawa systems?

A9: While optimized for Yokogawa DCS, the signal characteristics allow indirect integration with third-party systems using standard signal converters.

Q10: How is the module mounted?

A10: The AIP502 is installed on an I/O base plate, which connects it electrically and mechanically within the cabinet.
