Bently Nevada 3500/94M 120M8155-01 10 inches Touch Screen Display

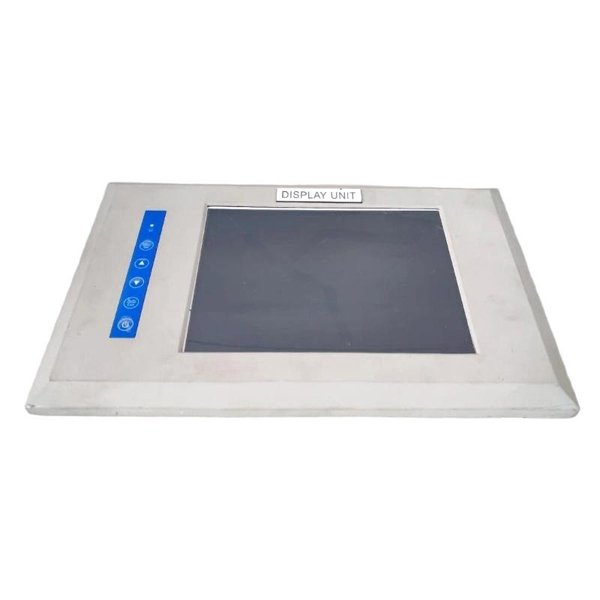

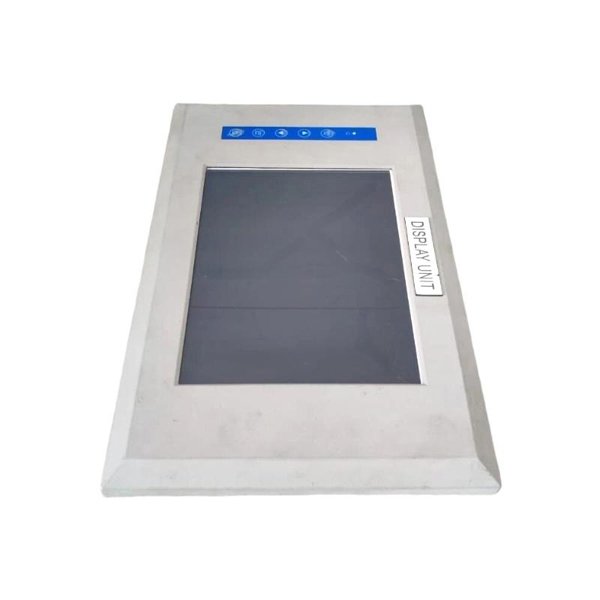

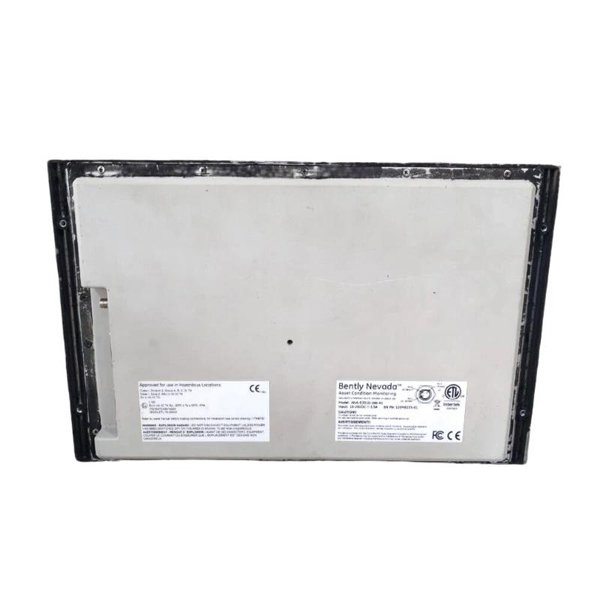

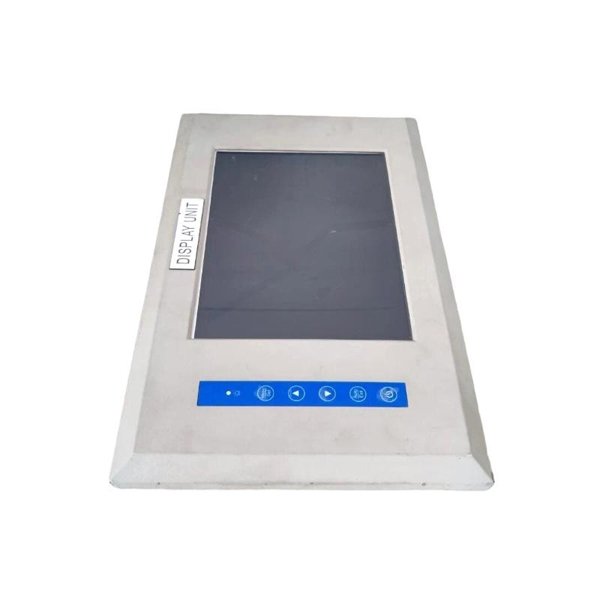

The Bently Nevada 3500/94M 120M8155-01 Touch Screen Display is a high-performance operator interface module designed for the Bently Nevada 3500 Machinery Protection System. Featuring a 10-inch industrial-grade touch screen, it provides operators with intuitive access to real-time machinery data, alarm conditions, and system configuration.

As part of the 3500 series, the 3500/94M acts as a centralized visualization point, ensuring operators can quickly monitor and diagnose machinery health. With its rugged design, high-resolution display, and user-friendly interface, the module enhances plant reliability and simplifies condition monitoring of rotating and reciprocating machinery.

Product Specifications

Product Applications

The 3500/94M Touch Screen Display is primarily deployed in industrial environments where machinery condition must be monitored in real time. Typical applications include:

• Oil & Gas Industry – Monitoring compressors, turbines, and pumps in offshore and onshore facilities.

• Petrochemical Plants – Providing local visualization of machinery conditions to operators in critical process areas.

• Power Generation – Used in thermal, hydro, and nuclear power plants for quick monitoring of rotating machinery.

• Marine and Offshore – Installed in engine control rooms for machinery health visualization in vessels and rigs.

• Heavy Industrial Operations – Providing operators with at-a-glance access to alarms and machinery diagnostics.

• Pulp & Paper and Mining – Ensuring reliable operation of large rotating assets.

Product Advantages

• Intuitive User Interface – Simplifies system monitoring with touch-based navigation and real-time data access.

• Centralized Monitoring – Displays data from all modules in the 3500 rack for a complete view of machinery health.

• Clear Alarm Visualization – Provides immediate visibility of Alert and Danger conditions, reducing operator response time.

• High Reliability – Built for harsh industrial environments with rugged design and long operating life.

• Flexible Data Display – Supports trend plots, bar graphs, alarm lists, and system status information.

• Seamless Integration – Connects directly to the 3500 rack via backplane and Ethernet.

• Improved Operator Efficiency – Eliminates the need for separate external HMIs in many applications.

• Reduced Downtime – Enables faster diagnosis of machinery issues, supporting predictive maintenance strategies.

FAQ

1. What is the display resolution of the 3500/94M?

   It provides 1024 × 768 pixel XGA resolution.

2. Which communication interfaces are supported by this display?

   The display communicates via the 3500 rack backplane and Ethernet.

3. Does the display support alarm visualization?

   Yes, it provides visual indicators for both Alert and Danger alarms.

4. Can operators access trend and historical data?

   Yes, the display supports real-time trend plots and historical alarm review.

5. Is the touch screen industrial grade?

   Yes, it uses a rugged resistive touch screen suitable for industrial environments.

6. How does the display receive its power?

   Power is supplied directly from the 3500 rack power system.

7. What types of data can the display present?

   It shows machine vibration, temperature, rod position, process variables, and alarm status.

8. Is the 3500/94M compatible with all 3500 modules?

   Yes, it is designed to display data from any module within the 3500 rack system.

9. Can it be configured for multilingual support?

   Yes, the interface supports multiple languages for global deployment.

10. Does the 3500/94M support remote monitoring?

    While the unit itself is a local display, remote access can be enabled via Ethernet connectivity with the 3500 System.
